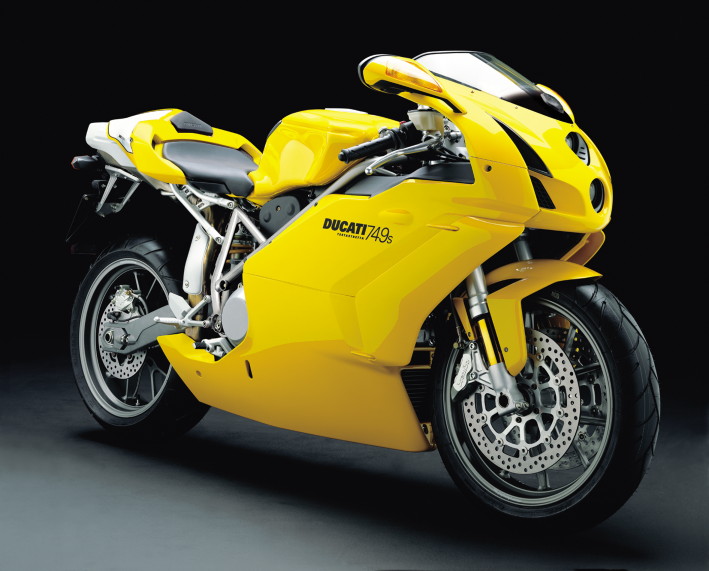

2004 Ducati 749S

Ducati 749

  • Engine Type - L twin cylinder, 4 valve Testastretta Desmodromic, liquid cooled
  • Displacement - 748cc
  • Bore and stroke - 90 x 58.8 mm
  • Compression Ratio - 12,3:1
  • Power - 81 kW - 110 HP @ 10500 rpm
  • Torque - 78 Nm - 7,95 Kgm @ 8500 rpm
  • Fuel injection - Marelli Electronic Fuel Injection, 54 mm throttle body
  • Exhaust - Exhaust system with single steel muffler, with catalytic converter
  • Emissions - Euro 2
  • Gearbox - 6 speed
  • Ratio - 1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23, 6th 23/24
  • Primary drive - Straight cut gears; ratio 1.84
  • Final drive - Chain; Front sprocket 14; Rear sprocket 38
  • Clutch - Dry multiplate with hydraulic control
  • Frame - Tubular steel trellis frame
  • Wheelbase - 55.9 in / 1420 mm
  • Rake - 23.5 - 24.5
  • Steering angle - 28.5 right and left
  • Front suspension - Showa 43 mm fully adjustable upside-down fork with Tin
  • Front wheel travel - 4.9 in / 125 mm
  • Front wheel - 5 spoke Y light alloy 3.50 x 17
  • Front tyre - 120/70 ZR 17
  • Rear suspension - Progressive linkage with fully adjustable Showa monoshock
  • Rear wheel travel - 5.0 in / 128 mm
  • Rear wheel - 5 spoke Y light alloy 5.50 x 17
  • Rear tyre - 180/55 ZR 17
  • Front Brake - 2 x 320 mm semi-floating discs, 4-piston 4-pad caliper
  • Rear Brake - 240 mm disc, 2-piston caliper
  • Fuel capacity - 15.5 l (3 l reserve) / 4.1 U.S. gal (0.8 U.S. gal reserve)
  • Weight - 439 lbs / 199 Kg
  • Seat height - 30.7 in / 780 mm
  • Max height - 42.9 in / 1090 mm
  • Max length - 82.5 in / 2095 mm
  • Instruments -LCD, speedometer, rev counter, high beam indicator, turn signals, warning light for low oil pressure, fuel level, warning light for neutral, water temperature, immobilizer.
  • Warranty - 2 years unlimited mileage
