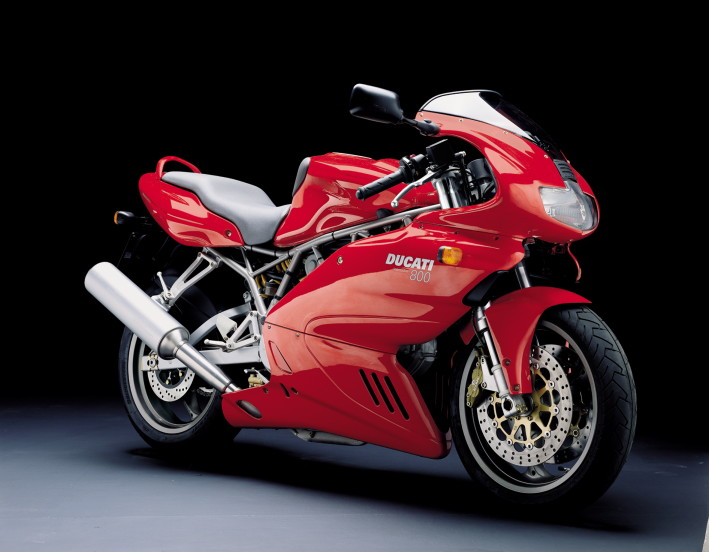

2004 Ducati SS800

Ducati SS800

  • Engine Type - L-twin cylinder, 2 valves per cylinder Desmodromic, air-cooled
  • Displacement - 803cc
  • Bore and stroke - 88 x 66 mm
  • Compression Ratio - 10.5:1
  • Power - 54,8 kW - 74,5 HP @ 8250 rpm
  • Torque - 70 Nm - 7,1 Kgm @ 6250 rpm
  • Fuel injection - Marelli electronic fuel injection, 45 mm throttle body
  • Exhaust - 2 aluminium mufflers with 3-way catalytic converter (non-catalytic for USA version)
  • Emissions - Euro 2 - (except USA version)
  • Gearbox - 6 speed
  • Ratio - 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
  • Primary drive - Straight cut gears; ratio 1.85
  • Final drive - Chain; Front sprocket 15; Rear sprocket 39
  • Clutch - Wet multiplate with hydraulic control
  • Frame - Tubular steel trellis frame
  • Wheelbase - 55.3 in / 1405 mm
  • Rake - 24
  • Steering angle - 28 right and left
  • Front suspension - Marzocchi 43 mm upside-down fork
  • Front wheel travel - 5.4 in / 136 mm
  • Front wheel - 3-spoke light alloy 3.50 x 17
  • Front tyre - 120/70 ZR 17
  • Rear suspension - Progressive cantilever linkage with fully-adjustable Sachs monoshock. Steel swingarm
  • Rear wheel travel - 5.8 in / 148 mm
  • Rear wheel - 3-spoke light alloy 5.50 x17
  • Rear tyre - 170/60 ZR 17
  • Front Brake - 2 x 320 mm semi-floating discs, fixed 4-piston calipers
  • Rear Brake - 245 mm disc, 2-piston caliper
  • Fuel capacity - 4.2 US gal (of which 1 US gal reserve) 16 l (of which 4 l reserve)
  • Weight - 409,3 lbs / 185,4 Kg
  • Seat height - 32.1 in / 815 mm
  • Max height - 43.7 in / 1110mm
  • Max length - 79.9 in / 2030 mm
  • Instruments - Electronic panel: speedometer, rev counter, warning light for low oil pressure, high beam indicators, turn signals, fuel level, immobilizer, LCD for clock and oil temperature, LCD odometre and trip metre.
  • Warranty - 2 years unlimited mileage
