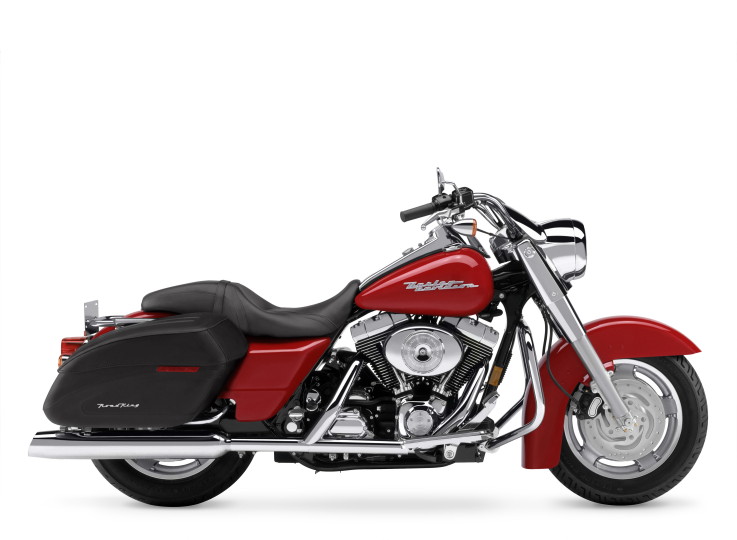

2004 Harley FLHRSI Road King Custom
The new FLHRSI Road King Custom is smooth and lean,
with more than a little dose of the California beach
look. To achieve a longer, laid-back look, the rear
suspension was lowered. All trim was removed from
the front and rear fenders to give them a smooth,
clean appearance that compliments the new Smoothie
leather-covered saddlebags and matching seat. Instead
of a windshield, the Road King Custom sports a new
triple-clamp cover and a chrome wind deflector. The
finishing touch is a wide, pull-back Beach Bar handlebar.
Other features include new chrome slotted alloy wheels,
new Electro-formed, nickel-plated tank badges, a stretch
fuel tank console with a new silver-faced speedometer,
bullet front and rear turn signals, a new chrome sculpted
light-bar, Streamliner footboards, passenger pegs
and brake pedal. Electronic fuel injection is standard
on this model.
FLHRSI Road King Custom features:
- Vibration-isolated 1450cc Twin Cam 88 engine
- Black powder-coated engine with chrome covers
- Chrome wind deflector
- Pullback Beach Bar handlebars
- Nickel-plated Harley-Davidson tank emblem
- Large, silver-faced speedometer in stretch chrome
console
- Cast and chrome alloy wheels
- Streamliner footboards, passenger pegs and brake
pedal
- Smoothie leather-covered saddlebag; no visible
saddlebag guards
- Clean front and rear fenders
- Slash-cut mufflers
- Triple disc brakes
- Low-profile, air-adjustable rear suspension
Specifications -FLHRSI Road King Custom
- Length - 2440 mm
- Seat Height (measure laden w/ 81.7kg rider) -
663 mm
- Ground Clearance - 129.5 mm
- Rake - 26 degrees
- Trail - 157.5 mm
- Wheelbase - 1592 mm
- Tyres: Dunlop Harley-Davidson Series - Front -
D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
- Fuel Capacity - 18.9 L
- Reserve Fuel Capacity - 3.4 L
- Oil Capacity - 3.8 L
- Dry Weight - 332 kg
- Engine - 45º Air-cooled Twin Cam 88® (vibration
isolation-mounted)
- Valves - Pushrod-operated overhead valves; w/
hydraulic self-adjusting lifters; two valves per
cylinder
- Bore x Stroke - 95.3 x 101.6 mm
- Displacement - 1449cc
- Compression Ratio - 8.8:1
- Fuel System - Electronic Sequential Port Fuel
Injection (ESPFI)
- Primary Drive - Double row chain, oil bath, mechanical
tensioner, 36/25 ratio
- Final Drive Gates - carbon fiber reinforced polychain
belt, 32/70 ratio
- Clutch - 9-Plate,wet
- Transmission - Five-speed
- Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd -
4.95, 4th - 3.87, 5th - 3.15
- Frame - Mild steel, rectangular section backbone
w/ twin down-tubes
- Swing Arm - Conventional, rectangular
- Front Fork - Telescopic
- Rear Shocks - Air-adjustable
- Wheels 16 in. front, 16 in. rear, chrome plated/silver
slotted cast aluminium alloy
- Brakes: Caliper Type Four-piston front and rear
- Rotor Type (diameter x width): Patented, Uniform
Expansion Rotors - Front (DUAL) 292.1 mm x 5.08
mm, Rear 292.1 mm x 5.84 mm
- Suspension travel: Front 117 mm, Rear 76 mm
- Engine Torque (per 95/1/EC)2: 109 Nm@3400 rpm
- Lean Angle (per SAEJ1168): Right 31 degrees, Left
30 degrees
- Battery - Sealed, maintenance-free, 12-volt, 30
amp-hour, 270 cca (per Battery Council International
rating)
- Charging: 37-amp permanent magnet alternator w/
solid-state regulator (481 watts @ 3000 rpm; 494
watts peak)
- Starting - 1.2 kw electric w/ Bendix-type engagement
- Lights: (As per country regulation)
- Headlamp - Quartz halogen, 55-watt low beam, 60-watt
high beam
- Tail/stop lights - 5w/21w
- Turn signal lights (self-canceling) - 21w - Indicator
lamps High beam, neutral, oil pressure, engine diagnostic
light, turn signals, low fuel warning and security
system
Styling
- Engine Trim - Black powdercoated w/ chrome covers
- Exhaust System Chrome crossover duals
- Ignition Tank - console-mounted
- Seat - Custom solo saddle w/ removable passenger
pillion
- Foot Supports - Full-length operator floor boards
w/ heel-toe shifter lever
- Windshield - Chrome visor
- Instruments Electronic speedometer w/ odometer
and resettable tripmeter; fuel gauge w/ low fuel
light. Cruise Control Wired to accept cruise control.
Handlebar Controls Start; engine cutoff; L/R turn
signals; horn; hi/low beam. Hazard Warning Integrated
w/ turn signal controls. Electrical Power Outlet
4-pin accessory connector beneath seat. Saddlebags
Fiberglass w/ hinged lid and chrome slant latches,
volume: 36L per bag. Luggage Locks Saddlebag barrel
key, common w/ ignition. Fork Lock Barrel key, common
w/ ignition
- Colours - Vivid Black, Brilliant Silver, Luxury
Blue, Smokey Gold
- Warranty - 24 months (unlimited mileage)
- Service Interval - First 1,600 Km; every 8,000
Km thereafter.
|
