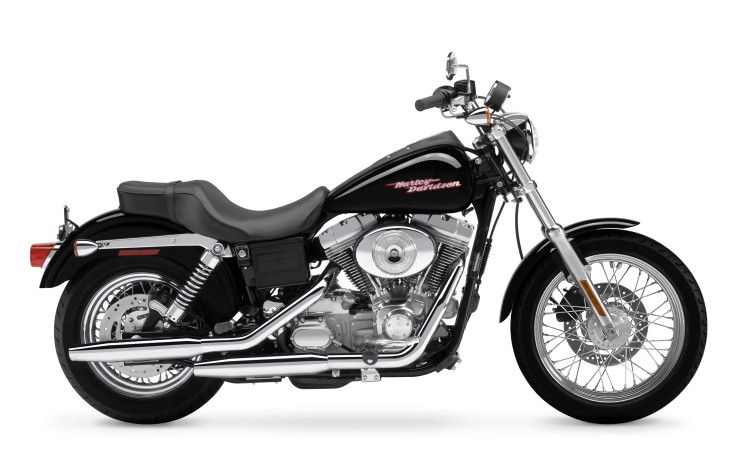

2004 Harley FXDI Dyna Super Glide

Harley FXDI Dyna Super Glide

An outstanding value, the FXDI Super Glide is priced to make extensive customisation an affordable option. Its traditional custom styling offers a clean canvas on which the owner can exercise his or her imagination with Harley- Davidson Genuine Parts and Accessories. Of course, you can just enjoy it the way we built it.

FXDI Dyna Super Glide features:

  • Vibration-isolated Twin Cam 88 engine
  • Silver powder-coated engine and polished covers
  • Top-mounted speedometer
  • New style fuel tank and console

Specifications - FXDI Dyna Super Glide

  • Length - 2307 mm
  • Seat Height (measure laden w/ 81.7kg rider) - 673 mm
  • Ground Clearance - 137.2mm
  • Rake - 28 degrees
  • Trail - 104.1 mm
  • Wheelbase - 1595 mm
  • Tyres: Dunlop Harley-Davidson - Front - D401 100/90-19 57H, Rear - D401 150/80B16 71H
  • Fuel Capacity - 17.8 L
  • Reserve Fuel Capacity - 3.4 L
  • Oil Capacity - 2.8 L
  • Dry Weight - 290 kg
  • Engine - 45 Air cooled Twin Cam 88 (vibration isolation-mounted)
  • Valves - Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
  • Bore x Stroke - 95.3 x 101.6 mm
  • Displacement - 1449 cc
  • Compression Ratio - 8.8:1
  • Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
  • Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
  • Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
  • Clutch - Multi-plate, wet
  • Transmission - Five-speed
  • Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th 3.15
  • Frame - Mild steel, rectangular section backbone w/ twin down-tubes
  • Swing Arm - Mild steel, rectangular section
  • Front Fork - 39 mm w/ polished aluminum fork triple clamp and dual-rate springs
  • Rear Shocks - Coil-over w/ adjustable spring preload
  • Wheels - 19-inch laced front, 16-inch rear laced
  • Brakes: Caliper type Four-piston front and rear
  • Rotor type (diameter x width): Patented, Uniform Expansion Rotors - Front 292.1 mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
  • Suspension travel: Front wheel 155 mm, Rear wheel 110 mm
  • Engine Torque (per 95/1/EC) - 102 Nm@3400 rpm
  • Lean Angle (per SAEJ1168): Right 31 degrees, Left 32 degrees
  • Battery - Sealed 12-volt, 19 amp-hour, 270 cca (per Battery Council International rating)
  • Charging - 28-amp permanent magnet alternator w/ solid-state regulator (364 watts @ 3,000 rpm, 416 watts peak
  • Starting - 1.2 kw electric w/ Bendix-type engagement
  • Lights: (As per country regulation)
  • Headlamp - Quartz halogen 55-watt low beam, 60-watt high beam
  • Tail/stop lights - 5w/21w
  • Turn signal lights (self-canceling) - 21w - Indicator lamps High beam, neutral, oil pressure, engine diagnostic light, turn signals and security system

Styling

  • Engine Trim - Silver powdercoated w/ polished aluminum covers
  • Exhaust System - Staggered chrome shorty duals
  • Oil tank - Under-transmission
  • Ignition - Right side under seat
  • Front Fender - Sport-style w/ painted brace
  • Rear Fender - Sport wrap-around w/ chrome supports
  • Seat - One-piece rider and passenger accommodations
  • Instruments - Electronic speedometer w/ odometer and resettable tripmeter; fuel gauge
  • Fork Lock - Barrel key, key common w/ ignition
  • Colours - Vivid Black, Brilliant Silver, Sierra Red, Impact Blue
  • Warranty - 24 months (unlimited mileage)
  • Service Interval - First 1,600 Km; every 8,000 Km thereafter.
