2004 Harley FXDWGI Dyna Wide Glide

Harley FXDWGI Dyna Wide Glide

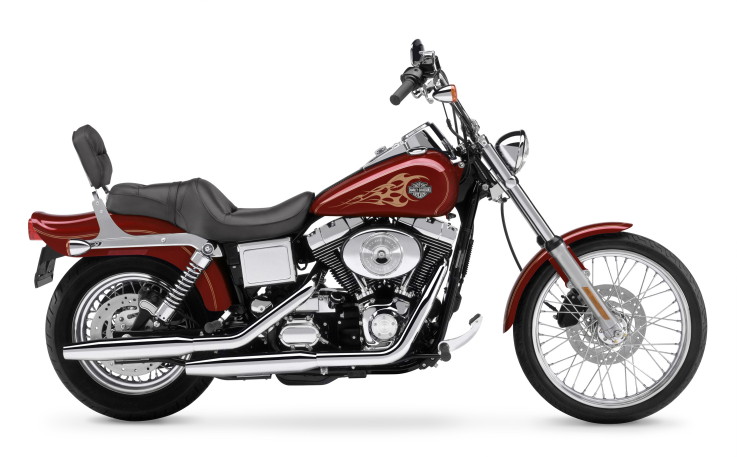

The FXDWGI Dyna Wide Glide is a practical interpretation of the classic California custom chopper, from its raked fork and laced, 21 inch front wheel to the Bobtail rear fender and stepped seat with sissy bar. The new style fuel tank and console greatly enhance the look of the 2004 model.

FXDWGI Dyna Wide Glide features:

  • Vibration-isolated Twin Cam 88 engine
  • Black powder-coated engine with chrome covers
  • Wide, raked-out fork
  • 21 inch laced front wheel
  • Ape-hanger handlebar
  • Bobtail rear fender
  • Stepped, chopper seat
  • Chrome sissy bar with backrest
  • Forward foot controls
  • Large, tank-mounted speedometer

Specifications - FXDWGI Dyna Wide Glide

  • Length - 2365 mm
  • Seat Height (measure laden w/ 81.7kg rider) - 680 mm
  • Ground Clearance - 137.2 mm
  • Rake - 32 degrees
  • Trail - 129.5 mm
  • Wheelbase - 1665 mm
  • Tyres: Dunlop Harley-Davidson Series - Front - D402F MH90-21 54H, Rear - D401 150/80B16 71H
  • Fuel Capacity - 19.3 L
  • Reserve Fuel Capacity - 4.2 L
  • Oil Capacity - 2.8 L
  • Dry Weight - 295 kg
  • Engine - 45 Air-cooled Twin Cam 88 (vibration isolation-mounted)
  • Valves - Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
  • Bore x Stroke - 95.3 x 101.6
  • Displacement - 1449 cc
  • Compression Ratio - 8.8:1
  • Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
  • Drivetrain -Primary Drive Double row chain, oil bath, mechanical tensioner, 36/25 ratio
  • Final Drive - Gates carbon fiber reinforced polychain belt, 32/70 ratio
  • Clutch - Multi-plate, wet
  • Transmission - Five-speed
  • Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th 3.15
  • Frame - Mild steel, rectangular section backbone w/ twin down-tubes
  • Swing Arm - Mild steel, rectangular section
  • Front Fork - Wide, 41.3 mm dia. forks w/ chrome fork triple clamp
  • Rear Shocks - Chrome coil-over w/ adjustable spring preload
  • Wheels - 21 in. laced front, 16 in. rear laced
  • Brakes: Caliper type Four-piston front and rear
  • Rotor type (diameter x width): Patented, Uniform Expansion Rotors
  • Front 292.1 mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
  • Suspension travel: Front wheel 142 mm, Rear wheel 110 mm
  • Engine Torque (per 95/1/EC)2: 102 Nm@3400 rpm
  • Lean Angle (per SAEJ1168): Right 31 degrees, Left 32 degrees
  • Battery - Sealed 12-volt, 19 amp-hour, 270 cca (per Battery Council International rating)
  • Charging - 28-amp permanent magnet alternator w/ solid -state regulator (364 watts @ 3,000 rpm, 416 watts peak)
  • Starting - 1.2 kw electric w/ Bendix-type engagement
  • Lights: (As per country regulation)
  • Headlamp - Quartz halogen 55-watt low beam, 60-watt high beam
  • Tail/stop lights - 5w/21w
  • Turn signal lights (self-canceling) - 21w - Indicator lamps High beam, neutral, oil pressure, engine diagnostic light, turn signals and security system

    Styling

  • Engine - Trim Black powdercoated w/ chrome covers
  • Exhaust System - Staggered chrome shorty duals
  • Oil Tank - Under-transmission
  • Foot Supports - Forward controls
  • Ignition Tank - console-mounted
  • Front Fender - Custom w/ painted brace
  • Rear Fender - Custom sculpted Bobtail w/ chrome supports
  • Seat - Custom, stepped chopper seat w/ tucked pillow-look
  • Passenger Backrest - Chrome sideplates and sissy bar w/ H-D Eagle emblem and padded backrest
  • Instruments - Large, tank-mounted electronic speedometer w/ odometer and resettable tripmeter in chrome tank console; fuel gauge
  • Fork Lock - Barrel key, key common w/ ignition
  • Vivid Black, Brilliant Silver, Luxury Teal, Lava Red Sunglo, Real Red, Impact Blue Glacier White Pearl, Two-Tone Luxury Blue/Impact Blue
  • Warranty - 5 24 months (unlimited mileage)
  • Service Interval - First 1,600 Km; every 8,000 Km thereafter.
