2004 Harley FXSTI Softail Standard

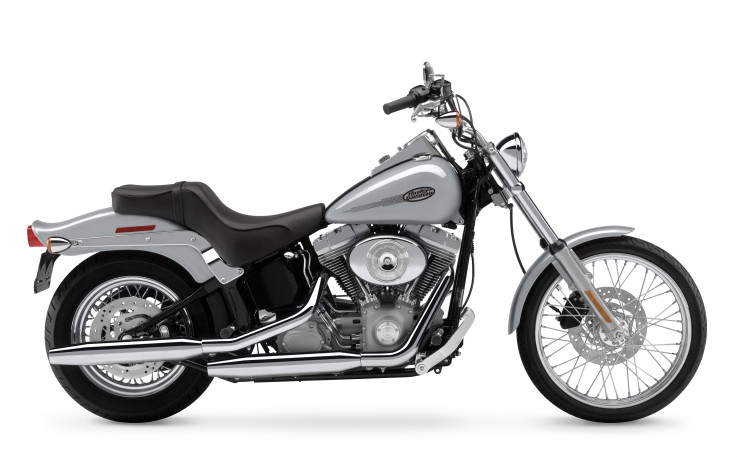

Harley FXSTI Softail Standard

The FXSTI Softail Standard delivers the basics of the classic hardtail style in an affordable package an owner can make his or her own through customisation. Harley-Davidson builds the bike. Then the interpretation is yours.

FXSTI Softail Standard features:

  • Rigid-mount, Twin Cam 88B balanced engine
  • Silver powder-coated engine
  • Laced wheels
  • Bobtail rear fender
  • Black horseshoe oil tank

Specifications - FXSTI Softail Standard

  • Length - 2412 mm
  • Seat Height (measure laden w/ 81.7kg rider) - 720 mm
  • Ground Clearance - 142.2 mm
  • Rake - 32 degrees
  • Trail - 127 mm
  • Wheelbase - 1695 mm
  • Tyres: Dunlop Harley-Davidson Series - Front - D402F MH90-21 54H, Rear - D401 150/80B16 71H
  • Fuel Capacity - 18.9 L
  • Reserve Fuel Capacity - 1.9 L
  • Oil Capacity - 3.3 L
  • Dry Weight - 292 kg
  • Engine - 45 Air-cooled Twin Cam 88BT (balanced)
  • Valves - Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
  • Bore x Stroke - 95.3 x 101.6 mm
  • Displacement - 1449 cc
  • Compression Ratio - 8.8:1
  • Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
  • Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
  • Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
  • Clutch - 9-Plate, wet
  • Transmission - Five-speed
  • Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
  • Frame - Mild steel, rectangular section backbone w/ twin down-tubes
  • Swing Arm - Triangular "hard tail" style
  • Rear Shocks - Hidden, horizontal-mounted, coil-over
  • Front Fork - 41.3 mm telescopic
  • Wheels - 21 in. laced front, 16 in. laced rear
  • Brakes: Caliper type Four-piston front and rear
  • Rotor type (diameter x width): Patented, Uniform Expansion Rotors - Front 292.1 mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
  • Suspension travel: Front Wheel 142 mm, Rear Wheel 110 mm
  • Engine Torque (per 95/1/EC)2: 102 Nm@3500 rpm
  • Lean Angle (per SAEJ1168): Right 31 degrees, Left 34 degrees
  • Battery - Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca (per Batter y Council International rating)
  • Charging - 37-amp permanent magnet alternator w/ solid-state regulator (481 watts @ 3,000 rpm, 494 watts peak)
  • Starting - 1.2 kw electric w/ Bendix-type engagement
  • Lights: (As per country regulation)
  • Headlamp - Quartz halogen 55-watt low beam, 60-watt high beam
  • Tail/stop lights - 5w/21w
  • Turn signal lights (self-canceling) - 21w - Indicator lamps High beam, neutral, oil, turn signals, and security system

Styling

  • Engine Trim - Powdercoated silver w/ polished covers
  • Exhaust System - Chrome staggered shorty duals
  • Oil Tank - Black "Horseshoe" w/ chrome external oil lines
  • Ignition Barrel key - tank console-mounted
  • Foot Supports - Forward controls
  • Rear Fender - Bobtail
  • Rear Fender - Supports Chrome
  • Fork Lock - Barrel key, common w/ ignition
  • Instruments - Electronic speedometer w/ odometer and resettable tripmeter w/ diagnostic readout capabilities. Flasher Hazard warning integrated into turn signal controls
  • Colours - Vivid Black, Brilliant Silver, Sierra Red, Impact Blue
  • Warranty - 24 months (unlimited mileage)
  • Service Interval - First 1,600 Km; every 8,000 Km thereafter.
