2004 Harley Davidson VRSCA V-Rod

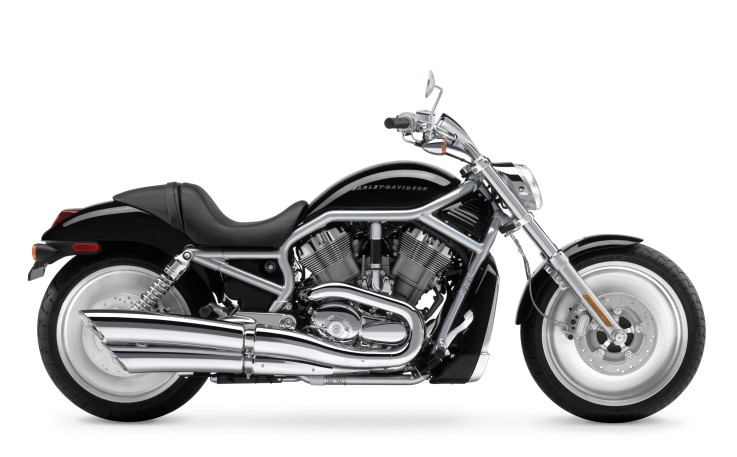

Harley Davidson VRSCA V-Rod

America's favourite power cruiser is available in new colours for 2004, replacing the original silver Anodised Aluminium bodywork. Impact Blue, and Lava Red Sunglo are now available on VRSCA. Two tone paint treatment is also introduced for 2004 with Luxury Teal / Brilliant Silver or Smokey Gold / Vivid Black alternatives. Finally, there's Vivid Black, the favourite colour of Harley owners worldwide. All VRSCA bikes receive a new silver leafed aluminium frame paint with a higher sheen than the original silver paint. The frame is also now clear-coated for improved durability.

VRSCA V-Rod features:

  • Liquid-cooled, 1,130cc Revolution V-twin engine
  • Two-tone silver and charcoal powder-coated cylinders with chrome covers

    Aluminium bodywork available in the following colour choices:

  • Vivid Black, Impact Blue, Lava Red Sunglo, Luxury Teal / Brilliant Silver (two-tone), Smokey Gold / Vivid Black (two-tone)
  • Silver leafed aluminium paint on hydroformed frame
  • Welded pull-back handlebars
  • Swept-back instrument pod
  • Aerodynamic reflector-optic headlight
  • 18 Inch disc rear wheel; 19 inch disc front wheel
  • Aluminium radiator shroud with twin vortex air scoops

    Specifications - VRSCA V-Rod

  • Length - 2435 mm
  • Seat Height (measure laden w/ 81.7kg rider) - 660 mm
  • Ground Clearance - 141.0 mm
  • Rake (steering head) - 34.0 degrees
  • Fork Angle - 38.0 degrees
  • Trail - 99.1 mm
  • Wheelbase - 1710 mm
  • Tyres: Radial - Front - D207 120/70ZR19 60W, Rear - D207 180/55ZR18 74W
  • Fuel Capacity - 14.0 L
  • Reserve Fuel Capacity - No reserve due to fuel injection
  • Oil Capacity - 4.3 L
  • Dry Weight - 275 kg
  • Engine - 60 Liquid-cooled V-Twin RevolutionT engine
  • Valves - Direct acting double overhead cam; four valves per cylinder; chain driven w/ hydraulic tensioners
  • Bore x Stroke - 100 x 72 mm
  • Displacement - 1131 cc
  • Compression Ratio - 11.3:1
  • Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
  • Air Cleaner - Downdraft intake - hidden
  • Lubrication System - Wet-sump, integrated w/ powertrain crankcase
  • Primary Drive - Double row chain, oil bath, mechanical tensioner, 117/64 ratio
  • Final Drive Gates - carbon fiber reinforced polychain belt, 72/30 ratio
  • Clutch - 9-plate, wet
  • Transmission - Five-speed
  • Overall Ratio: 1st - 10.98, 2nd - 7.38, 3rd - 5.88, 4th - 5.10, 5th - 4.57
  • Frame - Steel perimeter upper frame w/ hydroformed main rails and bolt-on lower frame rails
  • Swing Arm - One piece cast aluminum polished
  • Front Fork - Wide 49 mm custom fork
  • Wheels -19-inch front, 18-inch wide cast disc rear
  • Brakes: Caliper type Four-piston front and rear
  • Rotor type (diameter x width): Patented, One piece floating rotor (front), Uniform Expansion Rotor (rear). Front (Dual) 292.1 mm x 5.08 mm, Rear 292.1 mm x 5.84 mm
  • Suspension Travel: Front Wheel 100 mm, Rear Wheel 70 mm
  • Engine Torque (per 95/1/EC)2: World 105 NM @ 6600 rpm, France (opt. Germany) 97Nm@6100 rpm, Lean Angle (per SAEJ1168): Right 32 degrees, Left 32 degrees
  • Battery - Sealed, maintenance-free, 12-volt, 12 amp-hour (per Battery Council International rating) 200 cca
  • Charging - 37-amp rare earth magnet alternator solid-state regulator (481w @ 3000 rpm, 494w peak)
  • Starting - 0.8kw electric Bendix-type engagement
  • Lights: (As per country regulation)
  • Headlamp - Quartz Halogen 55-watt low beam, 60-watt high beam
  • Tail/stop lights - reflector optics 5w/21w
  • Turn signal lights (self-canceling) - 21w - Indicator lamps High beam, neutral, oil, turn signals, engine diagnostics, cooling temperature, low fuel, security system
  • Styling
  • Engine Trim - Powdercoated platinum silver crankcase, Silver cylinder heads and chrome-plated covers
  • Exhaust System - Highly stylized 2 into 1 into 2
  • Ignition Barrel - Keyed, right side under seat
  • Seat - 2-piece textured vinyl w/ flip-up fuel fill access
  • Passenger Backrest Available - Genuine Motor Accessories
  • Foot Supports - Forward
  • Rear Fender Supports - Internal to rear fender w/ included P&A saddlebag mounting points
  • Instruments - Electronic speedometer w/ odometer and resettable tripmeter w/diagnostic capabilities and solid state tell-tale indicator module; tachometer. Hazard warning Integrated into turn signal controls
  • Fork Lock - Barrel Key, common w/ ignition key
  • Colours - Vivid Black, Impact Blue, Lava Red Sunglo
  • Warranty - 24 months (unlimited mileage)
  • Service Interval - First 1,600 Km; every 8,000 Km thereafter.
