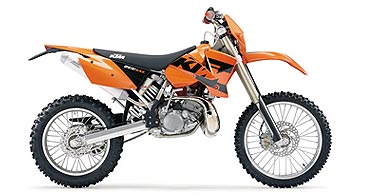

2004 KTM 200 EXC Motorcycle

KTM 200 EXC

  • Engine - single cylinder, 2-stroke
  • Displacement (cc) - 193
  • Bore x stroke (mm) - 64 x 60
  • Starter - kick-starter
  • Transmission - 6 gears
  • Carburetor - Keihin PWK 38 AG
  • Control - TVC
  • Lubrication - mixture oil lubrication
  • Transmission lubrication - 0,7 l Motorex Top Speed 15W50
  • Primary drive - 23 : 73
  • Cooling - liquid cooled
  • Clutch - wet multi-disc clutch, operated hydraulically
  • Ignition - Kokusan digital 2K-3
  • Frame - chromium molybdenum
  • Subframe - aluminium
  • Handlebar - tapered Renthal 28 mm
  • Front suspension - WP-USD 48 MA
  • Rear suspension - WP-PDS-shock absorber
  • Suspension travel, front/rear - 300 / 335 mm
  • Front / Rear brakes - disc brakes 260 / 220 mm
  • Front / rear rims - 1.60 x 21"; 2.15 x 18" DID
  • Front / rear tyres - 90/90-21"; 120/90-18"
  • Transmission - 14:42
  • Chain - X-ring chain 5/8 x 1/4"
  • Main silencer - aluminum
  • Steering head - angle 63
  • Wheel caster - 116 mm
  • Wheelbase - 147110 mm
  • Ground clearance (unloaded) - 390 mm
  • Seat height - 925 mm
  • Fuel capacity - approx. 9 litres
  • Weight (ready to race, no fuel) - approx. 102.4 kgs
