2004 KTM Sportminicycles

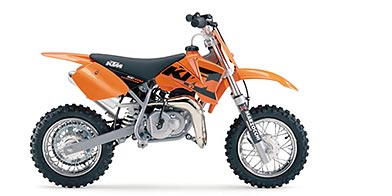

- 50 Mini Adventure

The ideal beginner model for the very first
motorised experiences on two wheels. Especially
easy to drive with docile 2 PS engine, automatic
transmission, Paioli central shock, separate
lubrication and adjustable seat height from
550 mm. For children ages 4 to 6.
Engine Type - single cylinder, 2-stroke
Displacement (cc) - 49
Bore x stroke (mm) - 39.5 x 40
Starter - Kick-starter
Carburetor - Dell'Orto PHVA 12 XS
Engine lubrication - separate lubrication
Primary drive - 16:57
Final drive chain - 1/2 x 3/16" 96 R
Cooling - air cooled
Clutch - centrifugal clutch (adjustable)
Ignition - Selettra
Frame central double-cradle-type frame
Handlebar - Alu D22
Front suspension - Marzocchi Ø 32 mm
Rear suspension - Paioli MC 30 monoshock
Suspension travel front / rear - 120/185
mm
Front brake - drum brake Ø 90 mm
Rear brake - drum brake Ø 90 mm
Front / rear rim - 1,5 x 10"; 1,5 x 10"
Front / rear tire - 2,50 x 10"; 2,50 x
10"
Transmission ratio - 11:48
Main silencer - Aluminum
Steering head angle - 24°
Wheel caster - 73.7 mm
Wheel base - 905 mm
Ground clearance (unloaded) - 195 mm
Seat height - 550 mm
Fuel capacity - approx. 2 liters
Weight (ready to race, no fuel) approx.
- 37.8 kgs
|
| |
