Harley Davidson FLHTI Electra Glide Standard - 2005

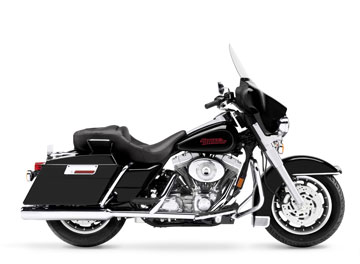

Harley Davidson FLHTI Electra Glide Standard

  • Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
  • Final Drive - Gates carbon fiber reinforced polychain belt, 32/70 ratio
  • Clutch - 9-plate, wet
  • Transmission - Five-speed
  • Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
  • Engine - 45 Aircooled Twin Cam 88 (vibration isolation-mounted)
  • Valves - Pushrod-operated overhead valves; w/hydraulic self-adjusting lifters; two valves per cylinder
  • Bore x Stroke - 95.3 x 101.6 mm
  • Displacement - 1449 cc
  • Compression Ratio - 8.8:1
  • Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
  • Length - 2440 mm
  • Seat Height - (measure laden w/ 81.7kg rider) 693 mm
  • Ground Clearance - 129.5 mm
  • Rake - 26 degrees
  • Trail - 157.5 mm
  • Wheelbase - 1592 mm
  • Tyres: Dunlop Harley-Davidson Series, Front - D402F MT90-B16 72H, Rear - D402 MU85-B16 77H
  • Fuel Capacity - 18.9 L
  • Oil Capacity - 3.8 L
  • Dry Weight - 332 kg
  • Frame - Mild steel, rectangular section backbone w/twin down-tubes
  • Swing Arm - Conventional, rectangular
  • Front Fork - Telescopic w/cartridge-style damping
  • Rear Shocks - Air-adjustable
  • Wheels - 16 in. front, 16 in. rear 9-hollow spoke, cast aluminum alloy
  • Brakes: Caliper Type Four-piston front and rear
  • Rotor Type (diameter x width): Patented, Uniform Expansion Rotors, Front - (DUAL) 292.1 mm x 5.08 mm, Rear - 292.1 mm x 5.84 mm
  • Suspension travel: Front wheel - 117 mm, Rear wheel- 76 mm
  • Engine Torque (per 95/1/EC)2: 109 Nm @ 3400 rpm
  • Lean Angle (per SAEJ1168): Right - 31 degrees, Left - 30 degrees
  • Battery - Sealed, maintenance-free, 12-volt, 30 amp-hour, 270 cca (per Battery Council International rating)
  • Charging - 38-amp permanent magnet alternator w/solid-state regulator
  • Starting 1.2 kw electric w/Bendix-type engagement
  • Lights: (As per country regulation)
  • Headlamp - Quartz halogen, 55-watt low beam, 60-watt high beam
  • Passing lamps - 2 @ 35w (except where prohibited by law)
  • Tail/stop lights - 5w/21w
  • Turn signal lights - (self-canceling) 21w
  • Indicator lamps: High beam, passing lamps, neutral, oil pressure, engine diagnostic light, accessory, turn signals, cruise control (pre-wired), and security system
  • Colours - Vivid black, black cherry pearl, chopper blue pearl
  • Warranty - 24 months (unlimited mileage)
  • Service Interval - First 1,600 Km; every 8,000 Km thereafter.
  • Highlights

  • Engine Trim - Silver powdercoated w/ polished aluminum covers
  • Exhaust System - Chrome cross-over duals
  • Ignition Tank - console-mounted
  • Seat - Extended comfort; plush, pillow-look; accepts available driver backrest
  • Foot Supports - Full-length operator floor boards w/ heel-toe shifter lever
  • Fairing - Fork-mounted "Bat Wing"
  • Windshield - Clear Lexan
  • Instruments - Electronic speedometer and tachometer w/odometer and resettable tripmeter; voltmeter; fuel gauge
  • Cruise Control - Wired to accept electronic cruise control
  • Handlebar Controls - Start; engine cutoff; L/R turn signals; horn; hi/low beam; audio controls in place for easy installation of available system
  • Hazard Warning Integrated w/turn signal controls
  • Electrical Power Outlet(s) - Cigarette lighter; 4-pin accessory connector beneath seat
  • Saddlebags - Fiberglass w/hinged lids, chrome slant latches, volume: 36L per bag
  • Luggage Locks - Saddlebag barrel-key; common w/ignition
  • Fork Lock - Barrel key, common w/ignition
  • Gas Cap Lock - Barrel key, common w/ignition
