Harley Davidson FLSTCI Heritage Softail Classic - 2005

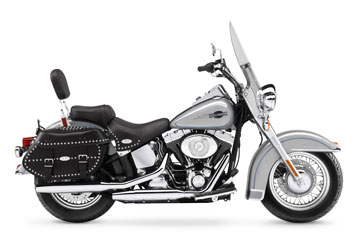

Harley Davidson FLSTCI Heritage Softail Classic

  • Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
  • Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
  • Clutch - 9-Plate, wet
  • Transmission - Five-speed
  • Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
  • Engine - 45 Aircooled Twin Cam 88BT (balanced)
  • Valves - Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
  • Bore x Stroke - 95.3 x 101.6 mm
  • Displacement - 1449 cc
  • Compression Ratio - 8.8:1
  • Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
  • Length - 2391 mm
  • Seat Height - (measure laden w/ 81.7kg rider) 648 mm
  • Ground Clearance - 129.5 mm
  • Rake - 32 degrees
  • Trail - 147.3 mm
  • Wheelbase - 1630 mm
  • Tyres: Dunlop Harley-Davidson Series, Front - D402F MT90B16 72H, Rear - D401 150/80B16 71H
  • Fuel Capacity - 18.9 L
  • Oil Capacity - 3.3 L
  • Dry Weight - 322 kg
  • Frame - Mild steel, rectangular section backbone w/ twin down-tubes
  • Swing Arm - Triangular "hard tail" style
  • Front Fork - 41.3 mm, Telescopic w/ "beer can" covers
  • Wheels - 16 in. laced front, 16 in. rear laced
  • Brakes: Caliper Type Four-piston front and rear
  • Rotor Type (diameter x width): Patented, Uniform Expansion Rotors, Front - 292.1 mm x 5.08 mm, Rear - 292.1 mm x 5.84 mm
  • Suspension travel: Front wheel - 130 mm, Rear wheel - 109 mm
  • Engine Torque (per 95/1/EC)2: EFI: 106 Nm @ 3750 rpm
  • Lean Angle (per SAEJ1168): Right - 29 degrees, Left - 28 degrees
  • Battery - Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca (per Battery Council International rating)
  • Charging - 38-amp permanent magnet alternator w/ solid-state regulator (439 watts @ 2000 rpm; 489 watts peak)
  • Starting - 1.2 kw electric w/ Bendix-type engagement
  • Lights: (As per country regulation)
  • Headlamp - Quartz halogen, 55-watt low beam, 60-watt high beam
  • Tail/stop - lights 5w/21w
  • Turn signal lights - (self-canceling) 21w
  • Passing/fog lamps - Standard
  • Indicator lamps: High beam, neutral, oil, turn signals and security system
  • Colours - Vivid black, brilliant silver pearl, black cherry pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue pearl, two-tone black cherry pearl and black pearl, two-tone sierra red pearl and brilliant silver pearl, two-tone smokey gold pearl and vivid black, two-tone vivid black and lava red sunglo
  • Warranty - 24 months (unlimited mileage)
  • Service Interval - First 1,600 Km; every 8,000 Km thereafter.
  • Highlights

  • Engine Trim - Powdercoated black w/ chrome covers
  • Exhaust System - Chrome staggered shorty duals
  • Oil tank - Chrome "Horseshoe" w/ chrome external oil lines
  • Ignition - Barrel key, tank console-mounted
  • Windshield - Detachable king-size Lexan
  • Passenger Backrest - Standard
  • Saddlebags - Nostalgic studded leather
  • Foot Supports - Full-length operator floorboards w/ heel-toe shifter lever
  • Rear Fender - Full coverage
  • Rear Fender - Supports Chrome
  • Fork Lock - Barrel key, key common w/ ignition
  • Instruments - Electronic speedometer w/ odometer and resettable tripmeter; fuel gauge
  • Flasher Hazard warning integrated into turn signal controls
  • Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws, and some models are not available in certain countries. All models feature 5-speed transmission and carbon fiber belt final drive; 40 mm constant velocity carburetor with enrichner and accelerator pump (except Electronic Sequential Pat Fuel Injection Models); and multi-plate clutch with diaphragm spring in oil bath. Values are nominal. Performance varies by country. Availability may vary from dealer to dealer, and is subject to change without notice. See motorcycle owner's manual for complete details.
