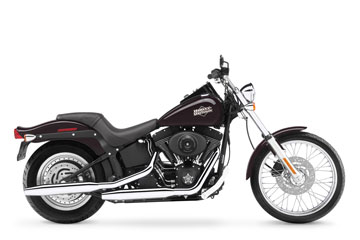

Harley Davidson FXSTBI Night Train - 2005
Primary Drive - Double row chain, oil bath, mechanical tensioner, 36/25 ratio
Final Drive Gates - carbon fiber reinforced polychain belt, 32/70 ratio
Clutch - 9-Plate, wet
Transmission - Five-speed
Overall Ratio: 1st - 10.11, 2nd - 6.96, 3rd - 4.95, 4th - 3.87, 5th - 3.15
Engine - 45º Aircooled Twin Cam 88BT (balanced)
Valves - Pushrod-operated overhead valves; w/ hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke - 95.3 x 101.6 mm
Displacement - 1449 cc
Compression Ratio - 8.8:1
Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)
Length - 2420 mm
Seat Height - (measure laden w/ 81.7kg rider) 640 mm
Ground Clearance - 142.2 mm
Rake - 32 degrees
Trail - 127 mm
Wheelbase - 1695 mm
Tyres: Dunlop Harley-Davidson Series, Front - D402F MH90-21 54H, Rear - D401 150/80B16 71H
Fuel Capacity - 18.9 L
Oil Capacity - 3.3 L
Dry Weight - 292 kg
Frame - Mild steel, rectangular section backbone w/twin down-tubes
Swing Arm - Triangular "hard tail" style
Rear Shocks - Hidden, horizontal-mounted, coil-over
Front Fork - 41.3 mm telescopic
Wheels 21 in. laced front, 16 in. cast black disc rear
Brakes: Caliper Type Four-piston front and rear
Rotor Type (diameter x width): Patented, Uniform Expansion Rotors, Front - 292.1 mm x 5.08 mm, Rear - 292.1 mm x 5.84 mm
Suspension travel: Front wheel - 142 mm, Rear wheel - 109 mm
Engine Torque (per 95/1/EC)2: 102 Nm @ 3500 rpm
Lean Angle (per SAEJ1168): Right - 31 degrees, Left - 34 degrees
Battery - Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging - 38-amp permanent magnet alternator w/ solid-state regulator
(439 watts @ 2000 rpm; 489 watts peak)
Starting - 1.2 kw electric w/ Bendix-type engagement
Lights: (As per country regulation)
Headlamp - Quartz halogen, 55-watt low beam, 60-watt high beam
Tail/stop lights - 5w/21w
Turn signal lights - (self-canceling) 21w
Indicator lamps: High beam, neutral, oil, turn signals
and security system
Colours - Vivid black, black cherry pearl, black pearl
Warranty - 24 months (unlimited mileage)
Service Interval - First 1,600 Km; every 8,000 Km thereafter.
Highlights
Engine Trim - Powdercoated black w/wrinkle black treatment
Exhaust System - Chrome staggered shorty duals
Oil tank - Black "Horseshoe" w/chrome external oil lines
Ignition Tank - console-mounted
Foot Supports - Forward controls
Rear Fender - Bobtail
Rear Fender - Supports Black wrinkle finish
Fork Lock - Barrel key, key common w/ignition
Instruments - Electronic speedometer w/odometer and
resettable tripmeter w/diagnostic readout capabilities
Flasher Hazard warning integrated into turn signal controls
| |
