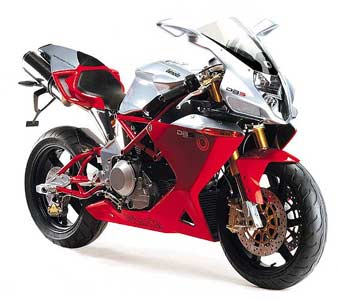

Bimota DB5 mille 1000 - 2005
Bimota returns to its origins. Origins that made it unique in the world:
to build hand-made Motorcycle dreams with the most advanced technologies.
With no compromises. With absolute and total devotion and dedication.
Tubular chrome molybdenum steel trellis frame
Machined plates in aircraft alloy.
Tubular composite swing arm.
Fully adjustable Öhlins suspension.
Airbox with external dynamic intakes.
Ducati 1000 DS air cooled engine.
Semi-floating discs and radial calipers
Foot-rests with radial regulation.
The styling of the DB5mille represents the totality of the Bimota experience. The forms have been created to enhance the mechanics.
The perimetrical frame with plates in aircraft alloy evokes the Bimota culture; The tubular composite swing arm introduces a completely new design concept. Sergio Robbiano has created a bike that can be
immediately recognised as: A real Bimota.
The DB5 program offers the possibility of personalizing the bike
with a series of dedicated accessories. Parts in magnesium, carbon fibre and machined alloy allow the rider to transform a unique product into something totally exclusive.
Frame: 25/20mm tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy.
Rear frame: 35/25/15mm tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy.
Wheelbase: 1425mm
Front suspension: Öhlins upside-down fully adjustable forks with TiN surface treatment
Steering angle: 24°
Rear suspension: Fully adjustable Öhlins monoshock
Front wheel travel: 120mm
Rear wheel travel: 120mm
Trail: 99,83 mm
Weight: 165kg
Seat height: 800mm
Foot rest height: 395 /+16mm /+32mm with radial regulation
Front brake: 2 x 298 mm semi-floating discs, 4-piston 4-pad radial calipers - Brembo
Rear brake: 220 mm disc, 2-piston 2-pad calipers - Brembo
Wheel: Front: 3,50x17" - Rear: 5,50x17"
Tyres: Front: 120/60/17 - Rear: 180/55/17
Engine: Ducati - L twin cylinder, 2 valves per cylinder Desmodromic - air/oil cooled.
Bore and Stroke: 94 x 71,5mm
Displacement: 992cc
Max power: 92 Hp/8500 rpm
Max. torque: 8,5 kgm/5500 rpm
Fuel injection: Electronic fuel injection - 48mm throttle body
Lubrication: With wet sump
Gear box: 6 speed
Clutch: Dry multi-plate with hydraulic control
| |
