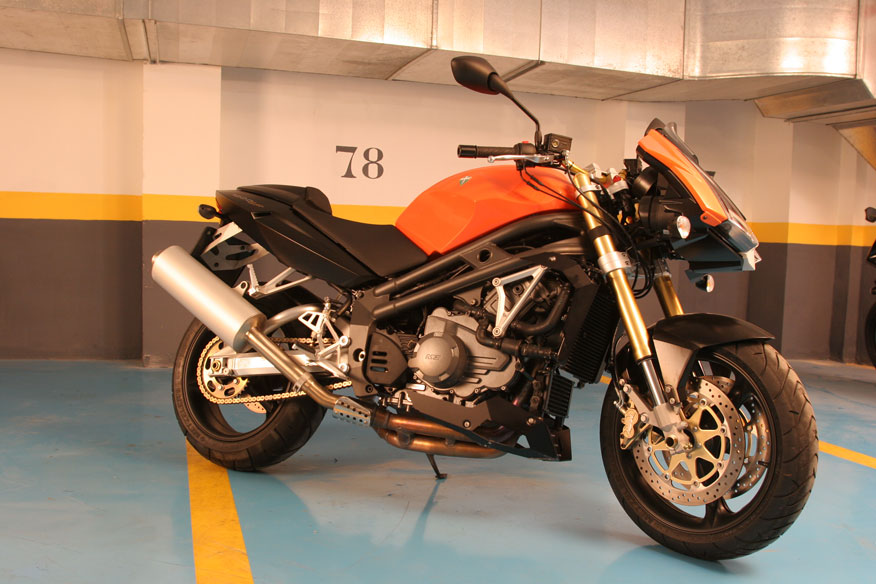

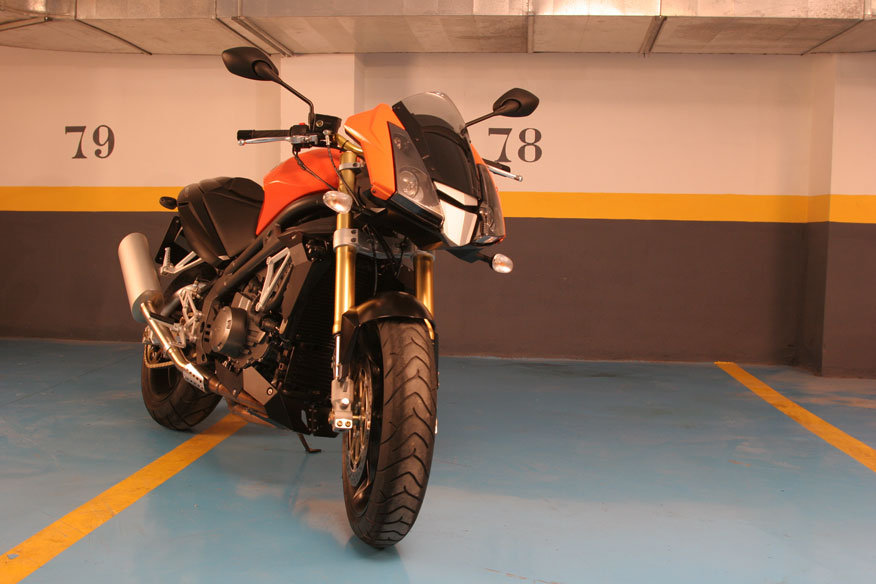

2005 MZ 1000 DF

MZ1000 SF Super Fighter MZ1000 SF Super Fighter MZ1000 SF Super Fighter

The new MZ 1000 SF is the naked derivate of the racing proven and award winning sports bike MZ 1000 S and is targeted to the market segment ofthe Streetfighters: Naked sports bikes.

The 2-cylinder, 4-stroke engine R2 of the Super Fighter with 113 hp has been developed by MZ. The engineis based on the well proven 117 PS engine of the MZ 1000S. The whole software has been modified for the use in the Super Fighter and the injection map has been adjusted. Also, the exhaust system is laid out for torque. A shorter secondary transmission gives additional support to the engine characteristics of the Super Fighter. The engine is covered under a special fairing made of anodised aluminium that only weighs 510g.

The MZ engineers have also made significant changes to the chassis: The seat height was reduced by 15mm, resulting in better handling. The conic aluminium tube handlebar allows perfect control over the bike as well as a comfortable seat position. The handlebar holder has been constructed starchily. To enable an optimum adjustment for every rider, the new brake and clutch fittings are individually adjustable.

The Saxons have developed a special innovation: A new wind protection system called J.A.P. (Jet Air Protect). The front fairing wasdeveloped in a wind tunnel and allows with its spoiler edge and airing behind the same wind protection as a screen of the double size.

In co-operation with Colour Industries Chemnitz, MZ has developed a special, matt lacquer with nano-technology on ceramic basis exclusively for the MZ 1000 SF, which is more scratch-resistant than other lacquer systems and that guarantees a durably matt finish. Besides two standard colours (orange and black) several special colours and lacquerings are available.

Even before the MZ 1000 SF Super Fighter was launched it won the internationally renowned iF Product Design Award 2005. It is available from March 2005.

  • Engine Type - Liquid-cooled, 4-stroke, 2-cylinder in-line, 40 forward inclined, 1 Balancer Shaft Valve Train 4 valves per cylinder (DOHC), hydraulic chain tensioner (HyCT)
  • Displacement - 998 ccm
  • Bore x Stroke - 96 x 69 mm
  • Compression - 11,5
  • Throttle Body Diameter - 51 mm
  • Fuel System Electronic - fuel injection
  • Exhaust Emission - Euro 2, two catalytic converters
  • Lubrication System - Wet sump
  • Ignition System - Electronic engine management
  • Transmission - 6-speed, cassette
  • Power - 83 kW ( 113 PS) at 9000 rpm
  • Max. Torque. - 98 Nm at 7000 rpm
  • Power Variation - 72 kW (98 PS)
  • Frame - Chromium-Molybdenum Duplex Tubular Frame (CMDT)
  • Front brake - 320 mm double disk, four piston fixed caliper
  • Rear brake - 243 mm single disc, two piston fixed caliper
  • Front Wheel - 17 x MT 3.50 Twin System Wheel (TSW)
  • Rear Wheel - 17 x MT 5.50 Twin System Wheel (TSW)
  • Front Tyre - 120/70 ZR17
  • Rear Tyre - 180/55 ZR17
  • Front Suspension - 43 mm Upside-down telescopic fork, fully adjustable
  • Rear Suspension - Aluminium Cantilever Swingarm, monoshock, fully adjustable with hydraulic preload system
  • Steering Angle - 64
  • Wheel Base - 1445 mm
  • Front Wheel Travel - 120 mm
  • Rear Wheel Travel - 120 mm (105 mm with optional height reduction)
  • Seat Height - 825 mm (optional 810 mm)
  • Dry Weight - 209 kg
  • Max. Load - 198 kg
  • Total Weight - 426 kg
  • Fuel Tank Capacity - 20 l incl. 5 l reserve
  • Maximum Speed - above 200km/h
  • Colours - Pirate Black, SF Orange
  • Special colours - Green Hell, MZ Red, Schleiz Yellow, Speedway White
  • Special design - Tank-Striping
  • Guarantee - 2 years, unlimited km incl. mobility guarantee
