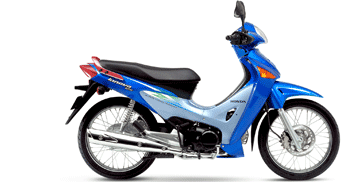

2006 Honda ANF125 Innova

Honda ANF125

Let the slim and sporty Innova carry you to an exciting new age of light-hearted mobility and easy daily convenience. Its sharp, angular lines give it an energising look of 'do it all' capability, and it's briskly responsive performance gets you happily on your way in the twinkle of an eye. The Innova's fast and friendly air-cooled 4-stroke engine not only gets you to your destinations quickly, it does so with thrifty fuel economy that goes easy on your pocket.

Equipment is, as you'd expect, first-rate, with such 'big bike' features as an LCD odometer, a handy fuel gauge and even a 5-segment LED gear indictor display. Need somewhere to put things? The Innova's spacious underseat carrying compartment gives you room to carry a day's groceries, books, beach accessories, or other travelling essentials with ease. Got places to go and people to see? Get there in lively fashion aboard the fun and friendly Innova. Why walk when you can ride in style?

Colours;

  • Force Silver Metallic
  • Asteroid Black Metallic (with Terra Silver Metallic)
  • Candy Lighting Blue (with Force Silver Metallic)
  • Millennium Red (with Force Silver Metallic)
  • New Features;

  • New two-tone colour variations.
  • Technical Specifications (ED-type);

  • Engine Type - Air-cooled 4-stroke SOHC single
  • Displacement - 124.9cm3
  • Bore x Stroke - 52.4 x 57.9mm
  • Compression Ratio - 9.3 : 1
  • Max. Power Output - 6.65kW/7,500min-1 (95/1/EC)
  • Max. Torque - 10Nm/5,000min-1 (95/1/EC)
  • Idling Speed - 1,400min-1
  • Oil Capacity - 0.8 litres
  • Fuel System;

  • Carburation - 18mm APB-type carburettor
  • Aircleaner - Dry, cartridge-type paper filter
  • Fuel Tank Capacity - 3.7 litres
  • Electrical System;

  • Ignition System - Capacitor Discharge (CDI) with electronic advance
  • Ignition Timing - 15 BTDC (idle) ~ 37 BTDC (3,000min-1)
  • Sparkplug Type - CPR6EA-9 (NGK); U20EPR9 (ND)
  • Starter - Electric/Neutral kick
  • Battery Capacity - 12V/5AH
  • Headlights - 12V, 35W x 1 (low) / 35W x 1 (high)
  • Drivetrain;

  • Clutch - Centrifugal; automatic
  • Transmission Type - 4-speed; rotary
  • Primary Reduction - 3.350 (67/20)
  • Gear Ratios - 1 2.500 (35/14), 2: 1.550 (31/20), 3: 1.150 (23/20), 4: 0.923 (24/26)
  • Final Reduction - 2.500 (35/14)
  • Final Drive - Enclosed roller chain
  • Frame;

  • Type - Low deck Mono-Backbone; rectangular-section steel tube
  • Chassis;

  • Dimensions - (LxWxH) 1,890 x 727 x 1,083mm
  • Wheelbase - 1,240mm
  • Caster Angle - 26 30'
  • Trail - 73.3mm
  • Turning Radius - 2.9m
  • Seat Height - 768mm
  • Ground Clearance - 145mm
  • Dry Weight - 99.5kg
  • Kerb Weight - 104.2kg (F: 43.7kg; R: 60.5kg)
  • Max. Carrying Capacity - 170kg
  • Loaded Weight - 254kg (F: 72kg; R: 182kg)
  • Suspension;

  • Type, Front - 26mm telescopic fork, 80.5mm axle travel
  • Rear - Dual damper unit swingarm, 81.6mm axle travel
  • Wheels;

  • Type, Front - Steel rim/wire spoke
  • Rear - Steel rim/wire spoke
  • Rim Size, Front - 17 x 1.40
  • Rear - 17 x 1.40
  • Tyre Size, Front - 70/100-17M/C 40P
  • Rear - 80/90-17M/C 50P
  • Tyre Pressure, Front - 200kPa
  • Rear - 200kPa (with passenger: 250kPa)
  • Brakes;

  • Type, Front - 220mm hydraulic disc with dual-piston calliper
  • Rear - 110mm leading/trailing drum
  • All specifications are provisional and subject to change without notice.
