2006 Suzuki Bandit 650S

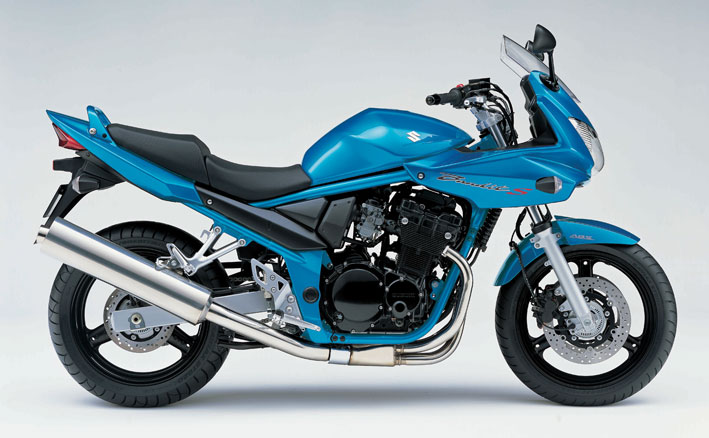

Suzuki Bandit 650S

Dimensions;

  • Overall Length - 2,110 mm
  • Overall Width - 770 mm
  • Overall Height - 1,225 mm
  • Wheelbase - 1,440 mm
  • Ground Clearance - 130 mm
  • Seat Height - 770 - 790 mm
  • Dry Mass - 204kg
  • Fuel Capacity - 20 litres
  • Engine;

  • Engine Type - 4-stroke, air cooled with SACS, DOHC, 4-
  • cylinder
  • Bore x Stroke - 65.5 mm x 48.7 mm
  • Max Power - 77.5 PS @ 10,100
  • Max Torque - 59.2 Nm @ 4,000
  • Piston Displacement - 656 cc
  • Compression Ratio - 10.5:1
  • Carburettor - Keihin CVR32
  • Lubrication - Wet sump
  • Electrical System;

  • Ignition Type - Digital electronic (Fully Transistorised)
  • Starter System - Electric starter
  • Transmission;

  • Clutch - Wet multi plate
  • Transmission - 6-speed, constant
  • Drive System - Chain
  • Chassis;

  • Front Suspension - 41 mm telescopic, coil spring, spring pre-load fully adjustable
  • Rear Suspension - Link type, oil damped, coil spring, spring pre-load 7-way adjustable, rebound damping 4-way adjustable
  • Rake/Trail - 26 degrees/108 mm
  • Front Brake - 2-piston calipers, 290 mm dual-disc brake
  • Rear Brake - 1-piston caliper, 240 mm disc brake
  • Front Tyre - 120/70 ZR17M/C
  • Rear Tyre - 160/60 ZR17M/C
