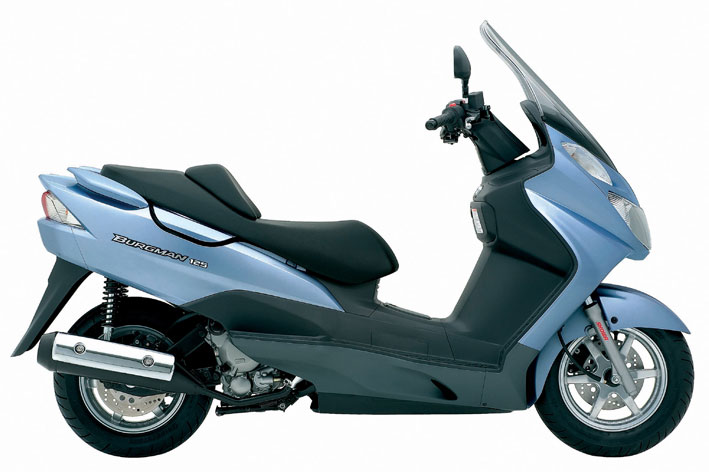

2006 Suzuki Burgman 125
Dimensions;
Overall Length - 2,085 mm
Overall Width - 720 mm
Overall Height - 1,325 mm
Wheelbase - 1,450 mm
Ground Clearance - 125 mm
Seat Height - 705 mm
Dry Mass - 139 kg
Fuel Capacity - 10 litres
Engine;
Engine Type - 1-cylinder, liquid-cooled, SOHC, 4-stroke
Bore x Stroke - 57.0 x 48.8mm
Max Power - 11.8 PS (8.7 Kw) @ 8,500 rpm
Max Torque - 11 Nm @ 7,000 rpm
Piston Displacement - 125 cc
Compression Ratio - 11:6 : 1
Carburettor - Keihin CVK24
Lubrication - Wet sump
Electrical System;
Ignition Type - CDi
Starter System - Electric
Transmission;
Clutch - Automatic
Transmission - Variable ratio automatic
Drive System - V-Belt
Chassis:
Front Suspension - Telescopic
Rear Suspension - Dual shock absorber, adjustable preload
Rake/Trail - 26.7 degrees / 93 mm
Front Brake - 220 mm single hydraulic disc
Rear Brake - 220 mm single hydraulic disc
Front Tyre - 110/90-12
Rear Tyre - 130/70-12
|
|
