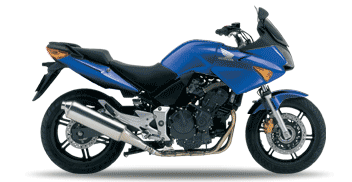

2006 Honda CBF600S

Honda CNF600S

Graced with a beautifully integrated, frame-mounted half-fairing and windscreen featuring clean aerodynamic lines that flow into the sinewy shape of its fuel tank, the CBF600S effectively expands the range of the Naked CBF600's unique brand of 'Just Fit' riding enjoyment. Providing a level of wind protection to match the CBF's comfortable riding position and excellent riding ergonomics, the CBF600S makes the idea of longer rides and light touring an enticing and satisfying possibility. Even more, its unique three-step height-adjustable seat provides a near-perfect fit for riders big and. not so big, and a special attraction for the growing ranks of women riders.

The CBF600S's specially tuned 600cc inline-4 engine delivers an inspiring rush of acceleration from virtually anywhere in its wide powerband. Riding solo or with a friend in tow, acceleration comes on just as strong as you want it, or as smooth and comfortable as any bike you've ever experienced. Its lightweight and quick-handling chassis and suspension systems provide a sporty and confident ride, and a version can also be had with the extra stopping confidence of Antilock Brakes (ABS).

Colours;

  • Quasar Silver Metallic
  • Emergency Red Metallic
  • Interstellar Black Metallic
  • Candy Xenon Blue
  • New Features;

  • New clear-lens turn indicators with amber coloured bulbs.
  • New longer rear-view mirror stays enhance viewing ease.
  • New colour variations.
  • Technical Specifications CBF600S (ED-type);

  • Engine Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
  • Displacement - 599.9cm3
  • Bore x Stroke - 65 x 45.2mm
  • Compression Ratio - 11.6 : 1
  • Max. Power Output - 57kW/10,500min-1 (95/1/EC)
  • Max. Torque - 58Nm/8,000min-1 (95/1/EC)
  • Idling Speed - 1,300min-1
  • Oil Capacity - 4.2 litres
  • Fuel System;

  • Carburation - 34mm slanted flat-slide VP-type carburettor x 4
  • Aircleaner - Dry, cartridge-type paper filter
  • Fuel Tank Capacity - 19 litres (including 3.5-litre warning light reserve)
  • Electrical System;

  • Ignition System - Computer-controlled digital transistorised with electronic advance
  • Ignition Timing - 7 BTDC (idle) ~ 45 BTDC (11,500min-1)
  • Sparkplug Type - CR9EH-9 (NGK); U27FER-9 (ND)
  • Starter - Electric
  • Battery Capacity - 12V/6AH
  • ACG Output - 333W
  • Headlights - 12V, 55W x 2 (low) / 55W x 2 (high)
  • Drivetrain;

  • Clutch - Wet, multiplate with coil springs
  • Clutch - Operation Mechanical; cable-actuated
  • Transmission Type - 6-speed
  • Primary Reduction - 1.863 (82/44)
  • Gear Ratios - 1; 2.928 (41/14), 2; 2.062 (33/16), 3; 1.647 (28/17), 4; 1.368 (26/19), 5; 1.200 (24/20), 6; 1.086 (25/23)
  • Final Reduction - 2.866 (43/15)
  • Final Drive - O-ring sealed chain
  • Frame Type - Mono-backbone; rectangular-section steel tube
  • Chassis;

  • Dimensions - (LxWxH) 2,170 x 765 x 1,230mm
  • Wheelbase - 1,480mm
  • Caster Angle - 26
  • Trail - 109mm
  • Turning Radius - 2.8m
  • Seat Height - 785mm (15mm)
  • Ground Clearance - 130mm
  • Dry Weight - 197kg (*202kg)
  • Kerb Weight - 219kg (F: 109kg; R: 110kg)
  • Max. Carrying Capacity - 180kg
  • Loaded Weight - 404kg (F: 156kg; R: 248kg)
  • Suspension;

  • Type - Front, 41mm telescopic fork, 120mm axle travel
  • Rear - Monoshock damper with 7-step adjustable preload, 125mm axle travel
  • Wheels;

  • Type - Front, U-section twin 6-spoke cast aluminium
  • Rear - U-section twin 6-spoke cast aluminium
  • Rim Size - Front, 17M/C x MT3.50
  • Rear - 17M/C x MT5.00
  • Tyre Size - Front, 120/70 ZR17M/C (58W)
  • Rear - 160/60 ZR17M/C (69W)
  • Tyre Pressure - Front, 250kPa
  • Rear - 290kPa
  • Brakes;

  • Type - Front, 296 x 4.5mm dual hydraulic disc with dual-piston callipers, (*ABS) and sintered metal pads
  • Rear - 240 x 5mm hydraulic disc with single-piston calliper, (*ABS) and sintered metal pads
  • (*CBF600S ABS)

    All specifications are provisional and subject to change without notice.
