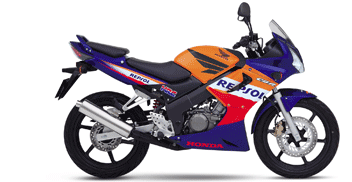

2006 Honda CBR125R

Honda CBR125R

The thrilling CBR125R gives you sleek and sinewy Supersport styling for both the look and feel of swift, light-handling performance that never fails to excite. Your spirits begin to rise the instant you settle into its seat, and don't come down till long after the day is done. From its sleek, aerodynamic bodywork and large dual multireflector headlights through its sharp-handling twin-spar chassis and cast aluminium wheels, the CBR125R attacks the street in full racer form.

Honda's smallest CBR is powered by a quick-revving liquid-cooled 4-stroke engine that starts right up with the touch of a button, and follows through with quick response and smooth acceleration that keeps the excitement running high. Always fun to ride, and a capable handler when called on to perform, the light and nimble CBR125R makes any young, new rider feel like a knee-dragging champion of the track. So, what are you waiting for? Throw a leg over and feel the thrill of CBR excitement for yourself.

Colours;

  • Black (with Matte Black)
  • Millennium Red (with Granite Blue Metallic and Force Silver Metallic)
  • Candy Energy Orange (with Black and Force Silver Metallic)
  • Repsol Colours: Savory Orange (with Pearl Horn Blue)
  • New Features;

  • New colour variations
  • tECHNICAL Specifications CBR125R (ED-type);

  • Engine Type - Liquid-cooled 4-stroke 2-valve SOHC single
  • Displacement - 124.7cm3/li>
  • Bore x Stroke - 58 x 47.2mm/li>
  • Compression Ratio - 11 : 1/li>
  • Max. Power Output - 9.7kW/10,000min-1 (95/1/EC)/li>
  • Max. Torque - 10.1Nm/8,000min-1 (95/1/EC)/li>
  • Idling Speed - 1,400min-1/li>
  • Oil Capacity - 1.3 litres/li>

    Fuel System;

  • Carburation - 28mm VK-type carburettor/li>
  • Aircleaner - Dry, cartridge-type paper filter/li>
  • Fuel Tank Capacity - 10 litres/li>

    Electrical System;

  • Ignition System - Capacitor Discharge (CDI)/li>
  • Ignition Timing - 12 BTDC (idle) ~ 30 BTDC (8,000min-1)/li>
  • Sparkplug Type - CR8E (NGK); U24ESR-N (ND)/li>
  • Starter - Electric/li>
  • Battery Capacity - 12V/5AH/li>
  • ACG Output - 230W/li>
  • Headlights - 12V, 35W x 2 (low) / 35W x 2 (high)/li>

    Drivetrain;

  • Clutch - Wet, multiplate with coil springs/li>
  • Clutch Operation - Mechanical; cable-actuated/li>
  • Transmission Type - 6-speed/li>
  • Primary Reduction - 3.350 (67/20)/li>
  • Gear Ratios - 1; 3.454 (38/11), 2; 1.941 (33/17), 3; 1.450 (29/20), 4; 1.173 (27/23), 5; 1.041 (25/24), 6; 0.923 (24/26)/li>
  • Final Reduction - 2.800 (42/15)/li>
  • Final Drive - O-ring sealed chain/li>
  • Frame Type - Diamond; steel twin-spar/li>

    Chassis;

  • Dimensions - (LxWxH) 1,920 x 675 x 1,070mm/li>
  • Wheelbase - 1,294mm/li>
  • Caster Angle - 25/li>
  • Trail - 88mm/li>
  • Turning Radius - 2.5m/li>
  • Seat Height - 776mm/li>
  • Ground Clearance - 172mm/li>
  • Dry Weight - 115kg/li>
  • Kerb Weight - 124kg (F: 59kg; R: 65kg)/li>
  • Max. Carrying Capacity - 180kg/li>
  • Loaded Weight - 304kg (F: 100kg; R: 204kg)/li>

    Suspension;

  • Type - Front, 31mm telescopic fork, 109mm axle travel/li>
  • Rear - Monoshock damper, 120mm axle travel/li>

    Wheels;

  • Type - Front, U-section 6-spoke cast aluminium/li>
  • Rear - U-section 6-spoke cast aluminium/li>
  • Rim Size - Front, 17M/C x MT1.85/li>
  • Rear - 17M/C x MT2.15/li>
  • Tyre Size - Front, 80/90-17M/C 44P/li>
  • Rear - 100/80-17M/C 52P/li>
  • Tyre Pressure - Front, 200kPa/li>
  • Rear - 225kPa/li>

    Brakes;

  • Type - Front, 276 x 4mm hydraulic disc with dual-piston calliper and sintered metal pads/li>
  • Rear - 220 x 4mm hydraulic disc with single-piston calliper and sintered metal pads/li>

    All specifications are provisional and subject to change without notice
