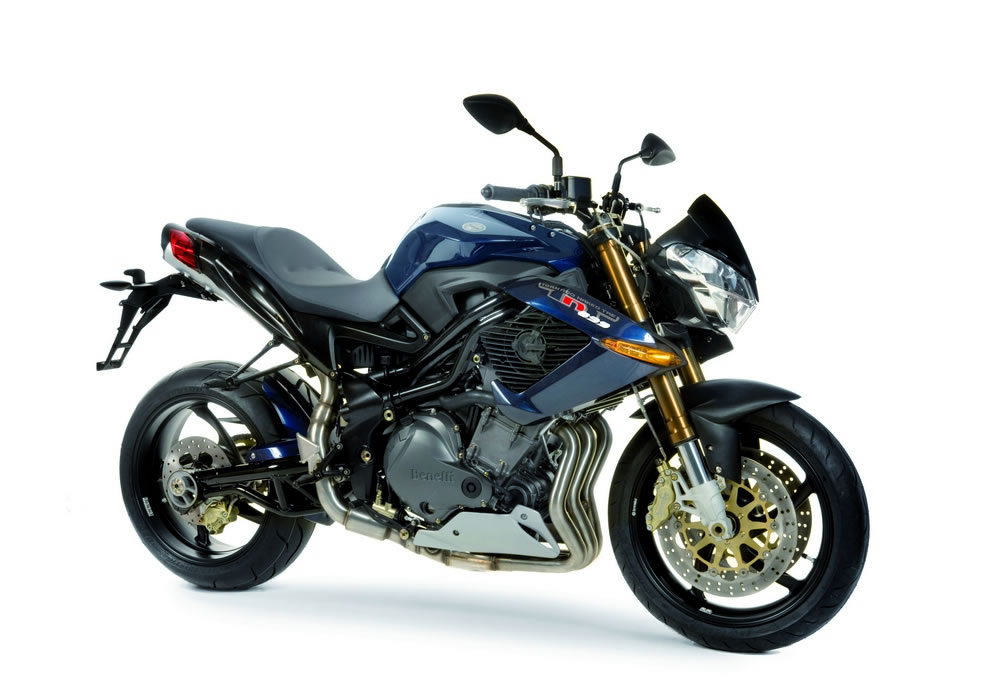

2009 Benelli Tornado Naked TRE 899

2009 Benelli Tornado Naked TRE 899

Technical Specification

  • ENGINE - 3 cylinders, 4 stroke, liquid cooled, 12 Valves, DOHC (double overhaed camshaft)
  • CYLINDER CAPACITY - 899 cc
  • BORE X STROKE - 88 x 49.2
  • COMPRESSION RATIO - 12,5:1
  • MAXIMUM POWER - 86.5 Kw @ 10.500
  • MAXIMUM NET TORQUE / RPM - 79 Nm @ 8.500
  • FIRING ORDER - 1 > 3 > 2
  • INTAKE VALVE DIAMETER - 33 mm
  • EXHAUST VALVE DIAMETER - 29 mm
  • INTAKE ENGINE TIMING - 21°bTDC 42° aBDC
  • EXHAUST ENGINE TIMING - 42°aBDC 21° aBDC
  • MAXIMUM VALVE LIFT - Int.8,75 exh.7.5
  • THROTTLE BODY DIAMETER - 53 mm
  • LUBRICATION SYSTEM - Wet sump
  • FUEL SYSTEM - Injection EURO 3
  • CLUTCH - Wet clucth 10 discs
  • IGNITION - Digital - inductive type via electronic engine management
  • STARTING - Electric
  • GEARBOX - 6 - speed
  • TRANSMISSION - 525 chain type
  • PRIMARY RATIO - 44 / 79
  • FINAL RATIO - 16 / 41
  • GEAR RATIOS (SECONDARY) - 1° 14 / 39, 2° 18 / 35, 3° 21 / 32, 4° 23 / 30, 5° 24 / 28, 6° 25 / 27
  • FRAME - ASD steel tube trellis, with boxed section
  • FRONT SUSPENSION - “Upside down" fork Ø 43 mm totally adjustable
  • FRONT TRAVEL - 120 mm
  • REAR SUSPENSION - ASD steel tube trellis swingarm
  • REAR TRAVEL - 120 mm
  • RAKE - 24°
  • TRAIL - 95 mm
  • OFFSET - 33 mm
  • FRONT BRAKE DIAMETER - Ø 320 mm
  • REAR BRAKE DIAMETER - Ø 240 mm
  • FRONT TYRE - 120-70/17; 120-65/17
  • REAR TYRE - 180-55/17; 190-55/17; 200-50/17
  • LENGTH - 2100 mm
  • WIDTH - 790 mm
  • HEIGHT - 780 mm
  • SEAT HEIGHT - 1050mm
  • WHEELBASE - 1443 mm
  • DRY WEIGHT - 199 kg
  • FUEL TANK CAPACITY - 17 l
  • FUEL RESERVE - 4 l
