2009 Bimota DB5R

2009 Bimota DB5R

Super Sport – The DB5

Powered by the Ducati 1100 engine, often cited by journalists as one of the best street engines ever, the DB5 tackles every corner with renowned Bimota poise and confidence that only comes from race quality components and sound engineering. In a simplified line-up, the DB5 is now available in two versions, the twin seat DB5S and the ultra performance single seat DB5R.

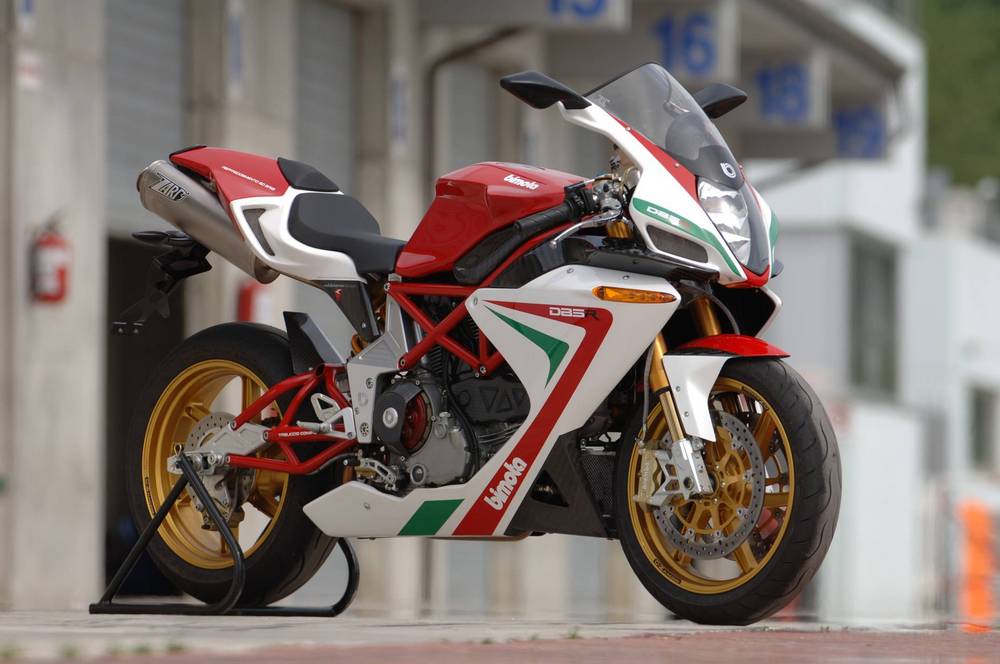

The ultimate performance DB5R returns in a classic Tri Colore paint scheme. Long a favorite of the most seasoned sport riders, the DB5R adds a long list of exotic materials and components to deliver performance worthy of its ‘R’ designation. Red, white and green, the classic Italian livery colors, have been applied to ‘coarse weave’ all carbon fiber body, certainly the most beautifully executed use of this exotic material. Ohlins suspension front and rear, ultra light wheels, Brembo radial controls and a racing ‘slipper’ clutch complete this master piece that has been called one of the best ‘real’ world sport bikes.

Technical Data

Engine

  • Ducati 1100
  • Engine Configuration: Twin cylinder 90°
  • Displacement: 1078 cc
  • Engine Cooling: air/oil cooling
  • Compression Ratio: 10±0.5:1
  • Valves per cylinder: 2
  • Bore x Stroke: 98.0 mm x 71.5 mm
  • Engine Redline: 8500 rpm
  • Valve Angle (Included): 28° Inlet / 28° Exhaust
  • Valvetrain Type: Desmodromic valve actuation
  • Intake Valve Diameter: Ø 40 mm
  • Exhaust Valve Diameter: Ø 35 mm
  • Intake Valve Timing: Open BTDC 15°
  • Closed ABDC 65°
  • Duration 260°
  • Exhaust Valve Timing: Open BBDC 62°
  • Closed ATDC 19°
  • Duration 261°
  • Fuel Pump: Bitron 3.5 bar, electronic
  • Throttle Body Size: 45 mm
  • Air Filter: Paper
  • Exhaust System: 2 in 1 in 2, inox
  • Emission: EURO 3
  • Injection: Walbro
  • Injectors: Magneti Marelli
  • Lubrication System: Wet Sump
  • Transmission Type: Dry slipper clutch Multi-disc with hydraulic actuation system
  • Primary Drive ratio: 33/61
  • Final Drive ratio: 15/38
  • Transmission ratio: VI = 28/24
  • V = 24/23
  • IV = 22/24
  • III = 20/27
  • II = 17/30
  • I = 15/37

Chassis

  • Wheelbase: 1425 mm
  • Steering angle: 24°
  • Swingarm length: 515±20 mm
  • Seat height: 820 mm
  • Footpeg height: 370-385 mm (radial adjustement)
  • Handlebar height: 850 mm
  • Steering stem to seat center: 670 mm
  • Overall length: 2045 mm
  • Overall width: 750 mm
  • Overall height: 1230 mm
  • Ground clearance: 170 mm
  • Front suspension: Öhlins UD fork TiN fully adjustable
  • diameter: 43 mm
  • stroke: 120 mm
  • Rear suspension: Öhlins Monoshock fully adjustable
  • wheel stroke: 120 mm
  • Front brake: Double Ø320 mm Brembo floating disc, 4-pistons,4-pads with radial Brembo callipers, radial pumps
  • Rear brake: Ø230 mm Brembo disc, 2-pistons, 2-pads with Brembo calliper
  • Wheels: FRONT. 3.50x17.0 Forged Al Alloy OZ Racing
  • REAR. 5.50x17.0 Forged Al Alloy OZ Racing
  • Tyres: FRONT. 120/70 ZR 17, Continental Sport Attack
  • REAR. 180/55 ZR 17, Continental Sport Attack
  • Fuel tank: 16 l (5 l reserve)
  • Total weight dry: 169 kg
