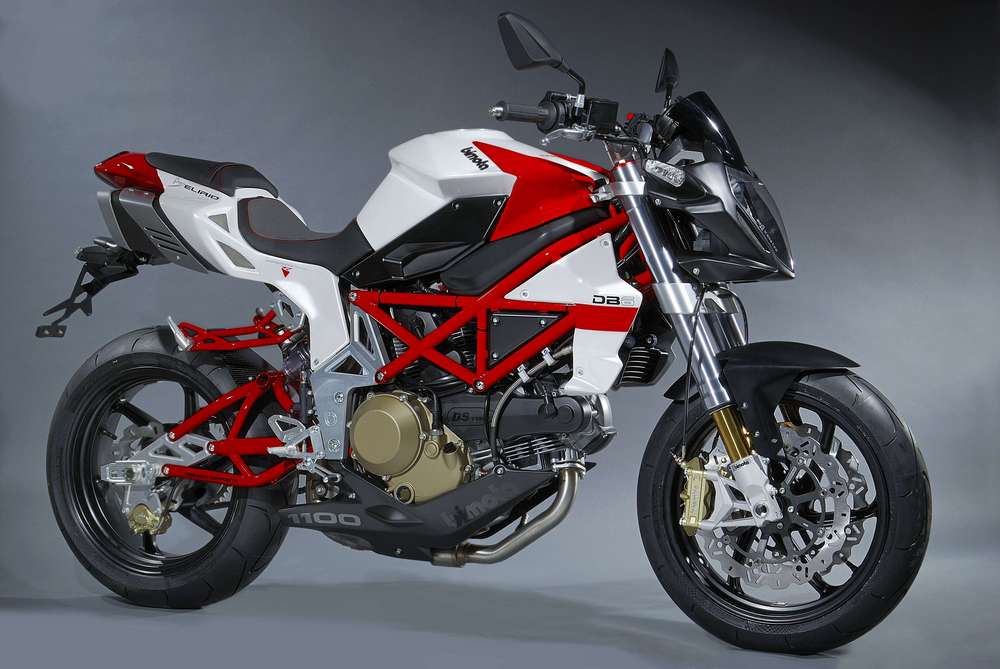

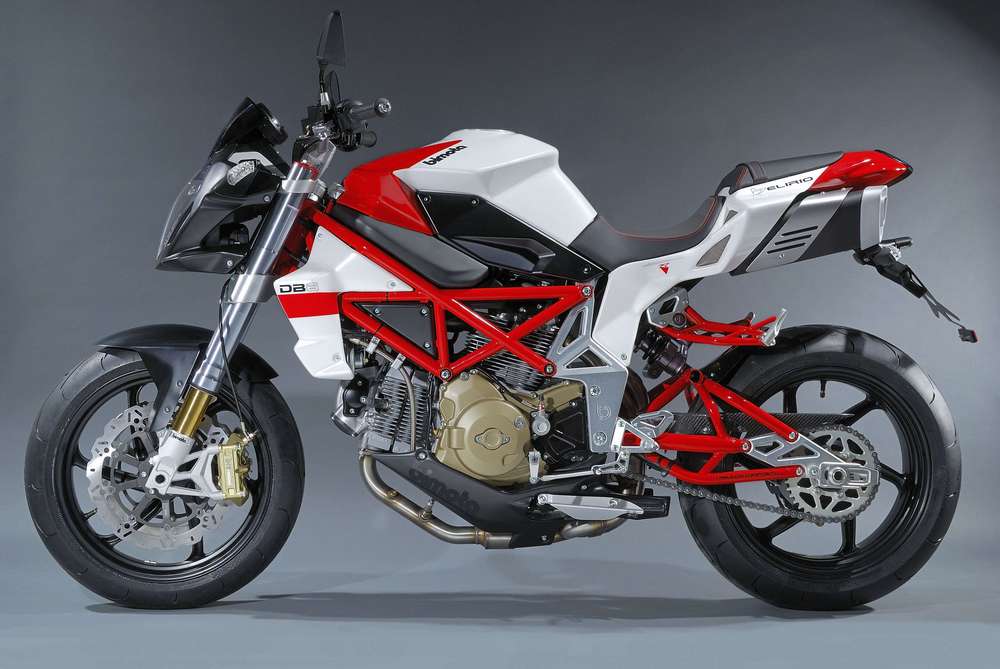

2009 Bimota DB6 Delirio

2009 Bimota DB6 DelirioDB6 Delirio

Sport Naked – The DB6 Delirio

Raised handlebars and a comfortable upright riding position combine with Bimota signature ultra light weight and sport riding prowess, make the DB6 the perfect sport bike for everyday. Bimota offers two versions of its sport naked model – the award winning DB6, and its high performance partner, the DB6R.

DB6 -- This year’s EICMA event was the first appearance of two new exciting colors for the Design Achievement Award winning DB6 – a striking blue and white version, a favorite of Bimota designer Enrico Borghesan, plus an elegant offering of the subdued color combination of orange and cream.

DB6R --The high performance DB6R returns in the classic Team Bimota colors of red, white and black. Sporting no less than 12 different all carbon fiber body components, a top of the line Brembo braking system with radial controls, an Extreme Tech rear shock and steering damper, exclusive ultra-light Bimota wheels and a racing ‘slipper clutch’, that are normally expensive racing upgrades, are fitted as standard equipment.

Technical Data

Engine

  • Ducati 1100 L-Twin cylinder 90°, 2 valves per cylinder, Dual spark, desmodromic valve actuation, air oil cooling
  • displacement: 1078 cc
  • bore: 98,0 mm
  • stroke: 71,5 mm
  • redline: 9000 rpm
  • injection Walbro
  • exhaust system: 2 in 1 in 2, stainless steel
  • clutch: dry multi-plate with hydraulic actuation

Chassis

  • Hybrid chrome moly tubular trellis frame with CNC machined plates and engine as a stressed member
  • wheelbase: 1430mm
  • seat height: 820mm
  • front suspension: Marzocchi R.A.C. upside down with TiN, fully adjustable diameter 50mm
    stroke 120 mm
  • rear suspension: Extreme Tech Monoshock, fully adjustable low/high speed wheel travel 130mm
  • front brake: dual ø 320mm, disc by Braking, Brembo radial callipers
  • rear Brake: ø 220mm disc by Brakiing, with Brembo calliper
  • front wheel: 3,5x17,0 light alloy, Continental 120/70 ZR 17
  • rear wheel: 5,5x17,0 light alloy, Continental 180/55 ZR 17
  • fuel capacity: 16 l (5 l reserve)
  • dry weight: 177 kg
