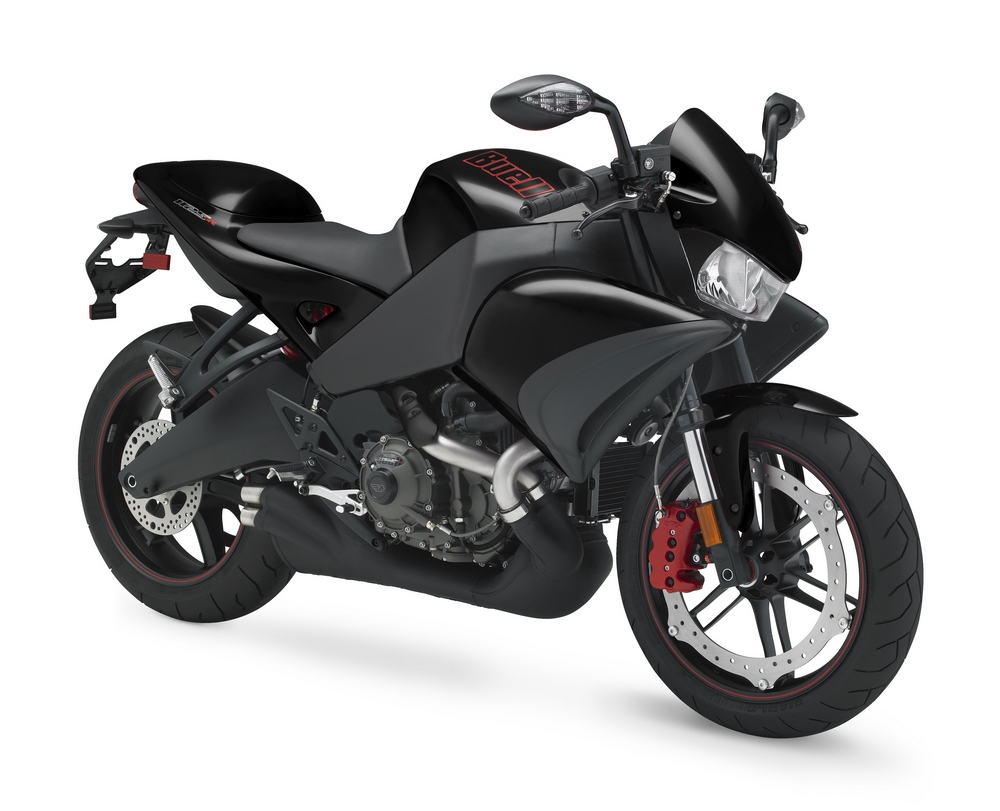

2009 Buell 1125CR

Buell 1125CR 2009 Buell 1125CR

Naked styling and clubman-style handlebars give a respectful nod to the nostalgic era of Café Racers, but styled in a thoroughly modern package. A 146-hp liquid-cooled V-Twin engine is geared down for optimum acceleration.

Sinister styling. Sophisticated technology. The 1125CR, Erik Buell’s 21st century interpretation of the classic Café Racer, is a new motorcycle that defies convention. Positioned behind the black-anodised, tapered aluminium handlebars and streamlined headlight and flyscreen, the rider has a wide-open view forward
that intensifies the sensation of speed. At 170kg, the 1125CR is the lightest litre-class naked street motorcycle on the market, and combined with 146 horsepower, it offers the best power-to-weight ratio in the category.

The Buell 1125CR offers liquid-cooled technology and responsive handling from a proven platform based on the Buell Trilogy of Tech principles. The Buell Helicon™ 1125 powertrain provides the foundation for this riding experience. This 1125cc DOHC V-Twin engine features a compact, 72-degree
design and is rated at 146 crankshaft horsepower and 82 ft. lbs. / 111 Nm of peak torque. Buell DDFI3 closed-loop EFI produces smooth throttle operation and better fuel economy. A ram-air system pressurises the 12-litre air box for a gain in peak performance. Twin side mounted radiators within aerodynamic
cowlings lower the centre of gravity and centralise mass. The exhaust system features a large-volume muffler mounted below the engine to optimise cg location and mass centralisation. An HVA (Hydraulic Vacuum Assist) Slipper Action clutch features hydraulic actuation from the hand control with assistance from engine vacuum for lighter clutch effort. Low 76/27 (2.815:1) final-drive gearing produces outstanding acceleration.

The engine is rigid-mounted as a structural component of the Buell Intuitive Response Chassis (IRC) that has outstanding torsional stiffness, yet is compliant in the planes required to help absorb mid-corner chatter, and
doubles as a 20.1 litre fuel reservoir. To enhance control under acceleration, the cast-aluminium swingarm is 5mm longer than the Buell 1125R swingarm. Showa® 47mm inverted forks and a Showa rear shock absorber are both fully adjustable. Positive braking performance is provided by the Buell ZTL2 front
brake system. The rear brake caliper is mounted directly to the inner surface of the swing arm and weighs 0.7kg less than a typical rear-brake design.

All this performance is packaged in a motorcycle that is visually stunning. A narrow headlight pod incorporates a clipped flyscreen, while a hard cowl covers the passenger seat section. The blacked-out frame and chassis components contrast with red highlights on the front brake caliper, wheel rims and rear shock spring. The Buell 1125CR will be offered with Racing Red or Midnight Black bodywork. For riders who prefer our traditional streetfighter bar we are launching a new black annodised handlebar as a P&A offering –
contact your local authorised dealer for further details and availability.

Buell 1125CR highlights

  • Buell Helicon 1125 liquid-cooled 72-degree V-Twin engine
  • 146 peak hp / 148 PS / 109 kW @ 9800 rpm (per EU Standard
    EC95/1)
  • 82 ft. lbs. / 111 Nm peak torque at 8000 rpm (per EU Standard EC95/1)
  • Large-volume muffler with Helmholtz chamber
  • DDFI III Electronic Fuel Injection ECM
  • Ram-air pressurised air box
  • Twin side-mount radiators
  • HVA (Hydraulic Vacuum Assist) Slipper Action clutch
  • ZTL2 8-piston front brake
  • Fully adjustable 47mm Showa inverted fork
  • Fully adjustable Showa rear shock absorber
  • Fuel-in Frame 20.1 litre capacity
  • Dry Weight: 170kg
  • Wheelbase: 1385mm
  • Seat height: 775mm
  • Pirelli® Diablo® Corsa III tyres
  • Pre-wired for easy installation of accessory Heated Grips

2009 Buell 1125CR Specifications

Brakes:

Front ...............................................ZTL²™ brake, 8-piston, 4 pads, fi xed caliper,
.............................. 375 mm single-sided, inside out, stainless steel, fl oating disc
Rear .............Two-piston, direct mount caliper; 240 mm, stainless steel, fi xed disc
Front Fork5 .....................47 mm Showa® inverted forks with adjustable compression
........................................................damping, rebound damping and spring preload
Rear Shock5 ............................ Showa® coil-over monoshock with external piggyback
....................................................... reservoir and adjustable compression damping,
.......................................................................rebound damping and spring preload

Suspension Travel

Front (mm) ..................................................................................................120
Rear (mm) ...................................................................................................127
Frame .............................................................Black aluminium frame, fuel in frame

Performance

Engine Torque (EU Standard EC95/1) ......................111 Nm / 82 ft. lbs. @ 8000 rpm
Horsepower (EU Standard EC95/1) .............. 146 hp / 148 PS / 109 kW @ 9800 rpm

Electrics

Charging .................................................37-amp, permanent magnet, three-phase,
...............................................solid-state regulator (500W@7000 rpm, 500W peak)
Starting ..............................................................900W electric with one-way clutch
Lights (as per country regulation):
Headlamps ....................... Six-bulb headlamp system with daylight running mode,
................................. 35-watt [H8] 70-watt low beam (Two bulbs, 35-watt each),
.....................................140-watt high beam (70-watt low beam with addditional
................................................................................... two bulbs, 35-watt each)
Tail/Stop Lights .....................................................................................5W/21W
Turn Signal Lights ............................................................. LED manual canceling
License Plate Light .......................................................................................5W
Styling/Convenience
Instruments ................................. Instrument cluster with ODIS (Onboard Diagnostic
.............................................. Information System) featuring analog tachometer with
..........................................integrated shift light, digital speedometer on LED display,
.................................... odometer, ODIS service code display, 4-digit security system
................................. with ignition immobiliser, lap timer (records up to 99 lap times)
......................................... and splits, ambient air temperature, coolant temperature,
..............................................average and instantaneous fuel consumption, miles to
................................... next service display, low fuel (plus miles traveled on reserve);
.....................................................................high beam, neutral, turn signals; clock

Colours

Midnight Black; Racing Red

Warranty

2 Year, unlimited mileage warranty (Europe);
1 Year Buell Assistance roadside assistance (Europe)

Dimensions

Length (mm)2 .................................................................................................2066
Seat Height (Laden, mm)3 .................................................................................778
Ground Clearance (mm)2 ..................................................................................138
Rake at steering head (°) / Trail (mm)3 ..........................................................21 / 84
Fork Angle (°)3 ...................................................................................................21

Lean Angles

Soft Contact, Degrees Right ...........................................................................48
Soft Contact, Degrees Left .............................................................................48
Hard Contact, Degrees Right ..........................................................................50
Hard Contact, Degrees Left ............................................................................50
Wheelbase (mm)2 ...........................................................................................1385
Fuel Capacity (litres) ........................................................................................ 20.1
Oil Capacity (litres) ............................................................................................ 2.6
Dry Weight (kg) ................................................................................................170

Powertrain

Engine ................................................. Helicon™ liquid-cooled, 4-stroke, 72° V-Twin
Displacement (cu.cm) .....................................................................................1125
Bore x Stroke (mm) ................................................................................103 x 67.5
Fuel System .................. Dual 61 mm down draft throttle bodies, DDFI III fuel injection
Compression Ratio ....................................................................................... 12.3:1
Exhaust ..........................................Tuned, tri-pass resonance chamber with integral
..................................................... helmholtz tuning and mass-centralised mounting
Intake ..........................................Zero-resistance airbox, pressurized RAM air intake

Wheels/Tyres

Tyres
Front ........................................................Pirelli® Diablo® Corsa III 120/70 ZR-17
Rear ........................................................ Pirelli® Diablo® Corsa III 180/55 ZR-17

Wheels

Colour ............................................................................................ Velvacoat Black
Front ....................................................................6-spoke, ZTL™ cast aluminium
.........................................................................................................17” x 3.5”
Rear .............................................................................6-spoke, cast aluminium
.........................................................................................................17” x 5.5”

Drivetrain

Primary Drive .................................................................. Helical Gear, 1.806:1 ratio
Final Drive6 ........................................ Constant path, 14mm pitch aramid-reinforced
.......................... Veyance® Hibrex® belt with Flexten® Plus technology, 2.815:1 ratio
Clutch ...............................Wet, multi-plate, Hydraulic Vacuum Assist (HVA) slipper –
.................................................................action clutch, hydraulic clutch lever effort
Transmission ................................................................. 6-speed, straight cut gears

Gear Ratios:

1st ............................................................................................................ 2.46
2nd ........................................................................................................... 1.75
3rd ............................................................................................................ 1.38
4th ............................................................................................................ 1.17
5th ............................................................................................................ 1.04
6th ............................................................................................................ 0.96

Footnotes

  • Buell reserves the right to discontinue models or change specifi cations at any time without incurring any obligations. Vehicle specifi cations may vary from country to country depending on local laws. Some models are not available in certain countries.
  • Unladen, wet confi guration (no rider, all fl uids).
  • Laden, wet confi guration (design rider, all fl uids).
  • Bottomed-out confi guration (100% suspension compression).
  • Pirelli® and Showa® are registered trademarks of their respective owners.
  • Hibrex® and Flexten® are registered trademarks of the Goodyear Tire & Rubber Company.
