2009 Buell Lightning XB12Scg

2009 Buell Lightning XB12Scg Buell Lightning XB12Scg Buell XB12Scg

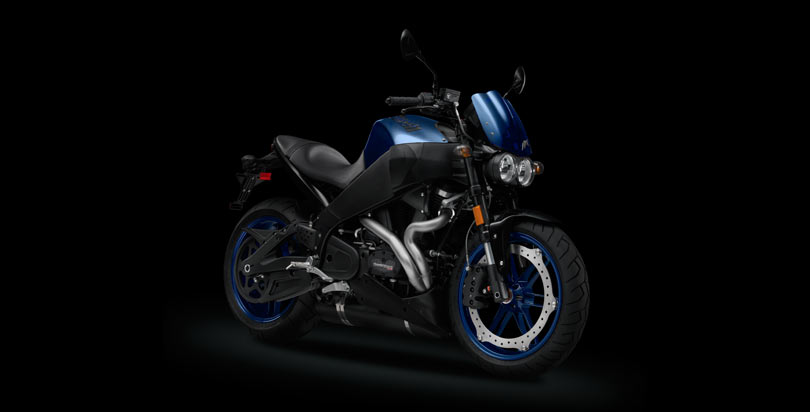

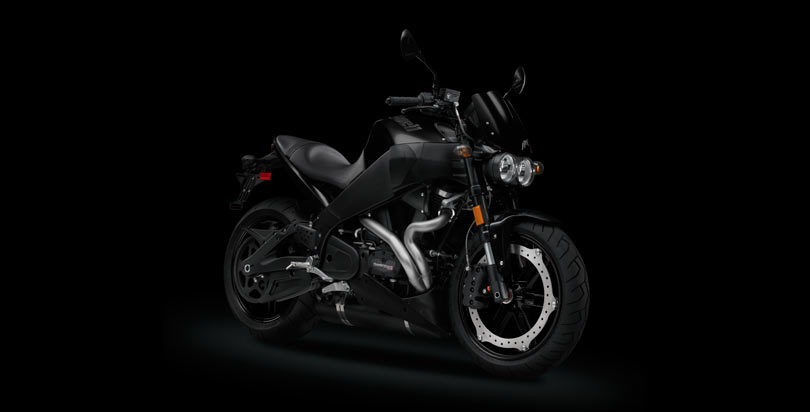

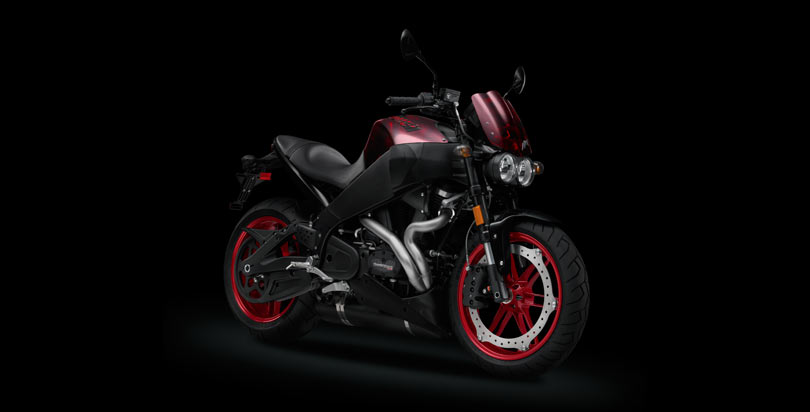

Lowered suspension and a reshaped saddle drops the seat height of the XB12Scg to just 726mm – for a lower centre of gravity and a shorter reach to the ground – with no compromise to handling or performance. The powerful Buell ZTL2 eight-piston front brake caliper is new for 2009. Blacked-out engine, frame, swingarm, fork and other components give the XB12Scg a menacing new look. The muscular Buell Thunderstorm 1203 V-Twin backs it up with pavement-pounding power. Available with Midnight Black, Cherry Bomb Translucent or Hero Blue Translucent bodywork.

Buell Lightning XB12Scg highlights

  • Buell Thunderstorm 1203 air/oil/fan-cooled V-Twin engine
  • 94 peak hp / 95 PS / 70 kW @ 6800 rpm (per EU Standard EC95/1)
    77 ft. lbs. / 104 Nm peak torque @ 5500 rpm (per EU Standard
    EC95/1)
  • Buell InterActive Exhaust
  • DDFI III Electronic Fuel Injection ECM
  • Eight-row oil cooler with Jiffy-tite fittings
  • New stronger Veyance Hibrex drive belt with Flexten Plus technology
  • Fully adjustable 43mm Showa inverted fork
  • Fully adjustable Showa rear shock absorber
  • New Buell ZTL2 front brake with eight-piston caliper
  • Dry Weight: 179kg
  • Wheelbase: 1320mm
  • Seat height: 726mm
  • Cosmetic Frame Protectors
  • Pre-Wired for Accessory Heated Grips
  • Pirelli Diablo T tyres
  • Available with Translucent bodywork
  • New black engine, frame, swingarm, powertrain and forks

2009 Buell Lightning XB12Scg - Specifications

Brakes:

Front ............................ZTL2™ brake, 8-piston, fi xed caliper, 375 mm single sided,
............................................................... inside-out, stainless steel, fl oating disc
Rear ...................Single piston, fl oating caliper; 240 mm stainless steel, fi xed disc
Front Fork5 .....................41 mm Showa® inverted forks with adjustable compression
....................................................... damping, rebound damping, and spring preload
Rear Shock5 ........ Showa® coil-over monoshock with remote under-seat reservoir and
................... adjustable compression damping, rebound damping, and spring preload

Suspension Travel:

Front (mm) ....................................................................................................79
Rear (mm) .....................................................................................................90
Frame ........................................ Black aluminium frame with Uniplanar™ powertrain
....................................................................vibration isolation system, fuel in frame

Performance

Engine Torque (EU standard EC95/1) ..................... 104 NM / 77 ft.lbs. @ 5500 RPM
Horsepower (EU standard EC95/1) ..................... 94hp / 95 PS / 70kW @ 6800 RPM

Electrics

Charging ..................................30-amp, permanent magnet, single-phase alternator
...................................... with solid-state regulator (405W @3000 rpm, 405W peak)
Starting ........................1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):

Headlamps .........Twin Quartz Halogen [H7] 55-watt low beam, 55-watt high beam
Tail/Stop Lights ...................................................................................5W / 21W
Turn Signal Lights ............................................................ 10W manual canceling
License Plate Light .......................................................................................5W

Styling/Convenience

Instruments ............ Electronic speedometer, tachometer, odometer; dual tripmeter;
...................... high beam, neutral, oil, low fuel (plus, odometer shows miles traveled
.........................on reserve), turn signal and engine diagnostic indicator lamps; clock

Colours

Cherry Bomb Translucent; Hero Blue Translucent; Midnight Black

Warranty

2 Year, unlimited mileage warranty (Europe).
1 Year Buell Assistance roadside assistance (Europe).

Dimensions

Length (mm)2 .................................................................................................1950
Seat Height (Laden, mm)3 .................................................................................726
Ground Clearance (mm)2 ....................................................................................90
Rake at Steering Head (º) / Trail (mm)3 ...........................................................21/ 84
Fork Angle (º)3 ....................................................................................................21

Lean Angles:

Soft Contact, Degrees Right ...........................................................................42
Soft Contact, Degrees Left .............................................................................42
Hard Contact, Degrees Right ..........................................................................50
Hard Contact, Degrees Left ............................................................................48
Wheelbase (mm)2 ...........................................................................................1320
Fuel Capacity (litres) ........................................................................................ 14.5
Oil Capacity (litres) ............................................................................................ 2.4
Dry Weight (kg) ................................................................................................179

Powertrain

Engine ..................................Thunderstorm™ air/oil/fan-cooled, 4-stroke, 45° V-Twin
Displacement (cu.cm) .....................................................................................1203
Bore x Stroke (mm) ...............................................................................88.9 x 96.8
Fuel System .................................................49 mm down draft DDFI III fuel injection
Compression Ratio ....................................................................................... 10.0:1
Exhaust .............................Tuned, tri-pass resonance chamber with InterActive valve
.............................................................................. and mass-centralised mounting
Intake ................................................................................... Zero-resistance airbox

Tyres

Front ..........................................................Pirelli® Diablo® T 120/70 ZR-17 58W
Rear .........................................................Pirelli® Diablo® T 180/55 ZR-17 73W

Wheels:

Colour .................... Cherry Bomb Translucent; Hero Blue Translucent; Midnight Black
Front ....................................................................6-spoke, ZTL™ cast aluminium
.........................................................................................................17” x 3.5”
Rear .............................................................................6-spoke, cast aluminium
.........................................................................................................17” x 5.5”

Drivetrain

Primary Drive ........................................................................... Chain, 1.500:1 ratio
Final Drive6 ................................ New constant path, 14 mm pitch aramid-reinforced
............................ Veyance Hibrex® belt with Flexten® Plus technology, 2.407:1 ratio
Clutch ......................................................................Wet, multi-plate, compensated
Transmission .......................................................................... 5-speed, helical gear

Gear Ratios:

1st ............................................................................................................ 2.65
2nd ........................................................................................................... 1.89
3rd ............................................................................................................ 1.41
4th ............................................................................................................ 1.17
5th ............................................................................................................ 1.00
