2009 Harley Davidson FLSTF Fat Boy

Harley Davidson Fat BoyHarley Davidson FLSTF Fat Boy2009 Harley Davidson FLSTF Fat Boy


FLSTF Fat Boy

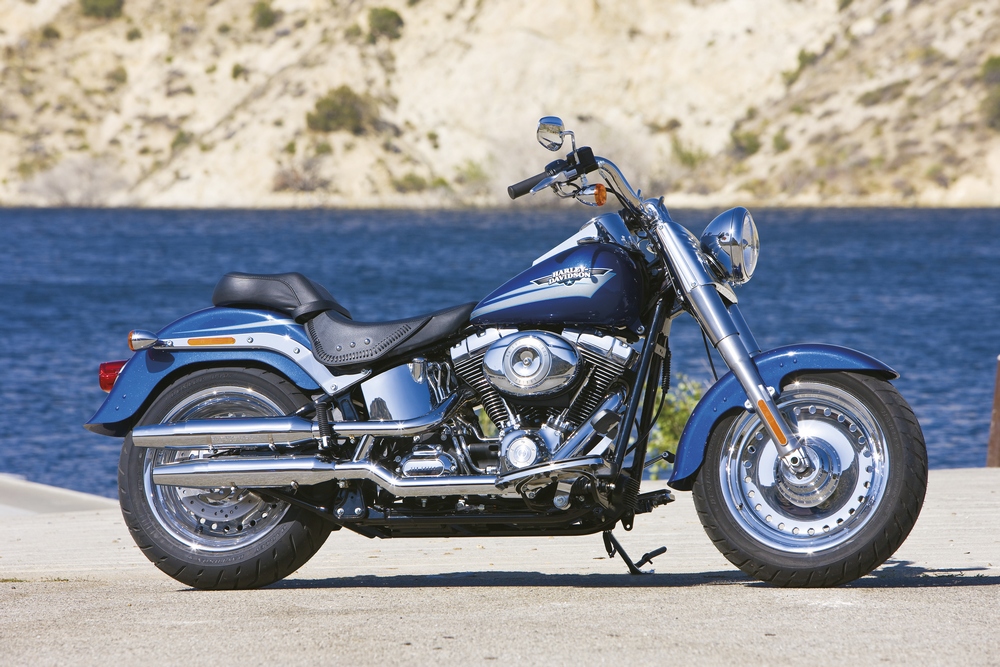

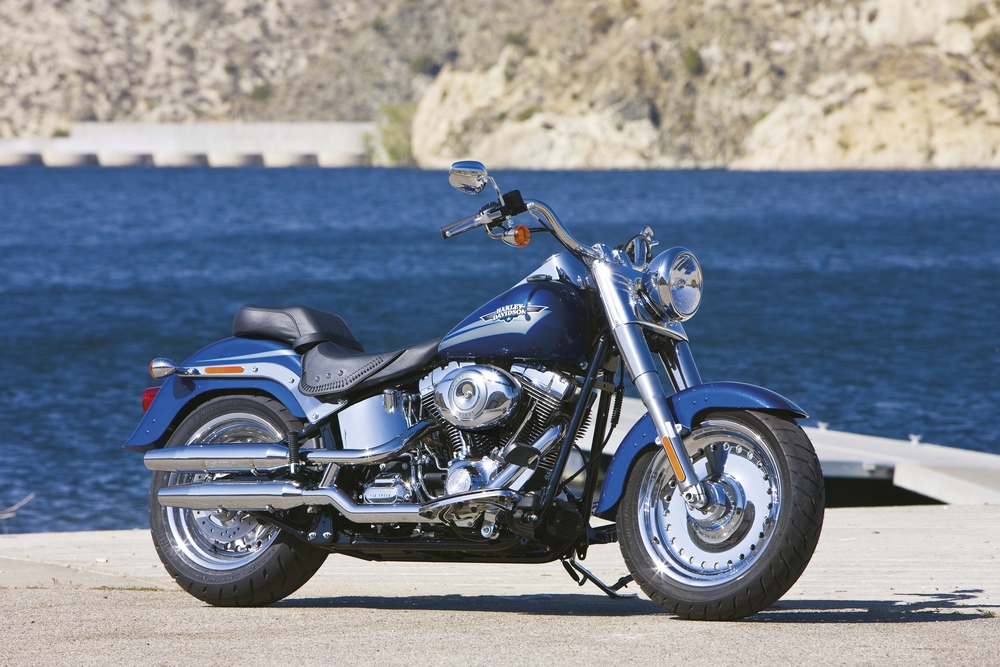

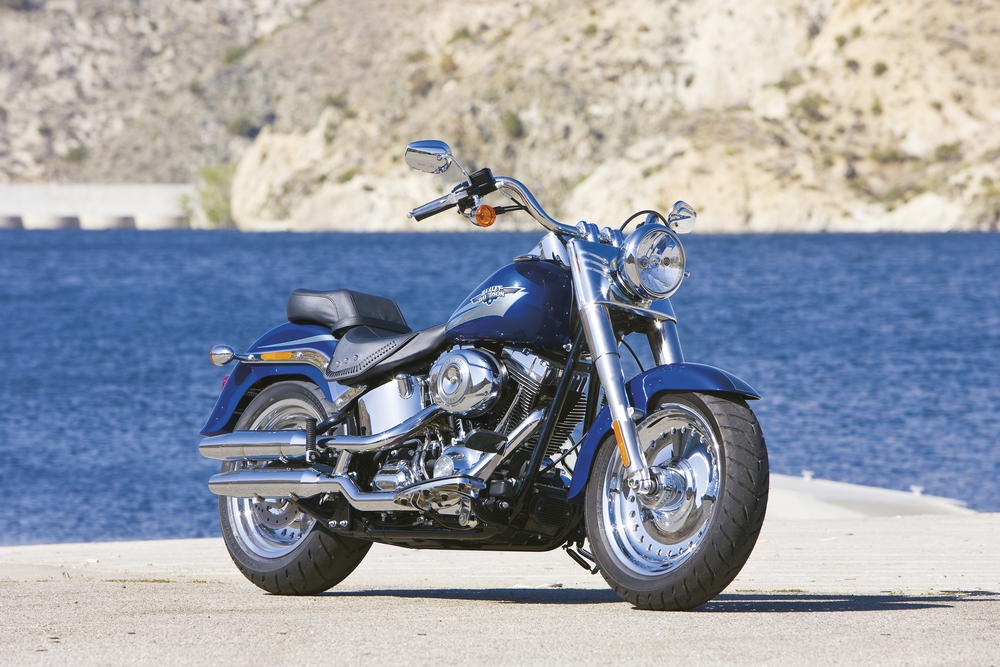

One of the world’s most distinctive motorcycles, the FLSTF Fat Boy rolls with a size and stature second to none. The Fat Boy rides wide on a 200mm rear tyre hugged by a deep rear fender with a 17-inch front wheel and bright chrome fork nacelle. Unique premium components like bullet-hole disc aluminium wheels and fat front forks identify this Softail as the iconic Fat Boy.

FLSTF Fat Boy features:

  • Rigid-mounted, 1584cc Twin Cam 96B engine
  • 6-speed Cruise Drive transmission
  • Active intake and exhaust system
  • Black powdercoated engine with chrome covers
  • Chrome over/under shotgun exhaust with dual mufflers
  • Chrome horseshoe oil tank
  • Mirror polished, chrome plated, bullet-hole disc, cast aluminium 17-inch wheels
  • Two-tone seat with bullet laced valence
  • 31.75 mm custom internally wired handlebar with bare knuckle risers
  • 18.9 litre traditional Fat Bob fuel tank with laced triple bullet strap
  • Chrome front fork nacelle
  • Full-length floorboards
  • 32-degree FL front forks and custom front fender
  • Large chrome headlight
  • Smart Security System

Chassis

Brakes, Dia (Front/Rear, mm) .................................................................. 292 / 292
Caliper Type ...........................................................4-piston front and 2-piston rear
Front Fork ....................................................41.3mm telescopic, “beer can” covers
Rear Shocks .................................................Hidden, horizontal-mounted, coil-over

Suspension Travel:
Front (mm) .................................................................................................130
Rear (mm) ..................................................................................................109
Frame ............................... Mild steel tubular frame; rectangular section backbone;
.............. stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm .................Mild steel, round tube sections, forged junctions; MIG welded

Performance

Engine Torque (EU Standard EC95/1)5 ....................120 Nm / 89 ft lbs @ 3300 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) .......................................... 28 / 30

Electrical

Charging ...................................................................Three-phase, 38-amp system
............................................... (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting..................... 1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):

Headlamp .................... Quartz Halogen, 55-watt low beam, 60-watt high beam
Tail/Stop Lights....................................................................................5W/21W
Turn Signal Lights ............................................................... 21W self-canceling
Instruments ........................Tank-mounted electronic speedometer with odometer;
.......................................................... Time-of-day clock; Dual resettable tripmeter
Indicator Lamps ......................... High beam, neutral, low oil pressure, turn signals,
......................................................................engine diagnostics, security system6,
.....................................................................................6-speed, low fuel warnings

Colour Options

Vivid Black; Black Pearl; Pewter Pearl; Flame Blue Pearl; Black Denim; Red Hot Sunglo

Model Features

Black powder-coated engine with chrome treatment covers; Chrome, “horseshoe” oil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, bullet headlamp; Chrome, isolated riser; Full-length rider footboards; Standard passenger footpegs; Chrome, internally-wired handlebars; Two-piece,
two-up Softail classic seat with removable seat pillion

Warranty

Warranty .................................................................24 months (unlimited mileage)
Service Interval .........................................................First 1,000 miles (1,600 km),
................................................................. every 5,000 miles (8,000 km) thereafter

Dimensions

Length (mm) ...................................................................................................2396
Seat Height (mm)2 .............................................................................................645
Ground Clearance (mm) ....................................................................................130
Rake at steering head (°) / Trail (mm) ........................................................ 32 / 147
Fork Angle ........................................................................................................32°
Wheelbase (mm) .............................................................................................1635
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................2.9
Dry Weight (kg) .................................................................................................313

Powertrain

Engine .........................................................................Air-cooled, Twin Cam 96B
Displacement (cu.cm) .....................................................................................1584
Bore x Stroke (mm) .............................................................................95.3 x 111.1
Fuel System ...................................Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.2:1
Exhaust System ................Chrome, over/under shotgun exhaust with dual mufflers

Tyres:

Front .............................................................................D407F 140/75R17 67V
Rear ............................................................................... D407 200/55R17 78V

Wheels:

Front .......... 17” Mirror polished chrome plated bullet hole disc cast aluminium
Rear ........... 17” Mirror polished chrome plated bullet hole disc cast aluminium

Drivetrain

Primary Drive ..............................................................................Chain, 34/46 ratio
Final Drive .....................................................................................Belt, 32/66 ratio
Clutch .................................................................................................. 9-plate, wet
Transmission .......................................................................6-speed Cruise Drive
Gear Ratios:
1st ............................................................................................................ 9.31
2nd ........................................................................................................... 6.42
3rd ............................................................................................................ 4.77
4th ............................................................................................................ 3.93
5th ............................................................................................................ 3.28
6th ............................................................................................................ 2.79
