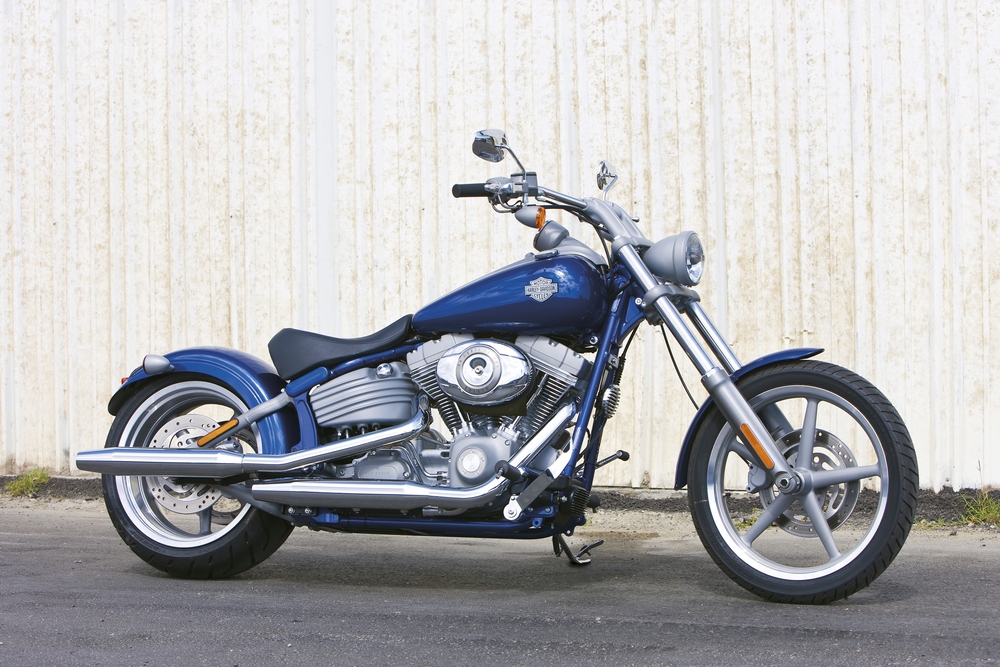

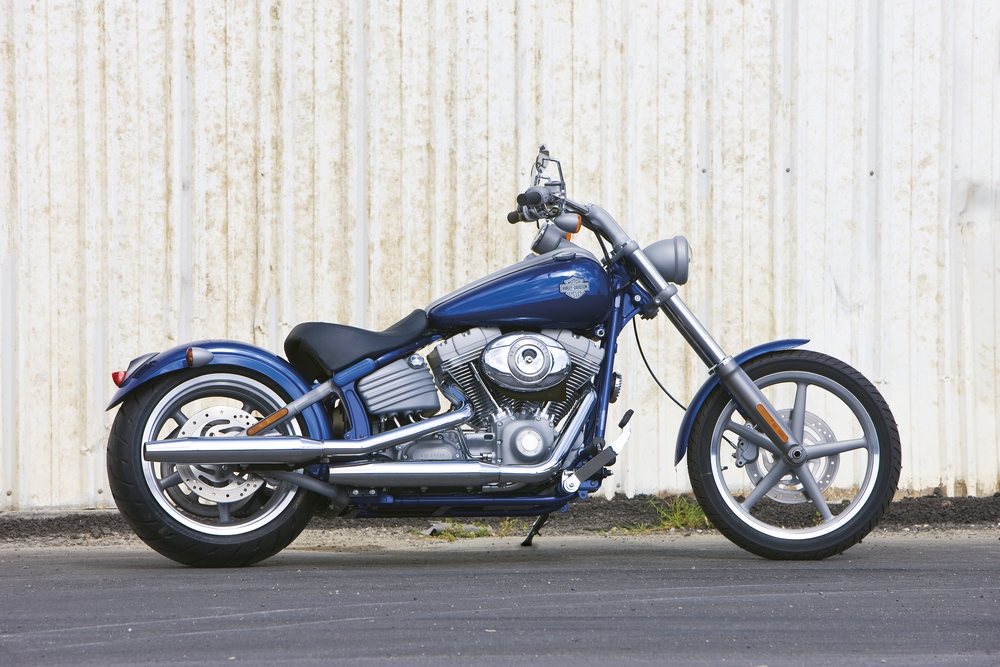

2009 Harley Davidson FXCW Softail Rocker

Harley Davidson FXCW Softail Rocker2009 Harley Davidson FXCW Softail Rocker

FXCW Softail Rocker

The Rocker offers authentic hard-tail chopper style with innovative ideas that could only be produced by Harley-Davidson. The Rockertail rear section mounts a wide fender directly to the swingarm, over a big 18-inch rear tyre. The Rocker rear fender and wheel move in unison as the Rockertail glides through 79mm of rear suspension travel. A monochromatic silver stainless steel powdercoated paint scheme highlights the custom look. The solo seat is just 622mm off the ground.

FXCW Rocker features

  • Rigid-mounted, 1584cc Twin Cam 96B engine
  • 6-speed
  • Cruise Drive transmission
  • Active intake and exhaust system
  • Silver powdercoated engine with satin stainless steel powder coat covers
  • Chrome, staggered shorty exhaust with dual mufflers
  • New low profile front fender
  • Finned cast-aluminium, horseshoe oil tank
  • Satin stainless metallic powdercoat, cast aluminium, tapered five spoke
  • 19-inch front / 18-inch rear wheels
  • Rockertail rear section
  • Stretched fuel tank with recessed medallion
  • Solo saddle
  • V-bar handlebars
  • Console-mounted speedometer
  • Satin stainless metallic powdercoat fork lowers, oil tank, headlamp bucket, swingarm and other components
  • Colour-matched frame
  • Smart Security System

Chassis

Brakes, Dia (Front/Rear, mm) .................................................................. 292 / 292
Caliper Type ...........................................................4-piston front and 2-piston rear
Front Fork .................................................................................... 49mm telescopic
Rear Shocks .................................................Hidden, horizontal-mounted, coil-over

Suspension Travel:
Front (mm) .................................................................................................127
Rear (mm) ....................................................................................................79
Frame ............................... Mild steel tubular frame; rectangular section backbone;
.............. stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm .............Mild steel, elliptical tube sections, forged junctions; MIG welded

Performance

Engine Torque (EU Standard EC95/1)5 ....................117 Nm / 86 ft lbs @ 3200 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) .................................... 29.5 / 32.5

Electrical

Charging ...................................................................Three-phase, 38-amp system
............................................... (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting..................... 1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):

Headlamp .................... Quartz Halogen, 55-watt low beam, 60-watt high beam
Tail/Stop Lights.......................................................................... Integrated LED
Turn Signal Lights .......................................................................................LED
Instruments ........................Tank-mounted electronic speedometer with odometer;
.......................................................... Time-of-day clock; Dual resettable tripmeter
Indicator Lamps ......................... High beam, neutral, low oil pressure, turn signals,
......................................................................engine diagnostics, security system,
.....................................................................................6-speed, low fuel warnings

Colour Options

Vivid Black; Vivid Black Deluxe; Flame Blue Pearl; Crimson Red Sunglo

Model Features

Silver powder-coated engine; Custom fi nned cast aluminium “horseshoe” oil tank with chrome external oil lines; Painted, stretch low-profi le tank console; Fire-truck inspired bullet headlamp; Bullet style LED turn signals; Adjustable, V-bar riser; Forward-mounted rider footpegs; Stainless steel, pull-back, internally-wired
handlebars; Lowest seat height of all Harley-Davidson® motorcycles; New lowprofile front fender

Warranty

Warranty .................................................................24 months (unlimited mileage)
Service Interval .........................................................First 1,000 miles (1,600 km),
................................................................. every 5,000 miles (8,000 km) thereafter

Dimensions

Length (mm) ...................................................................................................2415
Seat Height (mm)2 .............................................................................................622
Ground Clearance (mm) ....................................................................................135
Rake at steering head (°) / Trail (mm) ..................................................... 36.5 / 157
Fork Angle .....................................................................................................37.5°
Wheelbase (mm) .............................................................................................1760
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................3.3
Dry Weight (kg) .................................................................................................307

Powertrain

Engine .........................................................................Air-cooled, Twin Cam 96B
Displacement (cu.cm) .....................................................................................1584
Bore x Stroke (mm) .............................................................................95.3 x 111.1
Fuel System ...................................Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.2:1
Exhaust System ....................Chrome, staggered shorty exhaust with dual mufflers

Tyres:

Front ...............................................................................D407 90/90R-19 52H
Rear ............................................................................... D407 240/40R18 79V

Wheels:

Front ........19” Stainless steel satin powdercoat paint, 5-spoke cast aluminium
Rear .........18” Stainless steel satin powdercoat paint, 5-spoke cast aluminium

Drivetrain

Primary Drive ..............................................................................Chain, 34/46 ratio
Final Drive .....................................................................................Belt, 32/66 ratio
Clutch .................................................................................................. 9-plate, wet
Transmission .......................................................................6-speed Cruise Drive

Gear Ratios:
1st ............................................................................................................ 9.31
2nd ........................................................................................................... 6.42
3rd ............................................................................................................ 4.77
4th ............................................................................................................ 3.93
5th ............................................................................................................ 3.28
6th ............................................................................................................ 2.79
