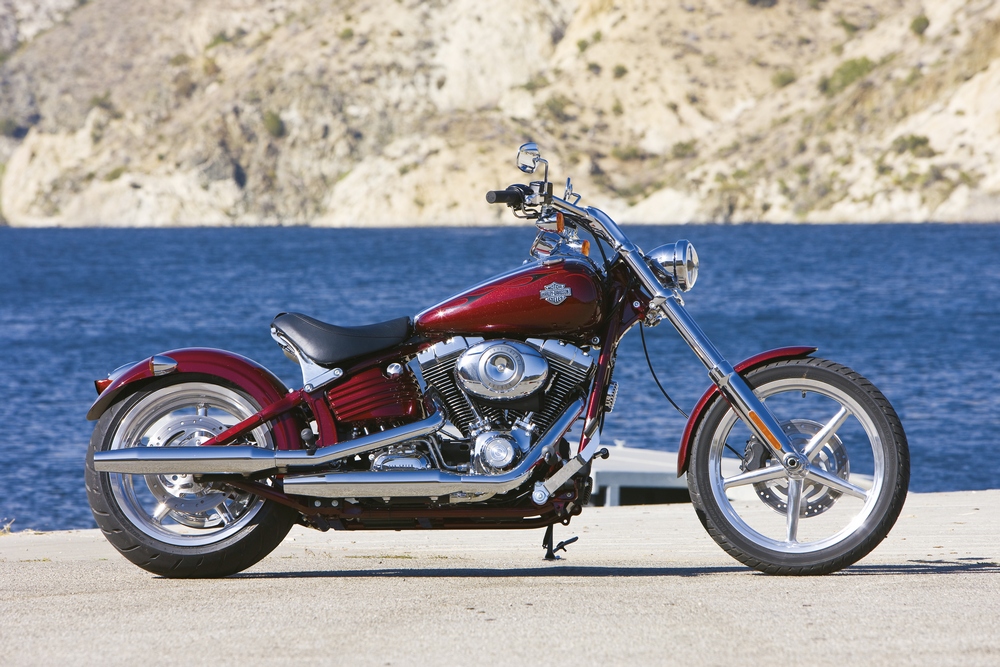

2009 Harley Davidson FXCWC Softail Rocker

Harley Davidson Softail RockerHarley Davidson FXCWC Softail Rocker2009 Harley Davidson FXCWC Softail Rocker

FXCWC Rocker C

As the chrome-laden version of the Rocker, the Rocker C features an industry-first ‘Trick’ seat design, which hides a passenger pillion and struts under the solo seat. To accommodate a riding partner, simply lift up the solo seat and install the concealed passenger pillion over the Rockertail rear section for surprisingly comfortable two-up riding. In contrast to the more understated Rocker model, many components are chrome plated, including the headlamp and triple clamps, the handlebar riser, the fork lowers, and the tank console and speedometer. The finned aluminium oil tank, frame and swingarm are colour-matched to the sheet metal, which features flame graphics.

FXCWC Rocker C features

  • Rigid-mounted, 1584cc Twin Cam 96B engine
  • 6-speed
  • Cruise Drive transmission
  • Active intake and exhaust system
  • Black powdercoated engine with chrome covers
  • Chrome, staggered shorty exhaust with dual mufflers
  • New low profile front fender
  • Finned cast-aluminium oil tank
  • Polished, cast aluminium, tapered five spoke 19-inch front/18-inch rear wheels
  • Rockertail rear section
  • Stretched fuel tank with recessed cloisonné medallion
  • ‘Trick’ two-in-one seat with concealed passenger pillion
  • Independent V-bar handlebars
  • Console-mounted speed shop style speedometer
  • Colour-matched frame, swingarm and oil tank
  • Chrome fork lowers, headlamp, console, speedometer and other components
  • Smart Security System

Chassis

Brakes, Dia (Front/Rear, mm) .................................................................. 292 / 292
Caliper Type ...........................................................4-piston front and 2-piston rear
Front Fork .................................................................................... 49mm telescopic
Rear Shocks .................................................Hidden, horizontal-mounted, coil-over

Suspension Travel:
Front (mm) .................................................................................................127
Rear (mm) ....................................................................................................79
Frame ................ Mild steel tubular frame; rectangular section backbone; stamped,
..............................cast, and forged junctions; forged fender supports; MIG welded
Swingarm .............Mild steel, elliptical tube sections, forged junctions; MIG welded

Performance

Engine Torque (EU Standard EC95/1)5 ....................117 Nm / 86 ft lbs @ 3200 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) .................................... 29.5 / 32.5

Electrical

Charging ...................................................................Three-phase, 38-amp system
............................................... (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting..................... 1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):

Headlamp .................... Quartz Halogen, 55-watt low beam, 60-watt high beam
Tail/Stop Lights.......................................................................... Integrated LED
Turn Signal Lights .......................................................................................LED
Instruments ........................Tank-mounted electronic speedometer with odometer;
......................................................... Time-of-day clock; Dual resettable tripmeter
Indicator Lamps ......................... High beam, neutral, low oil pressure, turn signals,
......................................................................engine diagnostics, security system,
.....................................................................................6-speed, low fuel warnings

Colour Options

Vivid Black Deluxe; Flame Blue Pearl Deluxe; Crimson Red Sunglo Deluxe

Model Features

Black powder-coated engine with chrome treatment covers; Colour-matched “horseshoe” oil tank with chrome external oil lines; Chrome, stretch low-profile tank console; Cloisonne 3-D tank medallions; Chrome, fire-truck inspired bullet headlamp; Bullet style LED turn signals; Adjustable, V-bar riser; Forward-mounted
rider footpegs; Standard passenger footpegs; Stainless steel, pull-back, internally-wired handlebars; Solo style “Trick” two-in-one seat; New low profile front fender

Warranty

Warranty .................................................................24 months (unlimited mileage)
Service Interval .........................................................First 1,000 miles (1,600 km),
................................................................. every 5,000 miles (8,000 km) thereafter

Dimensions

Length (mm) ...................................................................................................2415
Seat Height (mm)2 .............................................................................................641
Ground Clearance (mm) ....................................................................................135
Rake at steering head (°) / Trail (mm) ..................................................... 36.5 / 157
Fork Angle ......................................................................................................37.5°
Wheelbase (mm) .............................................................................................1760
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................3.3
Dry Weight (kg) .................................................................................................307

Powertrain

Engine .......................................................................Air-cooled, Twin Cam 96B
Displacement (cu.cm) .....................................................................................1584
Bore x Stroke (mm) .............................................................................95.3 x 111.1
Fuel System ...................................Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.2:1
Exhaust System ....................Chrome, staggered shorty exhaust with dual mufflers

Tyres:

Front ...............................................................................D407 90/90R-19 52H
Rear ............................................................................... D407 240/40R18 79V

Wheels:

Front ......................................................19” Polished, 5-spoke cast aluminium
Rear .......................................................18” Polished, 5-spoke cast aluminium

Drivetrain

Primary Drive ..............................................................................Chain, 34/46 ratio
Final Drive .....................................................................................Belt, 32/66 ratio
Clutch .................................................................................................. 9-plate, wet
Transmission .......................................................................6-speed Cruise Drive
Gear Ratios:
1st ............................................................................................................ 9.31
2nd ........................................................................................................... 6.42
3rd ............................................................................................................ 4.77
4th ............................................................................................................ 3.93
5th ............................................................................................................ 3.28
6th ............................................................................................................ 2.79
