2009 Harley Davidson FXSTC Softail Custom

2009 Harley Davidson FXSTC Softail Custom2009 Harley Davidson FXSTC Softail CustomSoftail Custom

FXSTC Softail Custom

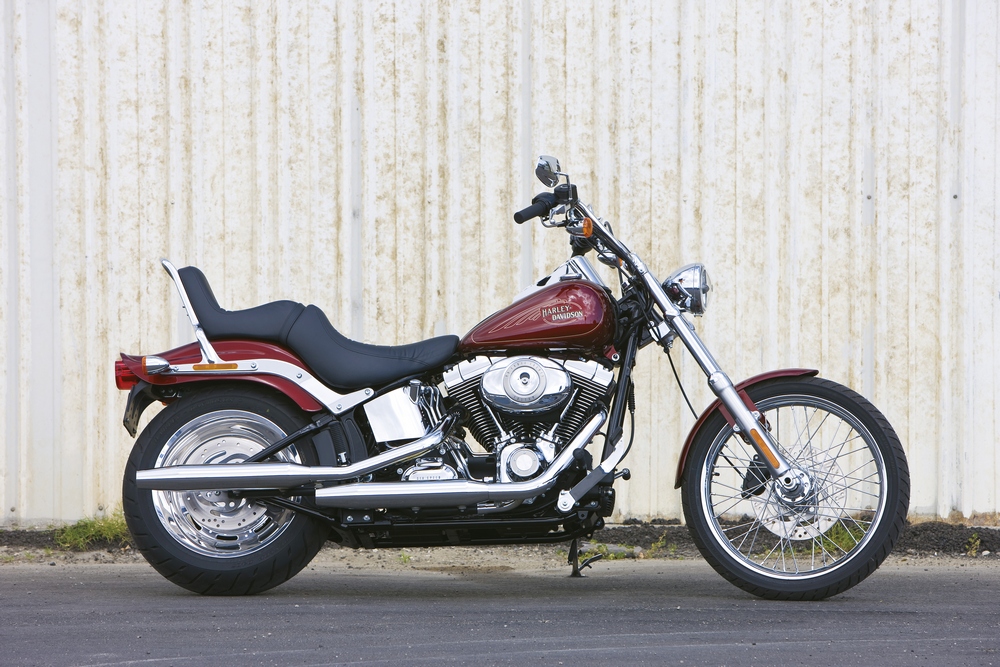

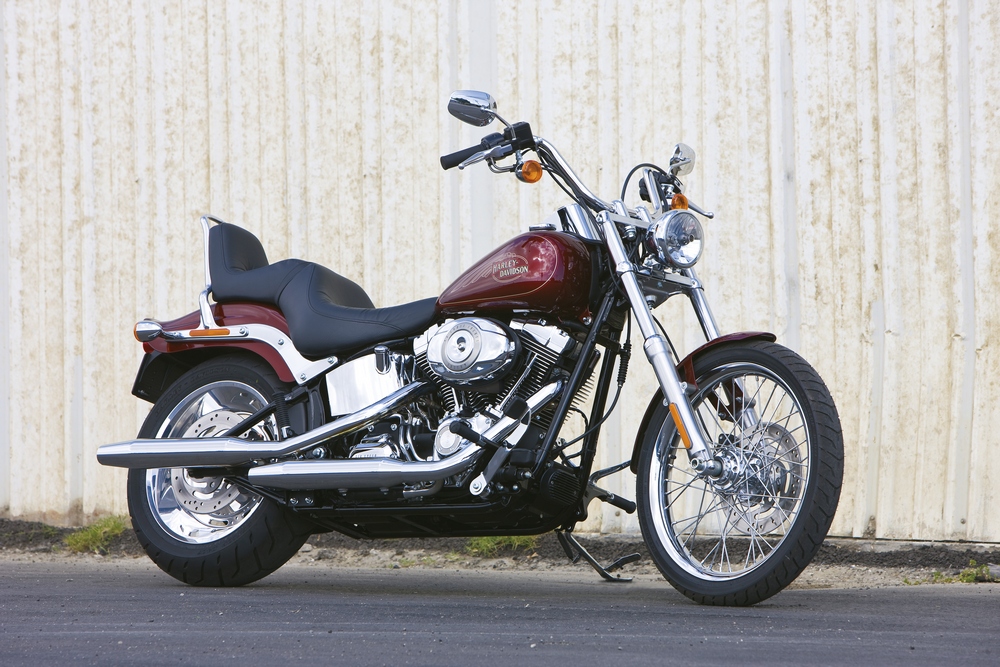

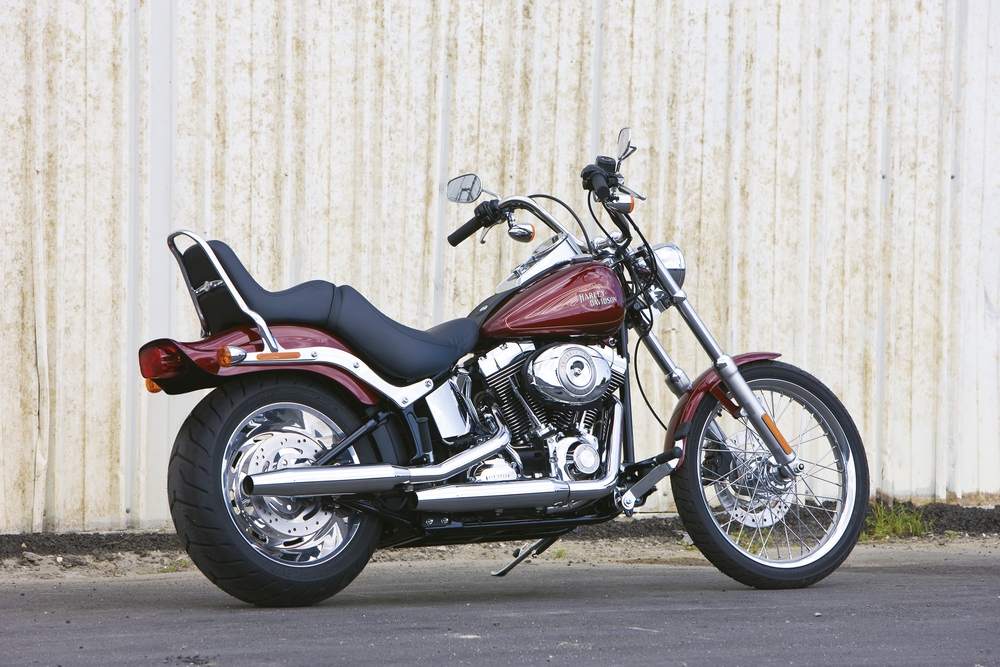

The FXSTC Softail Custom puts fists in the breeze and feet forward with a chopper profile straight from the 1970’s custom era. The plush king and queen seat flows up an integrated aluminium one-piece backrest, providing a comfortable perch for rider and passenger. A new low-profile front fender hugs the 21-inch profile laced front wheel and tyre. Profile ape-hanger handlebars on bare-knuckle risers and the Fat Bob fuel tank with embossed leather tank strap and triple laid custom graphics accentuate the cool look. A 200mm rear tyre and bobtail fender add authority to the rear end, while chrome details on the powertrain and oil tank contrast the black powdercoated engine.

FXSTC Softail Custom features:

  • Rigid-mount, 1584cc Twin Cam 96B engine
  • 6-Speed
  • Cruise Drive transmission
  • Active intake and exhaust system
  • Black powdercoated engine with chrome covers
  • Profile ape-hanger handlebar with new bare knuckle risers
  • New low profile front fender
  • Chrome staggered shorty exhaust system
  • Chrome oil tank
  • Polished, slotted disc forged aluminium 17-inch rear wheel
  • Chrome profile laced aluminuim 21-inch front wheel
  • Bobtail rear fender
  • Chrome button tufted two-up seat with chrome backrest
  • 18.9 litre Fat Bob fuel tank with custom-sewn, leather strap
  • Forward-mounted foot controls
  • 33.5-degree FX front forks
  • Smart Security System

Dimensions

Length (mm) ...................................................................................................2410
Seat Height (mm)2 .............................................................................................672
Ground Clearance (mm) ....................................................................................130
Rake at steering head (°) / Trail (mm) ........................................................ 32 / 147
Fork Angle .....................................................................................................33.5°
Wheelbase (mm) .............................................................................................1700
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................2.9
Dry Weight (kg) .................................................................................................303

Powertrain

Engine .........................................................................Air-cooled, Twin Cam 96B
Displacement (cu.cm) .....................................................................................1584
Bore x Stroke (mm) .............................................................................95.3 x 111.1
Fuel System ...................................Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio ..........................................................................................9.2:1
Exhaust System ....................Chrome, staggered shorty exhaust with dual mufflers

Tyres:

Front ...............................................................................D402F MH90-21 54H
Rear ............................................................................... D407 200/55R17 78V

Wheels:

Front ........................................................ 21” Chrome aluminium profile laced
Rear ..............................................17” Slotted, forged polished aluminium disc

Drivetrain

Primary Drive ..............................................................................Chain, 34/46 ratio
Final Drive .....................................................................................Belt, 32/66 ratio
Clutch .................................................................................................. 9-plate, wet
Transmission .......................................................................6-speed Cruise Drive

Gear Ratios:
1st ............................................................................................................ 9.31
2nd ........................................................................................................... 6.42
3rd ............................................................................................................ 4.77
4th ............................................................................................................ 3.93
5th ............................................................................................................ 3.28
6th ............................................................................................................ 2.79

Chassis

Brakes, Dia (Front/Rear, mm) .................................................................. 292 / 292
Caliper Type ...........................................................4-piston front and 2-piston rear
Front Fork .................................................41.3mm telescopic, chrome dust covers
Rear Shocks .................................................Hidden, horizontal-mounted, coil-over

Suspension Travel:
Front (mm) .................................................................................................142
Rear (mm) ..................................................................................................109
Frame ............................... Mild steel tubular frame; rectangular section backbone;
.............. stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm .................Mild steel, round tube sections, forged junctions; MIG welded

Performance

Engine Torque (EU Standard EC95/1)5 ....................117 Nm / 86 ft lbs @ 3200 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) .......................................... 31 / 34

Electrical

Charging ...................................................................Three-phase, 38-amp system
............................................... (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting..................... 1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):

Headlamp .................... Quartz Halogen, 55-watt low beam, 60-watt high beam
Tail/Stop Lights....................................................................................5W/21W
Turn Signal Lights ............................................................... 21W self-canceling
Instruments ........................Tank-mounted electronic speedometer with odometer;
.......................................................... Time-of-day clock; Dual resettable tripmeter
Indicator Lamps ......................... High beam, neutral, low oil pressure, turn signals,
......................................................................engine diagnostics, security system6,
.....................................................................................6-speed, low fuel warnings

Colour Options

Vivid Black; Dark Blue Pearl; Red Hot Sunglo; Deep Turquoise & Antique White; Flame Blue Pearl & Pewter Pearl

Model Features

Black powder-coated engine with chrome treatment covers; Chrome “horseshoe” oil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, bullet headlamp; Chrome, isolated riser; Forward-mounted rider footpegs; Standard passenger footpegs; Polished steel, “ape-hanger” handlebars;
One-piece, two-up Softail® classic seat; Passenger backrest; New low-profile front fender

Warranty

Warranty .................................................................24 months (unlimited mileage)
Service Interval .........................................................First 1,000 miles (1,600 km),
................................................................. every 5,000 miles (8,000 km) thereafter
