2009 Harley Davidson VRSCAW V-Rod

VRSCAW V-RodHarley Davidson VRSCAW V-Rod2009 Harley Davidson VRSCAW V-Rod

VRSCAW V-Rod

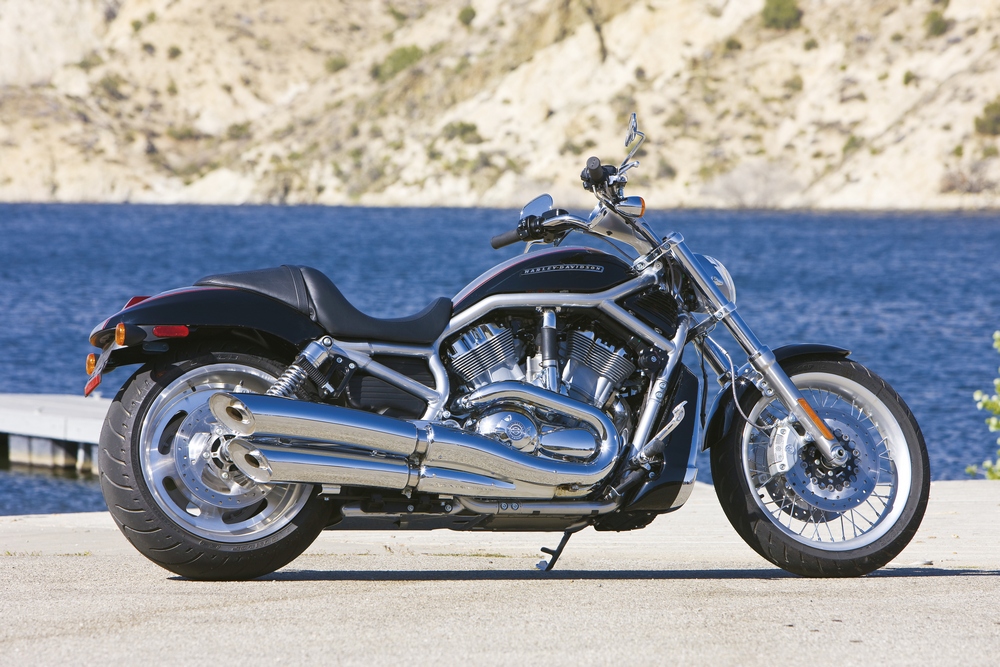

The original Harley-Davidson power cruiser continues in 2009. The V-Rod rolls on a fat 240mm rear tyre. The sweeping lastomer-formed exhaust ends in curved, bright chrome slash-cut mufflers. A scooped seat cradles the rider just 660mm off the pavement. Welded pull-back handlebars frame the clamshell instrument pod and teardrop reflector optic headlamp. Raked out to 34 degrees, 49mm forks hold an anodised aluminium profile laced front wheel. The V-Rod is available in six production colour combinations, new Vivid Black, Pewter Pearl, Flame Blue Pearl, Red Hot Sunglo, Vivid Black & Pewter Pearl, or Flame Blue Pearl & Pewter Pearl.

VRSCAW V-Rod features:

  • Liquid-cooled, 1250cc Revolution engine 123 hp at 8000 rpm horsepower 85 ft. lbs. / 115 Nm torque at 7000 rpm
  • Two-tone silver and pewter powdercoated cylinders with chrome covers
  • Slipper clutch with reduced lever effort
  • Brembo triple-disc brakes with standard ABS
  • Brushed aluminium profile laced 19-inch front wheel
  • Machined slotted disc cast aluminium 18-inch rear wheel
  • Chrome slash-cut dual exhaust pipes
  • 240mm wide rear tyre
  • Forward controls
  • Black hand controls
  • Silver-leafed frame with clear coat
  • Welded pull back handlebars
  • Teardrop reflector-optic headlight
  • 18.9 litres fuel tank
  • 660mm seat height
  • ABS as standard
  • Smart Security System

Dimensions

Length (mm) ...................................................................................................2455
Seat Height (mm)2 .............................................................................................660
Ground Clearance (mm) ....................................................................................127
Rake at steering head (°) / Trail (mm) ........................................................ 34 / 115
Fork Angle ........................................................................................................36°
Wheelbase (mm) .............................................................................................1715
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................4.3
Dry Weight (kg) .................................................................................................292

Powertrain

Engine ....................................................... Liquid-cooled, Revolution®, 60° V-Twin
Displacement (cu.cm) .....................................................................................1250
Bore x Stroke (mm) ...................................................................................105 x 72
Fuel System ...................................Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio ........................................................................................11.5:1
Exhaust System ................................Chrome, slash-cut exhaust with dual mufflers

Tyres:

Front ........................................................................ D208F 120/70ZR-19 60W
Rear .............................................................................. D419 240/40R-18 79V

Wheels:

Front .......................................................19” Brushed, profile laced aluminium
Rear ............................................... 18” Machined, slotted disc cast aluminium
Drivetrain
Primary Drive ..............................................................................Gear, 64/117 ratio
Final Drive .....................................................................................Belt, 30/72 ratio
Clutch ....................................................................9-plate, wet, A&S (Assist & Slip)
Transmission .............................................................................................5-speed

Gear Ratios:
1st .......................................................................................................... 10.97
2nd ........................................................................................................... 7.37
3rd ............................................................................................................ 5.90
4th ............................................................................................................ 5.10
5th ............................................................................................................ 4.56

Chassis

Brakes, Dia (Front/Rear, mm) ...........................................................300 dual / 300
Caliper Type .........................................................................4-piston front and rear
Front Fork ........................................................................Wide, 49mm custom fork
Rear Shocks .............................................................................. Preload adjustable

Suspension Travel:
Front (mm) .................................................................................................102
Rear (mm) ..................................................................................................102
Frame ............................Steel perimeter upper frame with hydroformed main rails;
..............................................................and bolt-on lower frame rails, MIG welded
Swingarm ........................................................Polished, one-piece cast aluminium

Performance

Engine Torque (EU Standard EC95/1)5 ....................115 Nm / 85 ft lbs @ 7000 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) .......................................... 32 / 32

Electrical

Charging ...................................................................Three-phase, 38-amp system
............................................... (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting........................ 0.8 kW electric with direct drive starter motor engagement

Lights (as per country regulation):

Headlamp .................... Quartz Halogen, 55-watt low beam, 60-watt high beam
Tail/Stop Lights............................................................5W/21W refl ector optics
Turn Signal Lights ............................................................... 21W self-canceling
Instruments ................. Electronic speedometer with odometer; Time-of-day clock;
.................................................................... Dual resettable tripmeter; Tachometer
Indicator Lamps ......................... High beam, neutral, low oil pressure, turn signals,
......................................................................engine diagnostics, security system,
.................................................................. coolant temperature, low fuel warnings

Colour Options

Vivid Black; Pewter Pearl; Flame Blue Pearl; Red Hot Sunglo; Vivid Black & Pewter Pearl; Flame Blue Pearl & Pewter Pearl

Model Features

Two-tone silver & charcoal powder-coated engine with chrome covers; Sport front fender with chrome brace supports; Low-profi le rear fender; 240 mm wide rear tyre; Chrome, headlamp visor; Slipper clutch; Lighter clutch lever operation; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebar; Two-piece, two-up textured vinyl seat; 4-piston front & rear caliper Brembo brakes with dual front rotor; Wide, 49 mm custom forks; ABS as standard.

Warranty

Warranty .................................................................24 months (unlimited mileage)
Service Interval .........................................................First 1,000 miles (1,600 km),
................................................................. every 5,000 miles (8,000 km) thereafter
