2009 Harley Davidson VRSCDX Night Rod Special

Harley Davidson VRSCDX Night Rod Special2009 Harley Davidson VRSCDX Night Rod Special

VRSCDX Night Rod Special

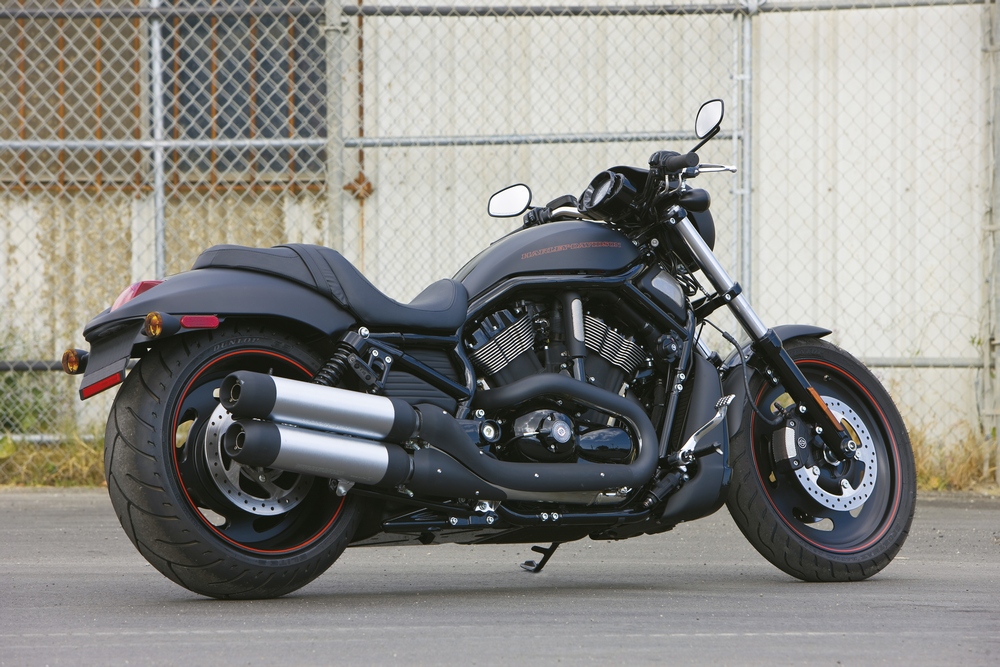

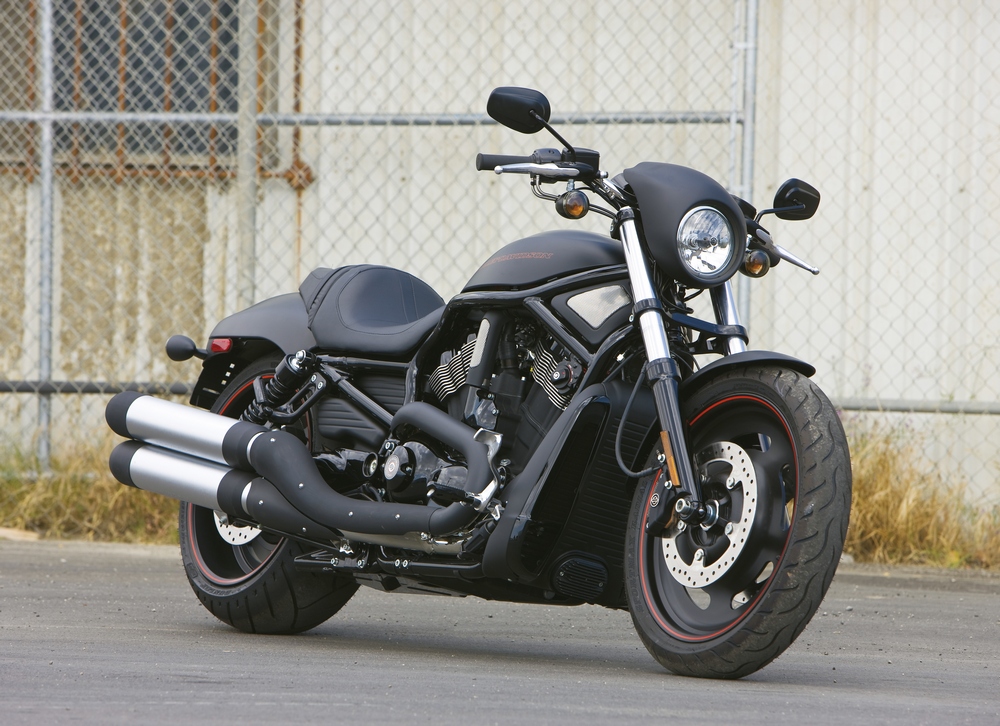

An all-black Revolution engine, fork legs, swingarm and other blacked-out components give the VRSCDX Night Rod Special a raw, street-tough attitude. A colour-matched nacelle surrounds a round reflector-optic headlight. The straight-shot dual mufflers have black end caps and heat shields. Drag handlebars and forward foot controls put the rider in an aggressive clam-shell riding posture. A contrasting racing stripe paint scheme traces the length of the bike. Black slotted cast aluminium wheels have a fine orange stripe on the rim. Available in Black Denim with Vivid Black Racing Stripe, Vivid Black with Pewter Pearl Racing Stripe, or Vivid Black with Mirage Orange Pearl Racing Stripe.

VRSCDX Night Rod Special features:

  • Liquid-cooled, 1250cc Revolution engine 123 hp at 8250 rpm horsepower 82 ft. lbs. / 111 Nm torque at 7200 rpm
  • Slipper clutch with reduced lever effort
  • Black powdercoated engine with highlighted fins and black covers
  • Brushed straight-shot dual exhaust with black end caps and covers
  • Brembo triple-disc brakes with standard ABS
  • 240mm wide rear tyre
  • Forward controls
  • Blacked-out mirrors, rear shocks and controls
  • Black steel frame
  • Drag-style handlebars
  • Round reflector-optic headlight
  • Colour-matched headlight nacelle
  • Black machined slotted disc cast aluminium 18-inch rear/19-inch front wheels with orange pin striping
  • Contrasting racing stripe paint scheme
  • 640mm seat height
  • ABS as standard
  • Smart Security System

Dimensions

Length (mm) ...................................................................................................2460
Seat Height (mm)2 .............................................................................................640
Ground Clearance (mm) ....................................................................................107
Rake at steering head (°) / Trail (mm) ........................................................ 34 / 115
Fork Angle ........................................................................................................36°
Wheelbase (mm) .............................................................................................1715
Fuel Capacity (litres) ........................................................................................18.9
Oil Capacity w/fi lter (litres) .................................................................................4.3
Dry Weight (kg) .................................................................................................292

Powertrain

Engine ....................................................... Liquid-cooled, Revolution®, 60° V-Twin
Displacement (cu.cm) .....................................................................................1250
Bore x Stroke (mm) ...................................................................................105 x 72
Fuel System ...................................Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio ........................................................................................11.5:1
Exhaust System .........................Brushed, straight-shot exhaust with dual muffl ers,
..........................................................................................black end caps & shield

Tyres:

Front ........................................................................ D208F 120/70ZR-19 60W
Rear .............................................................................. D419 240/40R-18 79V

Wheels:

Front .....................................19” Black, machined slotted disc cast aluminium
Rear ......................................18” Black, machined slotted disc cast aluminium
Drivetrain
Primary Drive ..............................................................................Gear, 64/117 ratio
Final Drive .....................................................................................Belt, 30/72 ratio
Clutch ..................................................................9-plate, wet, A & S (Assist & Slip)
Transmission .............................................................................................5-speed

Gear Ratios:
1st .......................................................................................................... 10.97
2nd ........................................................................................................... 7.37
3rd ............................................................................................................ 5.90
4th ............................................................................................................ 5.10
5th ............................................................................................................ 4.56

Chassis

Brakes, Dia (Front/Rear, mm) ...........................................................300 dual / 300
Caliper Type .........................................................................4-piston front and rear
Front Fork ........................................................................Wide, 49mm custom fork
Rear Shocks .............................................................................. Preload adjustable

Suspension Travel:
Front (mm) .................................................................................................102
Rear (mm) ....................................................................................................74
Frame .............................Steel perimeter upper frame with hydroformed main rails
..............................................................and bolt-on lower frame rails; MIG welded
Swingarm ............... Polished, one-piece cast aluminium (black powder coat fi nish)

Performance

Engine Torque (EU Standard EC95/1)5 ....................111 Nm / 82 ft lbs @ 7200 rpm
Lean Angle per SAE J1168 (Degrees Left/Right) .......................................... 32 / 32

Electrical

Charging ...................................................................Three-phase, 38-amp system
............................................... (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting........................ 0.8 kW electric with direct drive starter motor engagement

Lights (as per country regulation):

Headlamp .................... Quartz Halogen, 55-watt low beam, 60-watt high beam
Tail/Stop Lights............................................................5W/21W refl ector optics
Turn Signal Lights ............................................................... 21W self-canceling
Instruments ................. Electronic speedometer with odometer; Time-of-day clock;
.................................................................... Dual resettable tripmeter; Tachometer
Indicator Lamps ......................... High beam, neutral, low oil pressure, turn signals,
......................................................................engine diagnostics, security system6,
.................................................................. coolant temperature, low fuel warnings

Colour Options

Black Denim with Vivid Black Racing Stripe; Vivid Black with Pewter Pearl Racing Stripe; Vivid Black with Mirage Orange Pearl Racing Stripe

Model Features

Black powder-coated engine with black treatment covers; Sport front fender with painted brace supports; Low-profi le rear fender; 240 mm wide rear tyre; Colour-matched headlamp nacelle; Slipper clutch; Lighter clutch lever operation; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel,
low-rise handlebar; Two-piece, two-up textured vinyl seat; 4-piston front & rear caliper Brembo brakes with dual front rotor; Wide, 49 mm custom forks; ABS as standard.

Warranty

Warranty .................................................................24 months (unlimited mileage)
Service Interval .........................................................First 1,000 miles (1,600 km),
................................................................. every 5,000 miles (8,000 km) thereafter
