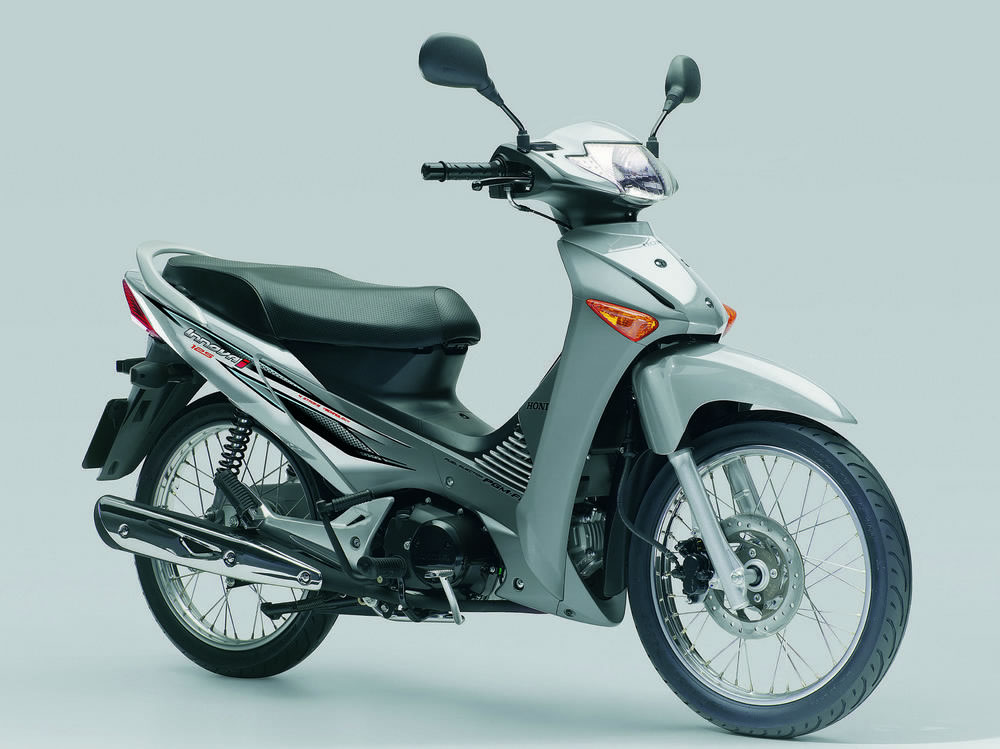

2009 Honda ANF125i INNOVA

2009 Honda ANF125i INNOVA

Introduction

A friendly and dependable little runabout, the ANF125i Innova combines simple, classic looks with subtle and carefully chosen details that underline its vibrant character. Its sporty step-through design and comfortable low seat make it a firm favourite for nipping around town, while its roomy underseat carrying space makes it an ideal companion for all the day’s activities. At its heart beats a briskly responsive fuel-injected 4-stroke engine which starts up quickly and delivers assured acceleration to get you on your way without a care in the world. The suspension is beautifully compliant, and the large, sporty wire-spoke wheels are stopped by strong, dependable brakes.

With its easy operation and range of lively colour variations, the Innova is built for fun and good times. They say you can't put a price on freedom. Here's easy, affordable evidence that you can!

Key Features

  • Strong and responsive air-cooled, fuel-injected 125cc engine delivers a swift surge of acceleration and excellent fuel economy
  • HECS3 oxygen-sensing catalytic exhaust gas converter system minimises harmful exhaust emissions, ensuring full EURO-3 compliance
  • Slim, lightweight chassis and comfortable step-through design ensure light and easy handling.
  • Easy-operation automatic clutch and four-speed rotary transmission ensure smooth power delivery
  • Instruments include LCD odometer, 5-segment LED gear indicator and handy fuel gauge
  • Large multi-reflector headlight provides excellent night visibility and striking visual impact

Additional Features

  • Underseat storage

Colours

  • Force Silver Metallic (with Terra Silver Metallic)
  • Asteroid Black Metallic (with Titanium Metallic)
  • Candy Beam Red (with Candy Foggy Orange)
  • Candy Caribbean Blue Sea (with Candy Lightning Blue)

Accessories

  • Cargo net
  • Rear carrier
  • Top box (26L;35L;35L w/ inner bag)
  • Top box carrier
  • Anti-Theft
  • U-Lock

Availability& Model Changes For 2009

  • Availability: Now
  • Changes for 2009: No changes

Technical Specification

Engine

  • Type - Air-cooled 4-stroke SOHC single
  • Displacement - 124.8cm3
  • Bore x Stroke - 52.4 x 57.9mm
  • Compression Ratio - 9.3 : 1
  • Max. Power Output - 6.84kW/7,500min-1 (95/1/EC)
  • Max. Torque - 10.1Nm/3,000min-1 (95/1/EC)
  • Idling Speed - 1,400min-1
  • Oil Capacity - 0.8 litres

Fuel System

  • Carburetion - PGM-FI electronic fuel injection
  • Throttle Bore - 22mm
  • Aircleaner - Dry, cartridge-type paper filter
  • Fuel Tank Capacity - 3.7 litres

Electrical System

  • Ignition System - Fully transistorised with electronic advance
  • Ignition Timing - 15° BTDC (idle) ~ 37° BTDC (3,000min-1)
  • Sparkplug Type - CPR6EA-9 (NGK); U20EPR9 (DENSO)
  • Starter - Electric/Neutral kick
  • Battery Capacity - 12V/5AH
  • Headlight - 12V; 35W ? 1 (low) / 35W ? 1 (high)

Drivetrain

  • Clutch Type - Centrifugal; automatic
  • Transmission - Type 4-speed; rotary
  • Primary Reduction - 3.350 (67/20)
  • Gear Ratios - 1 2.500 (35/14), 2; 1.550 (31/20), 3; 1.150 (23/20), 4; 0.923 (24/26)
  • Final Reduction - 2.500 (35/14)
  • Final Drive - Enclosed roller chain

Frame

  • Type - Low deck Mono-Backbone; rectangular-section steel tube

Chassis

  • Dimensions (LxWxH) - 1,896 x 727 x 1,079mm
  • Wheelbase - 1,240mm
  • Caster Angle - 26° 30'
  • Trail - 73.6mm
  • Turning Radius - 1.9m
  • Seat Height - 778mm
  • Ground Clearance - 139mm
  • Kerb Weight - 105.5kg (F: 43.4kg; R: 62.1kg)
  • Max. Carrying Capacity - 170kg
  • Loaded Weight - 254kg (F: 72kg; R: 182kg)

Suspension

  • Front - 26mm telescopic fork, 80.5mm axle travel
  • Rear - Dual damper unit swingarm, 81.6mm axle travel

Wheels

  • Type - Front Steel rim/wire spoke
  • Rear - Steel rim/wire spoke
  • Front - 17 x 1.40
  • Rim Size - Rear; 17 x 1.60
  • Tyre Size - Front; 70/100–17M/C 40P
  • Rear;' 80/90–17M/C 50P
  • Tyre Pressure - Front; 200kPa
  • Rear; 200kPa (with passenger: 250kPa)

Brakes

  • Front - 220mm hydraulic disc with dual-piston caliper
  • Rear - 110mm leading/trailing drum

All specifications are provisional and subject to change without notice.
