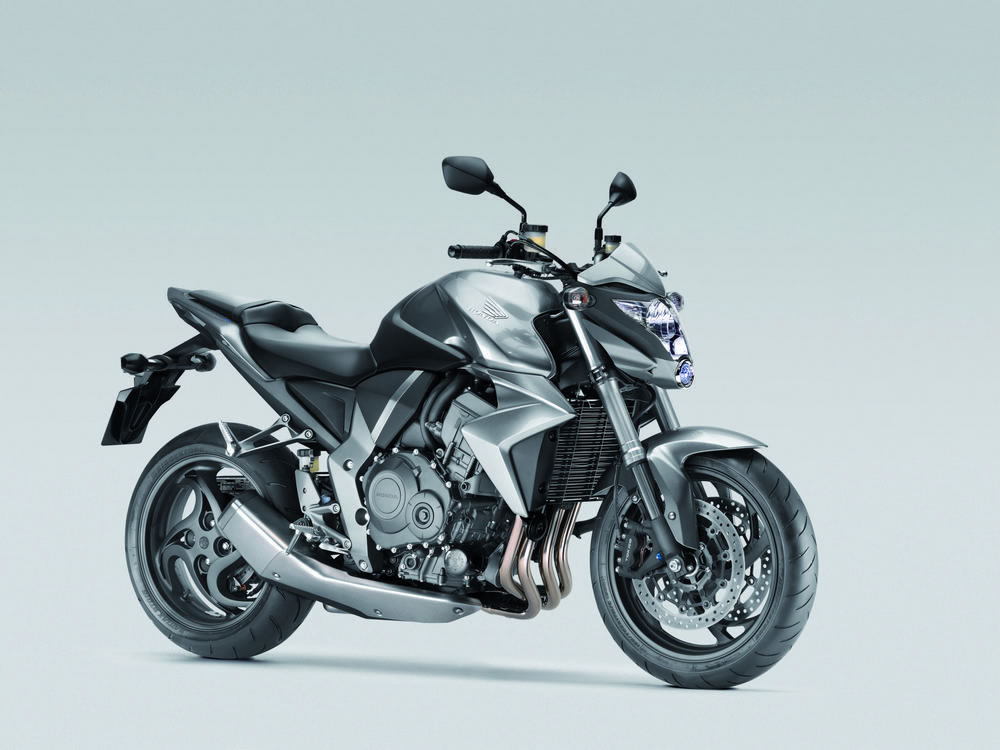

2009 Honda CB1000R

Introduction

The CB1000R charges to the head of the Performance Naked class with an unbeatable combination of sophisticated styling, eye-watering performance, agile handling and endless thrills. Its compact and muscular form carries the punch of a full-blooded litre-class Super Sportsbike. Its lightweight and compact RR-derived inline-four engine delivers electrifying jolts of power focused on exhilarating low-to-midrange torque. The suspension, wheels and lightweight disc brakes also come from the Super Sports class, giving nimble handling and quick, easy control. A Combined-ABS version is also available, for optimised braking control in all riding situations. The suspension is fully adjustable for a tailor-made ride and the seat is slim, smooth and always enticing. All this is packaged in a fearsome mass-forward, crouching feline form, adorned with futuristic-looking high-tech details and a gleaming Honda quality finish.

Whether you’re planning on prowling the streets of the asphalt jungle or tearing up the hills and corners beyond the city limits, the CB1000R dares you to explore the best Naked riding experience of your life. Climb aboard or be left behind.

Key Features

• Aggressively angular and coolly sophisticated ‘mass forward’ design positions rider forward, as emphasised by the CB1000R’s short, compact tail cowl
• Compact, lightweight 998cm3 liquid-cooled fuel-injected inline-4 engine tuned for dynamic low-to-midrange performance
• Angular-looking, semi-underslung stainless steel exhaust system lowers centre of gravity for lighter, more responsive handling and an exhilarating sound
• Attractive 17" wheels feature eye-catching swept 4-spoke design
• Advanced gravity die-cast aluminium Mono-Backbone frame
• Swift-handling, fully adjustable 43mm inverted front fork and cast aluminium Monoshock Pro-Arm swingarm assure precision riding control
• Lightweight 310mm floating front disc brakes with radial-mount 4-piston calipers. 256mm dual-piston caliper rear disc brake
• Combined-ABS version features 3-piston front brake calipers and advanced antilock brake system for confident control in all braking situations

Additional Features

• Optional ABS

Colours

• Dragon Green Metallic
• Pearl Nightstar Black
• Pearl Cool White
• Sword Silver Metallic

Various accessories including:

• Comfort
• Luggage
• Decoration
• Protection
• Anti-theft
• Maintenance

Availability & Model Changes For 2009

• Available: Now
• Changes for 2009: No changes

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
• Displacement - 998cm3
• Bore x Stroke - 75 x 56.5mm
• Compression Ratio - 11.2 : 1
• Max. Power Output - 92kW/10,000min-1 (95/1/EC)
• Max. Torque - 100Nm/8,000min-1 (95/1/EC)
• Idling Speed - 1,200min-1
• Oil Capacity - 3.6 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 36mm
• Aircleaner - Dry, cartridge-type paper filter
• Fuel Tank Capacity - 17 litres (including 4-litre LCD-indicated reserve)

Electrical System

• Ignition System - Computer-controlled digital transistorised with electronic advance
• Ignition Timing - 5° BTDC (idle) ~ 50° BTDC (10,000min-1)
• Sparkplug Type - NGK: IMR9E-9HES (NGK); VUH27ES (DENSO)
• Starter - Electric
• Battery Capacity - 12V/8.6AH
• ACG Output - 350W
• Headlights - 12V; 55W ? 1 (low) / 60W ? 1 (high)

Drivechain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Hydraulic
• Transmission Type - 6-speed
• Primary Reduction - 1.604 (77/48)
• Gear Ratios - 1; 2.538 (33/13), 2; 1.941 (33/17), 3; 1.579 (30/19), 4; 1.363 (30/22), 5; 1.217 (28/23), 6; 1.115 (29/26)
• Final Reduction - 2.750 (44/16)
• Final Drive - #530 O-ring sealed chain

Frame

• Type - Mono-backbone; cast aluminium

Chassis

• Dimensions (LxWxH) - 2,105 x 785 x 1,095mm
• Wheelbase - 1,445mm
• Caster Angle - 25°
• Trail - 99mm
• Turning Radius - 2.8m
• Seat Height - 825mm
• Ground Clearance - 130mm
• Kerb Weight - 217kg (F: 106kg; R: 111kg) *222kg (F: 108kg; R: 114kg)
• Max. Carrying Capacity - 193kg
• Loaded Weight - 410kg

Suspension

• Type - Front; 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm cushion stroke
• Rear; Monoshock with gas-charged HMAS damper featuring 10-step preload and stepless rebound damping adjustment, 128mm axle travel

Wheels

• Type - Front; Closed-section 4-spoke cast aluminium
• Rear; Closed-section 4-spoke cast aluminium
• Rim Size - Front; 17M/C x MT3.50
• Rear; 17M/C x MT5.50
• Tyre Size - Front; 120/70 ZR17M/C (58W)
• Rear; 180/55 ZR17M/C (73W)
• Tyre Pressure - Front; 250kPa
• Rear; 290kPa

Brakes

• Type - Front; 310 x 4.5mm dual hydraulic disc with 4-piston (*Combined 3-piston) calipers, floating rotors (*ABS) and sintered metal pads
• Rear; 256 x 5mm hydraulic disc with dual-piston caliper (*ABS) and sintered metal pads

*Combined-ABS version

All specifications are provisional and subject to change without notice
