2009 Honda CB1300

Introduction

Honda’s flagship Naked, the CB1300 is a refreshing combination of enormous fun and brawny good looks. At its centre looms a monstrous fuel-injected 1,284cm³ engine which delivers a smooth, effortless build of power and is tuned to deliver its best thrills in a torquey, full-bodied midrange. This beast is capably harnessed in a double-cradle steel tube frame and enhanced by gleaming bare aluminium and chrome surroundings. In spite of the CB’s big, bold size, the accommodating seat height and slim-design side covers offer an amazingly comfortable riding position. The seat conceals a spacious underseat utility space, and with a generous 21-litre fuel tank, nothing will come between you and the genuine, all-day riding pleasure that this machine offers.

The Honda high-quality finish is underlined by thoughtful details such as its fully electronic, amber backlit instrument panel and its brilliant multi-segment LED taillight. Braking performance is impeccable courtesy of ABS and, with full EURO-3 compliance the CB1300’s pleasures are more than accessible for everyday riding. If you want stunning visual impact, street-stomping performance and, most importantly, the honest joy of plain, unadorned motorcycling, this is the one for you.

Key Features

• Fuel-injected, liquid-cooled DOHC inline-4 powerplant tuned for strong midrange performance and breathtaking blasts of acceleration
• HECS3 oxygen-sensing catalytic converter system minimises harmful exhaust gas emissions to ensure strict compliance with EURO-3 emissions regulations
• Compliant 43mm cartridge-type front fork and dual remote reservoir rear dampers supporting a large box-section aluminium swingarm ensure swift handling and a comfortable ride
• High-performance four-piston front disc brakes caliper grip large-diameter floating rotors for responsive braking control
• Features Honda’s advanced Antilock Brake System for supremely smooth and sure braking control

Colours

• Darkness Black Metallic

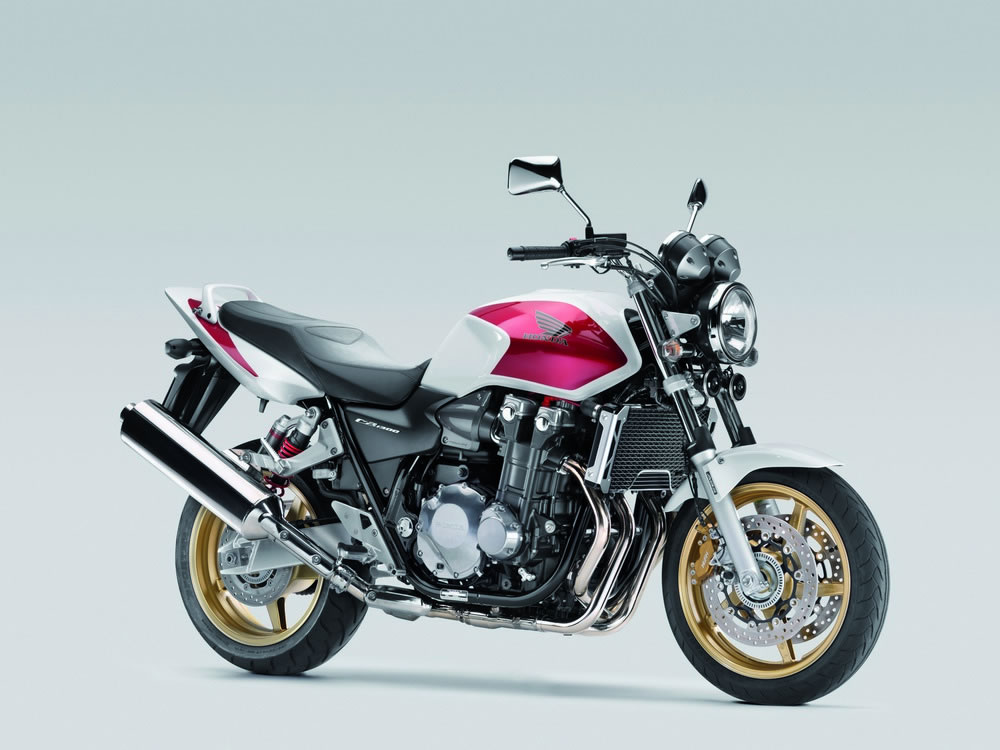

• Pearl Sunbeam White (with Candy Aradian Red)

Accessories

• Fly screen
• Cargo net
• Magnetic tankbag (13L)
• Rear carrier
• Engine guard (mushroom type)
• Outdoor cycle cover
• Protective film
• Tank pad and fuel lid cover set
• Tank pad carbon-fibre (Honda Wing logo)
• AVERTO security kit
• U-lock

Availability & Model Changes For 2009

• Available: March 2009
• Changes for 2009: New colour

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
• Displacement - 1,284cm3
• Bore x Stroke - 78 x 67.2mm
• Compression Ratio - 9.6 : 1
• Max. Power Output - 84kW/7,750min-1 (95/1/EC)
• Max. Torque - 116Nm/6,000min-1 (95/1/EC)
• Idling Speed - 1,000min-1
• Oil Capacity - 4 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 36mm
• Aircleaner - Dry, cartridge-type paper filter
• Fuel Tank Capacity - 21 litres (including 4.5-litre warning light reserve)

Electrical System

• Ignition System - Computer-controlled digital transistorised with electronic advance
• Ignition Timing - 5° BTDC (idle) ~ 46° BTDC (3,500min-1)
• Sparkplug Type - DPR8EA9 (NGK); X24EPR-U9 (DENSO)
• Starter - Electric
• Battery Capacity - 12V/14AH
• ACG Output - 420W/5,000min-1
• Headlight - 12V; 55W ? 1 (low) / 60W ? 1 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Hydraulic
• Transmission Type - 5-speed
• Primary Reduction - 1.652 (76/46)
• Gear Ratios - 1; 3.083 (37/12), 2; 2.062 (33/16), 3; 1.545 (34/22), 4; 1.272 (28/22), 5; 1.130 (26/23)
• Final Reduction - 2.167 (39/18)
• Final Drive - #530 sintered link chain

Frame

• Type - Double-cradle; steel tube

Chassis

• Dimensions (LxWxH) - 2,220 x 790 x 1,120mm
• Wheelbase - 1,510mm
• Caster Angle - 25°
• Trail - 99mm
• Turning Radius - 2.7m
• Seat Height - 790mm
• Ground Clearance - 135mm
• Kerb Weight - 258kg (F: 127kg; R: 131kg) *263kg (F: 129kg; R: 134kg)
• Maximum Carrying Capacity - 196kg
• Loaded Weight - 459kg (F: 174kg; R: 285kg)

Suspension

• Type - Front; 43mm cartridge-type telescopic fork with adjustable compression and rebound damping, 120mm axle travel
• Rear - Dual conventional dampers with 5-step adjustable spring preload, 116mm axle travel

Wheels

• Type - Front; U-section 5-spoke cast aluminium
• Rear; U-section 5-spoke cast aluminium
• Rim Size - Front; 17M/C ? MT3.50
• Rear; 17M/C x MT5.50
• Tyre Size - Front; 120/70 ZR17M/C (58W)
• Rear; 180/55 ZR17M/C (73W)
• Tyre Pressure - Front; 250kPa
• Rear; 290kPa

Brakes

• Type - Front; 310 x 4.5mm dual disc with 4-piston calipers (*ABS) and sintered metal pads
• Rear; 256 x 6mm single-piston caliper disc with (*ABS and) sintered metal pads

*ABS version

All specifications are provisional and subject to change without notice
