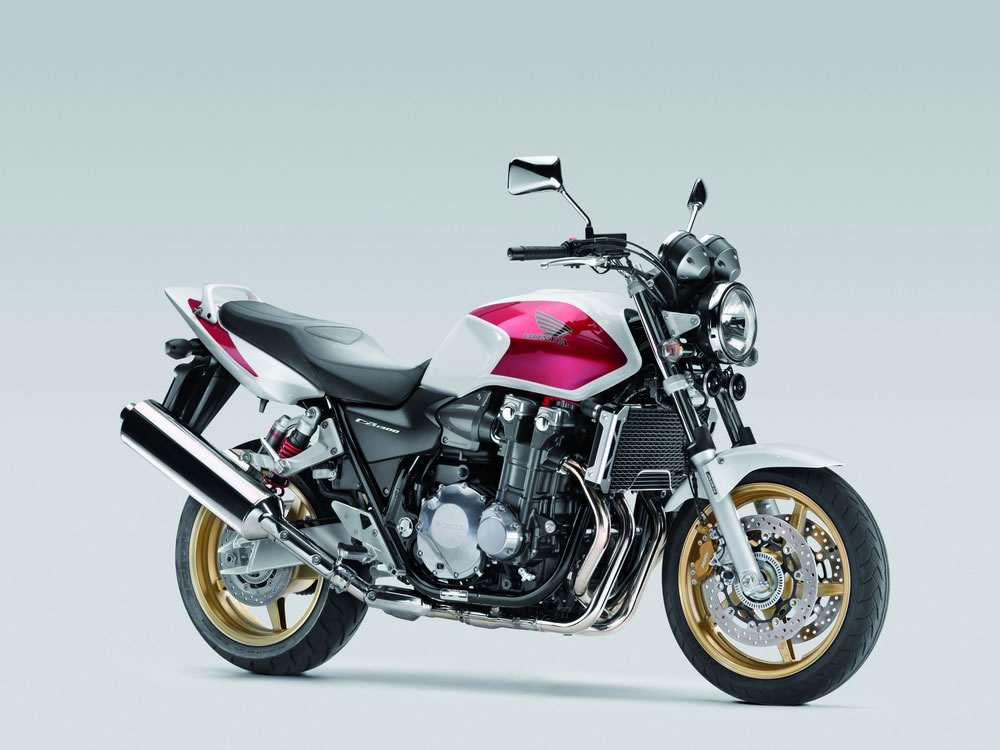

2009 Honda CB1300S

Introduction

Pulse-racing performance. Immediate involvement. Sheer sensation. Projecting bold attitude and delivering an awe-inspiring rush of raw excitement, the CB1300S ABS responds to throttle input with a blast of performance, followed up by rip-roaring acceleration and smooth, addictive power delivery. The aerodynamic fairing screams of speed and comfortably slices through the wind, leaving no doubt as to the bike’s intentions (and concealing some handy storage space). The combination of big-bike performance and style, with light, effortless handling and comfortable seating is brilliantly executed. The accommodating seat height and slimline sidecovers combine to offer a straight and easy reach to the ground. Solid stopping power comes from high-performing four-piston front disc brakes; ABS is standard, ensuring supreme braking confidence and control. The CB1300S’ ABS superb styling alone is enough to set your heart racing, with flawless bodywork, an imposingly stark, black engine, bare aluminium, shining chrome details and high-tech, blue backlit instrument panel. But the real thrills come when you climb aboard and get back to the basics of pure naked motorcycling fun. Refreshingly simple and disturbingly addictive, the CB1300S ABS is a breathtaking embodiment of naked Honda attitude.

Key Features

• Elegant, compact and highly aerodynamic half fairing leaves no doubt as to the CB1300S’ ABS high-speed and high-performance capabilities
• Fuel-injected, liquid-cooled DOHC inline-4 powerplant tuned for strong midrange performance and breathtaking thrusts of acceleration
• HECS3 oxygen-sensing catalytic converter system minimises harmful exhaust gas emissions to ensure full EURO-3 compliance
• Compliant 43mm cartridge-type front fork and dual remote reservoir rear dampers supporting large box-section aluminium swingarm ensure swift handling and a comfortable ride
• High-performance four-piston caliper front disc brakes equipped with Honda’s most advanced Antilock Brake System for supremely smooth and sure braking control

Colours

• Pearl Sunbeam White (with Candy Aradian Red)
• Darkness Black Metallic (with Pearl Cosmic Black)

Accessories

• Cargo net
• Magnetic tankbag (13L)
• Rear carrier
• Engine guard (mushroom type)
• Outdoor cycle cover
• Protective film
• Tank pad and fuel lid cover set
• Tank pad carbon-fibre (Honda Wing logo)
• AVERTO security kit
• U-lock

Availability& Model Changes For 2009

• Available: March 2009
• Changes for 2009: No changes

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
• Displacement - 1,284cm3
• Bore x Stroke - 78 x 67.2mm
• Compression Ratio - 9.6 : 1
• Max. Power Output - 84kW/7,750min-1 (95/1/EC)
• Max. Torque - 116Nm/6,000min-1 (95/1/EC)
• Idling Speed - 1,000min-1
• Oil Capacity - 4 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 36mm
• Aircleaner - Dry, cartridge-type paper filter
• Fuel Tank Capacity - 21 litres (including 4.5-litre warning light reserve)

Electrical System

• Ignition System - Computer-controlled digital transistorised with electronic advance
• Ignition Timing - 1° BTDC (idle) ~ 46° BTDC (3,500min-1)
• Sparkplug Type - DPR8EA9 (NGK); X24EPR-U9 (DENSO)
• Starter - Electric
• Battery Capacity - 12V/12AH
• ACG Output - 420W/5,000min-1
• Headlight - 12V; 55W ? 1 (low) / 60W ? 1 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Hydraulic
• Transmission Type - 5-speed
• Primary Reduction - 1.652 (76/46)
• Gear Ratios - 1; 3.083 (37/12), 2; 2.062 (33/16), 3; 1.545 (34/22), 4; 1.272 (28/22), 5; 1.130 (26/23)
• Final Reduction - 2.167 (39/18)
• Final Drive - #530 sintered link chain

Frame

• Type - Double-cradle; steel tube

Chassis

• Dimensions (LxWxH) - 2,220 x 790 x 1,215mm
• Wheelbase - 1,515mm
• Caster Angle - 25°
• Trail - 99mm
• Turning Radius - 2.7m
• Seat Height - 790mm
• Ground Clearance - 135mm
• Kerb Weight - 269kg (F: 133kg; R: 136kg)
• Maximum Carrying Capacity - 190kg
• Loaded Weight - 459kg (F: 174kg; R: 285kg)

Suspension

• Type - Front; 43mm cartridge-type telescopic fork with adjustable compression and rebound
  damping, 120mm axle travel
• Rear; Dual conventional dampers with 5-step adjustable spring preload, 116mm axle travel

Wheels

• Type - Front; U-section 5-spoke cast aluminium
• Rear; U-section 5-spoke cast aluminium
• Rim Size - Front; 17M/C ? MT3.50
• Rear; 17M/C x MT5.50
• Tyre Size - Front; 120/70 ZR17M/C (58W)
• Rear; 180/55 ZR17M/C (73W)
• Tyre Pressure - Front; 250kPa
• Rear; 290kPa

Brakes

• Type - Front; 310 x 4.5mm dual disc with 4-piston calipers, ABS and sintered metal pads
  Rear; 256 x 6mm single-piston caliper disc with ABS and sintered metal pads

All specifications are provisional and subject to change without notice.
