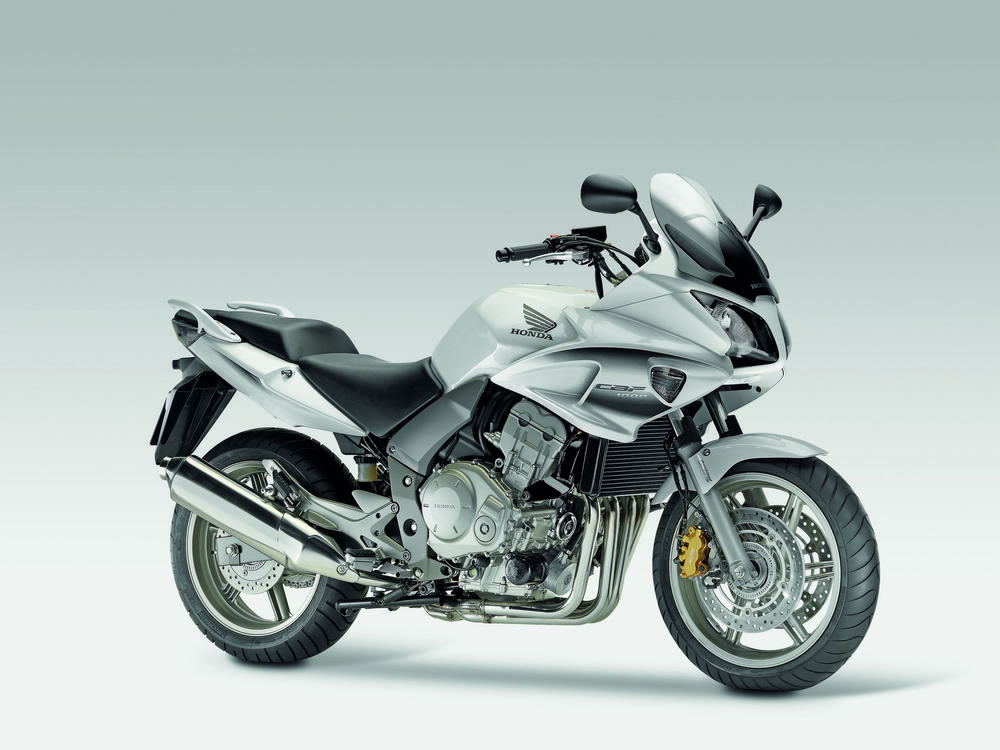

2009 Honda CBF1000

Introduction

Full-sized litre-bike power and performance in a sleek and versatile form that has something for everyone. Powered by a Fireblade-based engine with a legacy of dramatic victories under its belt, the elegantly styled CBF1000 packs powerful performance into an elegantly styled midsized configuration that offers both big-bike enjoyment and easy-riding confidence. Generous thrusts of acceleration from its race-proven inline-4 powerplant are accompanied by silky-smooth suspension and a seeming genius for delivering the power just where most riders need it - in the low-to-mid rev range. Featuring a 3-step adjustable seat and a frame-mounted half fairing for ‘just fit’ riding comfort, the CBF’s first-rate chassis, suspension and brakes also contribute to its sporty feel and swiftly responsive handling capabilities. A generous 19-litre tank capacity and impressive fuel economy are sure to tempt you out on longer rides. Specialising in usable power and maximum fun, the CBF1000’s seemingly endless versatility has already made it a firm favourite among sports riders and daily bikers alike. Now it’s your turn!

Key Features

• Wide-coverage frame-mounted half-fairing with adjustable windscreen provides ample protection against the elements
• Race-proven fuel-injected 998cm3 DOHC inline-four engine tuned for stronger thrusts of midrange acceleration
• HECS3 oxygen-sensing catalytic converter system minimises harmful exhaust gas emissions to ensure full compliance with strict EURO-3 emissions regulations
• Three-position height-adjustable seat offers custom-fit comfort and long hours of riding enjoyment, whatever your size
• Responsive stopping power provided by four-piston caliper dual front disc brakes with 296mm floating rotors and a single-piston caliper rear disc brake
• Combined-ABS version features triple-piston front brake calipers, Combined Brake operating ease and the confident control of Honda’s most advanced Antilock Brake System
• Deluxe touring version features standard-equipped ABS and detachable panniers*
• Wide assortment of optional accessories turns the CBF1000 into a highly satisfying sports touring machine for longer days in the saddle
• New Pearl Cool White (with stripes) colour variation

Colours

• Pearl Cool White (with stripe) 09YM
• Pearl Siena Red (with stripe) 09YM
• Pearl Nightstar Black 08YM
• Quasar Silver Metallic 08YM

Various accessories including:

• Comfort
• Protection
• Luggage
• Decoration
• Anti-theft

Availability & Model Changes For 2009

• Available: Now
• Changes for 2009: New colour

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
• Displacement - 998cm3
• Bore x Stroke - 75 x 56.5mm
• Compression Ratio - 11 : 1
• Max. Power Output - 72kW/8,000min-1 (95/1/EC)
• Max. Torque - 93Nm/6,500min-1 (95/1/EC)
• Idling Speed - 1,200min-1
• Oil Capacity - 3.6 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 36mm
• Aircleaner - Dry, cartridge-type paper filter
• Fuel Tank Capacity - 19 litres (including 4-litre reserve)

Electrical System

• Ignition System - Computer-controlled digital transistorised with electronic advance
• Ignition Timing - 5° BTDC (idle) ~ 45° BTDC (7,500min-1)
• Sparkplug Type - NGK: CR8EH-9 ND: U24FER9
• Starter - Electric
• Battery Capacity - 12V/8.6AH
• ACG Output - 330W
• Headlights - 12V; 55W ? 1 (low) / 55W ? 2 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Hydraulic
• Transmission Type - 6-speed
• Primary Reduction - 1.604 (77/48)
• Gear Ratios - 1; 2.714 (38/14), 2; 1.941 (33/17), 3; 1.579 (30/19), 4; 1.363 (30/22), 5; 1.217 (28/23), 6; 1.115 (29/26)
• Final Reduction - 2.687 (43/16)
• Final Drive -#530 O-ring sealed chain

Frame

• Type - Mono-backbone; rectangular-section steel tube

Chassis

• Dimensions (LxWxH) - 2,156 x 781 x 1,138mm
• Wheelbase - 1,480mm
• Caster Angle - 26°
• Trail - 110mm
• Turning Radius - 2.8m
• Seat Height - 795mm ±15mm
• Ground Clearance - 130mm
• Kerb Weight - 242kg (F: 118kg; R: 124kg) *250kg (F: 120kg; R: 130kg)
• Max. Carrying Capacity - 195kg
• Loaded Weight - 437kg *445kg

Suspension

• Type - Front; 41mm cartridge-type telescopic fork, 120mm axle travel
• Rear; Pro-Link with gas-charged HMAS damper, 120mm axle travel

Wheels

• Type - Front; Hollow-section 6-spoke cast aluminium
• Rear; Hollow-section 6-spoke cast aluminium
• Rim Size - Front; 17M/C ? MT3.50
• Rear; 17M/C x MT5.00
• Tyre Size - Front; 120/70 ZR17M/C (58W)
• Rear; 160/60 ZR17M/C (69W)
• Tyre Pressure - Front; 250kPa
• Rear; 290kPa

Brakes

• Type - Front; 296 x 4.5mm dual hydraulic disc with 4-piston (*Combined 3-piston) calipers, floating rotors (*ABS) and sintered metal pads
• Rear; 240 x 6mm hydraulic disc with single-piston (*3-piston) caliper (*ABS) and sintered metal pads

*Combined ABS version

All specifications are provisional and subject to change without notice
