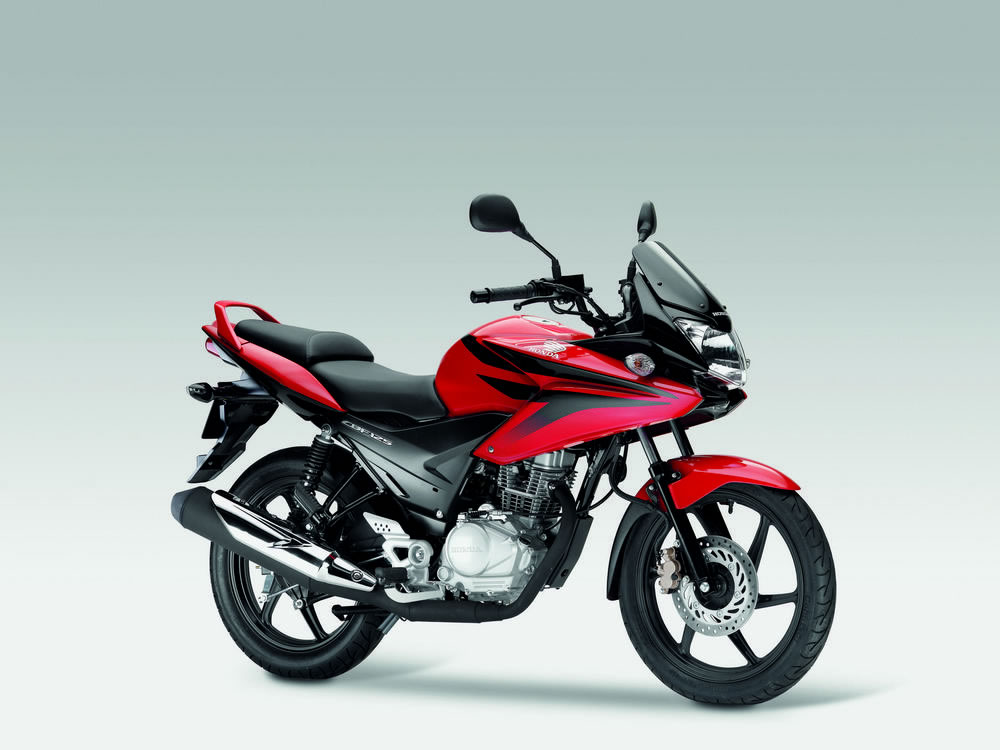

2009 Honda CBF125

Introduction

The CBF125 combines the best features of Honda’s Naked and 125cc motorcycles from the past 60 years to provide the ultimate in small motorcycle style and performance. At its heart is an air-cooled, fuel-injected, five-speed engine that delivers strong power and torque despite its small capacity. Meanwhile the chassis is capable of easy manoeuvring courtesy of its light and responsive handling allied to a powerful single disc brake at the front. Comfortable and practical, the CBF125 is at ease with solo or two-up riding due to its compliant suspension front and rear.

The bodywork design continues the theme of the small bike with a big personality, with attractive half-faired styling, complete with an effective tinted screen. Two-up the CBF125 is as accomplished as larger machines courtesy of its generous rear seat, comfortable pillion peg arrangement and grab-rail. Meanwhile for the rider, there’s a convenient electric starter, while the control panel is simple and easy to read and features a large speedometer, indicator lights and a fuel gauge.

From first-timer to old-timer on two-wheels, the all-new CBF125 provides convenience and freedom for urban travel and is a fitting replacement for the much-loved CG125, which debuted over 30 years ago in 1976.

The CBF125’s DNA combines everything that Honda’s founder, Soichiro Honda, instilled into his first motorcycles – affordable, reliable, safe, good quality and a joy to own and use. The CBF125 - Cheap to keep. Built to last. Fun to run!

Key Features

Performance

• High-performing fuel-injected, single-cylinder air-cooled engine with a high lift cam and 5-speed transmission

Easy Operation

• Push-button electric starter
• An easy-operation 5-gear shift lever

High Fuel Efficiency

• Over 370 miles (over 600km) from one 13-litre tank. With fuel consumption of 134mpg (or 29.6miles / 47.4km per litre*) and with a 13 litre fuel tank, that equates to approximately 300 miles of motoring for less than £10 at today’s prices (based on 99 pence per litre). *These figures were obtained during test conditions and may not be reciprocated in everyday use by every rider and riding situation

Low Emissions

• Honda’s oxygen-sensing catalytic converter system
• Exhaust and muffler conceal a catalyser element that works in combination with the converter to reduce exhaust emissions to well exceed the standards set by EURO-3 regulations

Additional Features

• Under seat space
• Toolkit
• Helmet holder

Colours

• Sports Red
• Black
• Space Silver Metallic (with White)

Accessories

• TBC in 2009

Technical Specification

Engine

• Type - Air-cooled 4-stroke 2-valve OHC single
• Displacement - 124.7cm3
• Bore x Stroke - 52.4 ? 57.8mm
• Compression Ratio - 9.2: 1
• Max. Power Output - 8.3kw/8,000min-1
• Max. Torque - 11.2Nm/6,250min-1
• Idling Speed - 1500rpm
• Oil Capacity - 1.1 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 26mm
• Aircleaner - Non-woven sheet-type
• Fuel Tank Capacity - 13 litres

Electrical System

• Ignition System - Computer controlled fully transistorised with
  electronic advance
• Ignition Timing - 10° BTDC (idle) ~ 49° BTDC (5,000min-1)
• Sparkplug Type - UR6DC(MICO) CPR7EA-9(NGK)
• Starter - Electric
• Battery Capacity - 12V/6AH
• ACG Output - 170W
• Headlights - 12V 35W ? 1 (low) / 35W ? 1 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Mechanical; cable-actuated
• Transmission Type - 5-speed
• Primary Reduction - 3.350
• Gear Ratios - 1 3.076, 2 1.944, 3 1.473, 4 1.190, 5 1.038
• Final Reduction - 2.625
• Final Drive - O-ring sealed chain

Frame

• Type - Diamond; steel

Chassis

• Dimensions (LxWxH) - 1,955 x 760 x 1,110mm
• Wheelbase - 1,270mm
• Caster Angle - 25° 55’
• Trail - 89mm
• Turning Radius - 2.10mm
• Seat Height - 792mm
• Ground Clearance - 173mm
• Kerb Weight - 128kg
• Max. Carrying Capacity - 180kg
• Loaded Weight - 308kg

Suspension

• Front - 30mm telescopic fork, 115mm axle travel
• Rear - Conventional twin shock, double tube damper with 3-step adjustable spring preload, 87mm axle travel

Wheels

• Type - Front U-cross-section 6-spoke cast aluminium
• Rear - U-cross-section 6-spoke cast aluminium
• Rim Size - Front 17M/C ? MT1.85
• Rear - 17M/C x MT2.15
• Tyre Size - Front 80/100–17M/C 46P, Rear 100/90–17M/C 55P
• Tyre Pressure - Front 175kPa, Rear 200kPa

Brakes

• Front - 240mm hydraulic disc with 2-pod calliper and resin mould pads
• Rear - 130mm leading/trailing drum

All specifications are provisional and subject to change without notice
