2009 Honda CBR1000RR Fireblade

2009 Honda CBR1000RR Fireblade Honda CBR1000RR Fireblade

Introduction

The world of motorcycling is already well aware of the CBR1000RR Fireblade’s standing in the elite realms of the ultimate sportsbike. Incredibly light, fast and controllable, the iconic Fireblade has built a well-deserved reputation for delivering the full-blooded joy of extreme performance.

2008 marked the iconic CBR1000RR Fireblade’s 16th birthday, and what a celebratory year it has been. With the 9th generation ‘Blade launched in early 2008 as an all-new machine with super-light engine brought immense levels of power accompanied by increased smoothness and refinement of delivery. The result was a machine that would drive with sublime smoothness in every situation, crisp throttle response giving the rider precisely the level of acceleration they require at any moment - whether easing gently out of a slow, slippery mountain hairpin or powering-on hard in a fast race track curve. The result was true to the all-important concept of ‘Total Control’ - giving the rider exactly what they want, and thus building confidence.

Praise has been lavished upon the legendary bike and coveted accolades such as Fast Bikes “Sports Bike of the Year” and “Bike of the Year”, Motor Cycle News “Litre Class Sportsbike of the Year” and RiDE Magazine’s RiDER Power Survey “Britain’s Favourite Motorcycle 2008” have been won in 2008.

For 2009, the Fireblade sees the addition of high performance electronically-controlled “Combined ABS” as an option. Continuing Honda’s commitment to enhancing motorcycle safety at every opportunity, the highly-advanced “Combined ABS” is a remarkable and ground-breaking first for a bike in its class.
For many years Combined ABS has offered a dramatic confidence benefit to emergency braking situations where the machine’s wheels can lock, resulting in a loss of control. But never before has a system been developed that has the necessary refinement, low weight and performance to suit a Super Sports bike like the Fireblade. Until now.

Honda has developed an all-new, lightweight system that befits the Total Control concept of the entire bike. For a minimal weight increase, the confidence of electronically controlled C-ABS can now be enjoyed by the Super Sports rider who demands the highest performance in every facet of a motorcycle.

Key Features

  • Short, compact, mass centralised form
  • Sleek, aerodynamic bodywork ensures minimal wind resistance at high speeds
  • Sharp, rear styling includes new rear indicator design
  • New HRC tricolour version celebrates 50 years of Honda Racing victories
  • Compact, powerful engine with sleeveless cylinders and pared down components for minimum weight
  • Honda’s Assist Slipper Clutch for smooth power delivery and light, comfortable clutch actuation
  • Low-slung exhaust system contributes to mass centralisation
  • HECS3 oxygen-sensing catalyser system ensures EURO-3 compliance
  • Strong, rigid, lightweight four-piece aluminium frame
  • High-spec, fully adjustable 43mm inverted HMAS cartridge-type front fork
  • Second-generation Steering Damper (HESD)
  • Radially-mounted four-piston callipers and six-point floating rotors for superb braking power and minimal unsprung weight
  • Compact, modern and highly practical instrument panel

Additional Features

  • Optional ABS

Colours

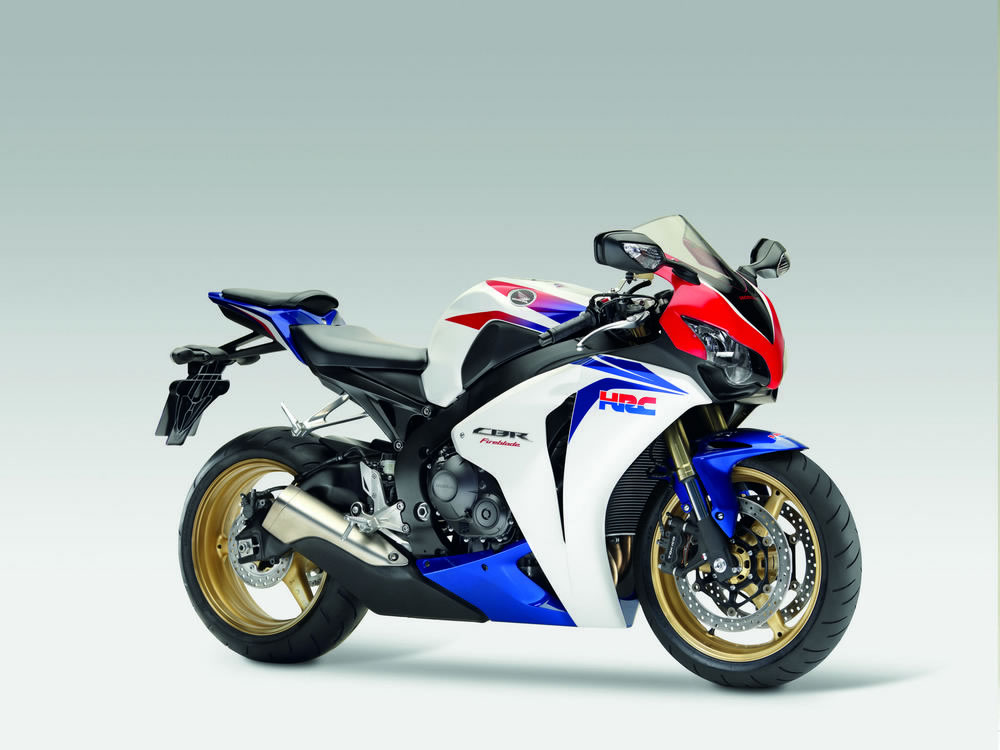

  • Pearl Sunbeam White, HRC (Standard)

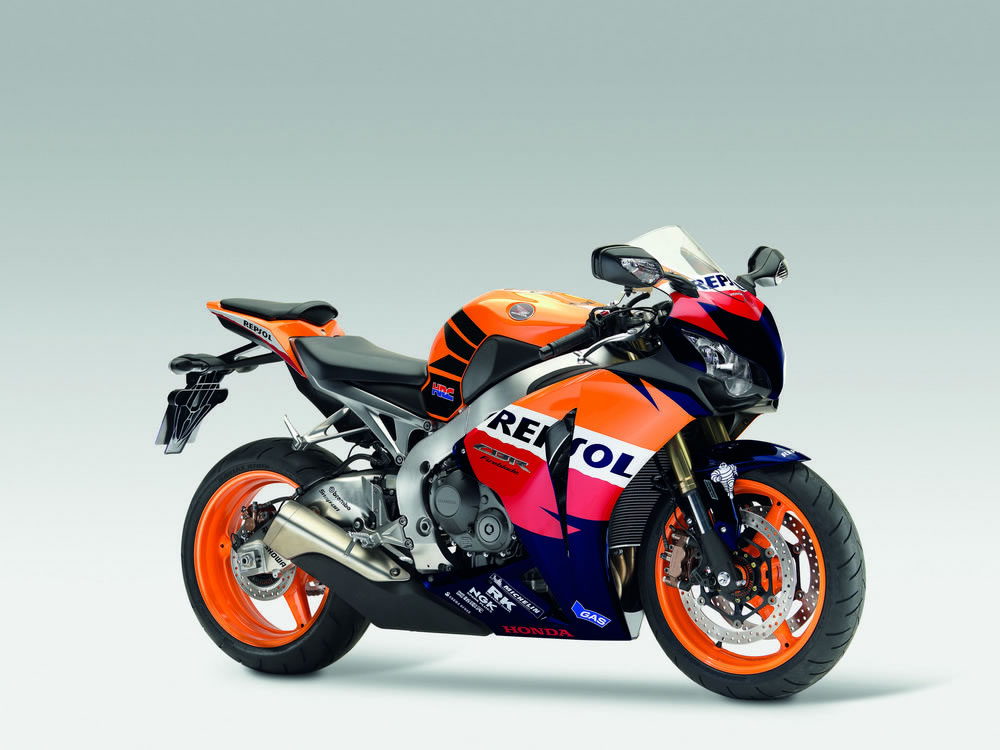

  • Repsol (Standard)
  • Achilles Black Metallic (Standard)
  • Pearl Siren Blue (Standard & ABS)

Accessories

  • Lightweight and stylish carbon fibre parts
  • Rear wheel hugger (non-ABS version only)
  • Front mudguard for lower front fork tubes protection
  • Decorative crankcase
  • Colour-matched rear wheel hugger (non-ABS version only)
  • Carbon-fibre-look protective tank pad and fuel lid cover set bearing the HRC logo
  • Colour-matched rear seat cowl
  • Racing sticker set
  • 27.4mm taller, WVTA approved windscreen (available in black-tinted or clear version with HRC logo)
  • Set of black nylon fairing protectors
  • Patented, Honda-unique replacement rider’s seat based on elastomere mesh technology for unrivalled comfort. Features CBR logo, e-cushion tag and different skin pattern
  • Fireblade designed luggage including tank bag
  • AVERTO alarm kit with motion detector, siren and back-up battery
  • U-lock
  • Rear maintenance stand

Availability & Model Changes For 2009

  • Available: February 2009
  • Changes for 2009: Minor changes

Technical Specifications CBR1000RR Fireblade Standard Version (ED-type)

Engine

  • Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
  • Displacement - 999cm3
  • Bore x Stroke - 76 x 55.1mm
  • Compression Ratio - 12.3 : 1
  • Max. Power Output - 131.0kW/12,000min-1 (95/1/EC)
  • Max. Torque - 112.0Nm /8,500min-1 (95/1/EC)
  • Idling Speed - 1,200min-1
  • Oil Capacity - 3.7 litres

Fuel System

  • Carburetion - PGM-DSFI electronic fuel injection
  • Throttle Bore - 46mm
  • Aircleaner - Dry, Panel-type paper filter
  • Fuel Tank Capacity - 17.7 litres (including 4-litre LCD-indicated reserve)

Electrical System

  • Ignition System - Computer-controlled digital transistorised with electronic advance
  • Ignition Timing - 3.2° BTDC (idle) ~ 45° BTDC (7,500min-1)
  • Sparkplug Type - IMR9E-9HES (NGK); VUH27EC (DENSO)
  • Starter - Electric
  • Battery Capacity - 12V/6AH
  • ACG Output - 350W
  • Headlights - 12V; 55W ? 1 (low) / 55W ? 2 (high)

Drivetrain

  • Clutch - Wet, multiplate with diaphragm spring
  • Clutch Operation - Mechanical; cable-actuated
  • Transmission Type - 6-speed
  • Primary Reduction - 1.717 (79/46)
  • Gear Ratios - 1; 2.286 (32/14), 2; 1.778 (32/18), 3; 1.500 (33/22), 4; 1.333 (32/24), 5; 1.214 (34/28), 6; 1.138 (33/29)
  • Final Reduction - 2.625 (42/16)
  • Final Drive - #530 O-ring sealed chain

Frame

  • Type - Diamond; aluminium composite twin-spar

Chassis

  • Dimensions (LxWxH) - 2,080 x 685 x 1,130mm
  • Wheelbase - 1,410mm
  • Caster Angle - 23° 18'
  • Trail - 96.3mm
  • Turning Radius - 3.2m
  • Seat Height - 820mm
  • Ground Clearance - 130mm
  • Kerb Weight - 199kg (F: 105kg; R: 94kg)
  • Max. Carrying Capacity - 180kg
  • Loaded Weight - 379kg

Suspension

  • Type - Front; 43mm inverted HMAS cartridge-type telescopic fork with stepless preload,
    compression and rebound adjustment, 120mm axle travel
  • Rear; Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 135mm axle travel

Wheels

  • Type - Front; Hollow-section triple-spoke cast aluminium
  • Rear; Hollow-section triple-spoke cast aluminium
  • Rim Size - Front; 17M/C x MT3.50
  • Rear; 17M/C x MT6.00
  • Tyre Size - Front; 120/70 ZR17M/C (58W)
  • Rear; 190/50 ZR17M/C (73W)
  • Tyre Pressure - Front; 250kPa
  • Rear; 290kPa

Brakes

  • Type - Front; 320 x 4.5mm dual hydraulic disc with 4-piston callipers and sintered metal pads
    Rear; 220 x 5mm hydraulic disc with single-piston calliper and sintered metal pads

All specifications are provisional and subject to change without notice

Technical Specifications CBR1000RR Fireblade Combined ABS Version (ED-type)

Engine

  • Type - Liquid-cooled 4-stroke 16-valve DOHC inline-4
  • Displacement - 999cm3
  • Bore x Stroke - 76 x? 55.1mm
  • Compression Ratio - 12.3 : 1
  • Max. Power Output - 131.0kW/12,000min-1 (95/1/EC)
  • Max. Torque - 112.0Nm /8,500min-1 (95/1/EC)
  • Idling Speed - 1,200min-1
  • Oil Capacity - 3.7 litres

Fuel System

  • Carburetion - PGM-DSFI electronic fuel injection
  • Throttle Bore - 46mm
  • Aircleaner - Dry, Panel-type paper filter
  • Fuel Tank Capacity - 17.7 litres (including 4-litre LCD-indicated reserve)

Electrical System

  • Ignition System - Computer-controlled digital transistorised with electronic advance
  • Ignition Timing - 3.2° BTDC (idle) ~ 45° BTDC (7,500min-1)
  • Sparkplug Type - IMR9E-9HES (NGK); VUH27EC (DENSO)
  • Starter - Electric
  • Battery Capacity - 12V/8.6AH
  • ACG Output - 350W
  • Headlights - 12V; 55W ? 1 (low) / 55W ? 2 (high)

Drivetrain

  • Clutch - Wet, multiplate with diaphragm spring
  • Clutch Operation - Mechanical; cable-actuated
  • Transmission Type - 6-speed
  • Primary Reduction - 1.717 (79/46)
  • Gear Ratios - 1; 2.286 (32/14), 2; 1.778 (32/18), 3; 1.500 (33/22), 4; 1.333 (32/24), 5; 1.214 (34/28), 6; 1.138 (33/29)
  • Final Reduction - 2.625 (42/16)
  • Final Drive - #530 O-ring sealed chain

Frame

  • Type - Diamond; aluminium composite twin-spar

Chassis

  • Dimensions (LxWxH) - 2,080 x 685 x 1,130mm
  • Wheelbase - 1,410mm
  • Caster Angle - 23° 18'
  • Trail - 96.3mm
  • Turning Radius - 3.2m
  • Seat Height - 820mm
  • Ground Clearance - 130mm
  • Kerb Weight - 210kg (F: 109kg; R: 101kg)
  • Max. Carrying Capacity - 180kg
  • Loaded Weight - 390kg

Suspension

  • Type - Front; 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm axle travel
  • Rear; Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 135mm axle travel

Wheels

  • Type - Front; Hollow-section triple-spoke cast aluminium
  • Rear; Hollow-section triple-spoke cast aluminium
  • Rim Size - Front; 17M/C x MT3.50
  • Rear; 17M/C x MT6.00
  • Tyre Size - Front; 120/70 ZR17M/C (58W)
  • Rear; 190/50 ZR17M/C (73W)
  • Tyre Pressure - Front; 250kPa
  • Rear; 290kPa

Brakes

  • Type - Front; 320 x 4.5mm dual hydraulic disc with 4-piston callipers, Combined ABS and sintered metal pads
  • Rear; 220 x 5mm hydraulic disc with single-piston calliper, Combined ABS and sintered metal pads

All specifications are provisional and subject to change without notice.
