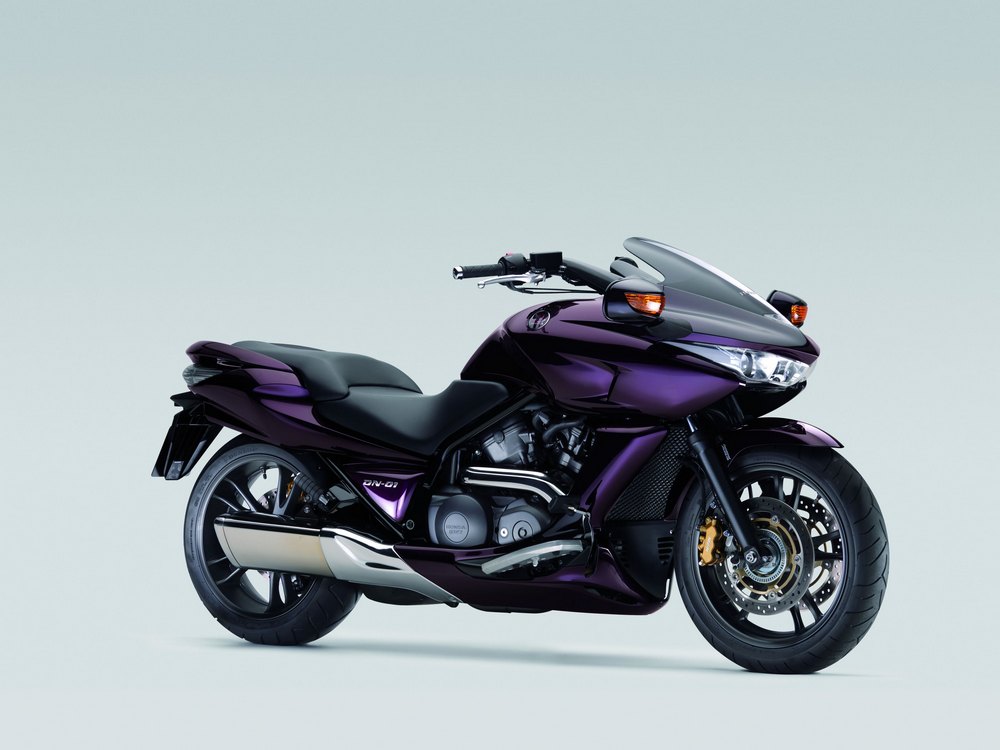

2009 Honda DN-01

2009 Honda DN-01

Introduction

All-new in 2008, the radical DN-01 is forging new directions in motorcycling, matching futuristic cruiser styling with the most advanced fully automatic transmission ever developed for a two-wheeled vehicle, the Human-Friendly Transmission (HFT).

A wide, low, comfortable seat (with spacious pillion accommodation) back-swept bars and wide footboards accentuate the relaxed riding position and touring capabilities. Weight is distributed evenly for unprecedented stability, especially at high speeds, while the geometry is tailor-made for pleasurable, responsive handling. Add Monoshock Pro-Arm rear suspension and impeccable braking, and you have a cool, confident control.

Every finely honed component benefits from Honda’s ingenuity, expertise and design heritage. The overall result is a motorcycle that looks stunning and performs with outstanding proficiency.

Key Features

  • High-quality, urban-organic styling with distinctive long-nose front cowl and short tail offers a relaxed and comfortable ride
  • Wide and low stepped seat offers relaxed riding position and easy reach to ground
  • Compact, liquid-cooled fuel-injected 680cc 8-valve V-twin with shaft drive
  • Infinitely variable automatic HFT (Human Friendly Transmission) offers powerful and easy ride, with automatic hydraulic clutch, push-button gear selection and switch-selectable mechanical neutral
  • Rigid steel pipe double-cradle frame features high rigidity and superior high-speed stability
  • Single-sided aluminium Pro-Arm swingarm with shaft drive and Monoshock rear suspension
  • Elegant 17" dual 5-spoke cast aluminum wheels mount wide, low-profile tyres
  • Smoothly responsive Combined-Antilock Brake System for confident braking control

Colours

  • Pearl Amethyst Purple
  • Graphite Black

Various accessories including:

  • Comfort
  • Decoration
  • Protection
  • Anti-Theft

Availability & Model Changes For 2009

  • Available: Now
  • Changes for 2009: No changes

Technical Specification

Engine

  • Type - Liquid-cooled 4-stroke 8-valve SOHC 52° V-twin
  • Displacement - 680cm3
  • Bore x Stroke - 81 x 66mm
  • Compression Ratio - 10 : 1
  • Max. Power Output - 45kW/7,500min-1 (95/1/EC)
  • Max. Torque - 64Nm/6,000min-1 (95/1/EC)
  • Idling Speed - 1,200min-1
  • Oil Capacity - 4 litres

Fuel System

  • Carburetion - PGM-FI electronic fuel injection
  • Throttle Bore - 40mm
  • Aircleaner - Viscous, cartridge-type mesh net filter
  • Fuel Tank Capacity - 15.1 litres (including 3-litre LCD-indicated reserve)

Electrical System

  • Ignition System - Fully transistorised electronic
  • Ignition Timing - 12° BTDC (idle) ~ 60° BTDC (5,500min-1)
  • Sparkplug Type - SIMR8A9 (NGK)
  • Starter - Electric
  • Battery Capacity - 12V/12AH
  • ACG Output - 450W
  • Headlight - 12V; 55W x 2 (low) / 55W x 1 (high)

Drivetrain

  • Clutch - HFT with internal hydraulic control
  • Clutch Operation - Automatic
  • Transmission Type - HFT (Continuously Variable Transmission)
  • Primary Reduction - 1.136 (75/66)
  • Variable Transmission Ratios - 3.000 ~ 1.000
  • Final Reduction - 1.400
  • Final Drive - Enclosed shaft

Frame

  • Type - Double-cradle; steel tube

Chassis

  • Dimensions (LxWxH) - 2,315 x 820 x 1,115mm
  • Wheelbase - 1,605mm
  • Caster Angle - 28° 30'
  • Trail - 114mm
  • Turning Radius - 3.2m
  • Seat Height - 690mm
  • Ground Clearance - 135mm
  • Kerb Weight - 270kg (F: 131kg; R: 139kg)
  • Max. Carrying Capacity - 186kg
  • Loaded Weight - 434kg (F: 165kg; R: 269kg)

Suspension

  • Type - Front; 41mm telescopic fork, 106mm axle travel
  • Rear; Single conventional dampers with 7-step adjustable spring preload, 120mm axle travel

Wheels

  • Type - Front; U-section twin 5-spoke cast aluminium
  • Rear; U-section twin 5-spoke cast aluminium
  • Rim Size - Front; 17M/C x MT3.50
  • Rear; 17M/C x MT6.00
  • Tyre Size - Front; 130/70ZR17M/C (62W)
  • Rear; 190/50ZR17M/C (73W)
  • Tyre Pressure - Front; 225kPa
  • Rear; 250kPa

Brakes

  • Type - Front; 296 x 4mm dual hydraulic disc with Combined 3-piston calipers, ABS and sintered metal pads
  • Rear; 276 x 6mm hydraulic disc with Combined dual-piston caliper, ABS and sintered metal pads

All specifications are provisional and subject to change without notice.
