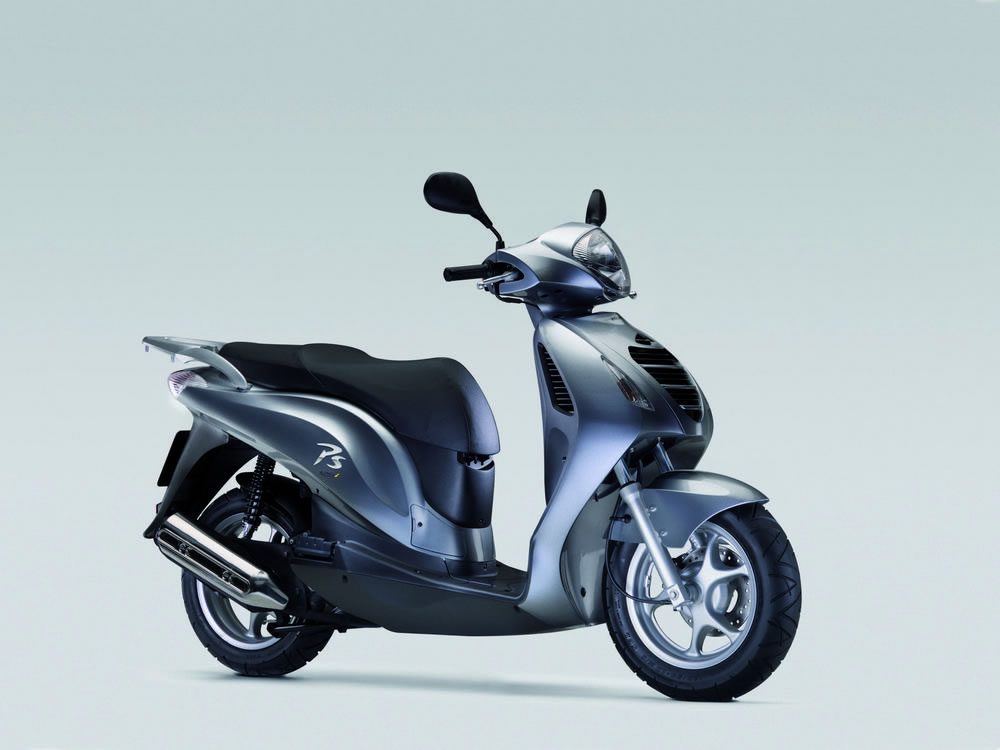

2009 Honda PS125i

2009 Honda PS125i

Introduction

Wherever the action is, you're sure to find the PS125i at its centre. Shining with classic good looks and brimming with carefree confidence, its youthful energy wastes no time in whizzing you across town, equipped with whatever you may need for your next appointment. The PS125i is powered by a reliable liquid-cooled engine which sets new standards in fuel economy and clean emissions while ensuring easy starting and a dependable supply of strong, responsive power. Handling is easy and assured, with compliant suspension providing a beautifully smooth ride. Its generous proportions and wide footboard and seat provide first-rate comfort and the roomy underseat compartment can accommodate an amazing quantity of shopping bags, sports gear, study notes and work essentials, not to mention a full-face helmet. The flat step-through footboard means easy mounting and a comfortable riding position. Plush suspension smoothes out any bumps on the road and its innovative Combined Brake System ensures balanced and confidence-inspiring stopping power.

A quick, compact and stylish way to get around the city, the PS125i is a smart choice for anyone who likes to get ahead and stay there.

Key Features

  • Modern, stylish form integrates a comfortably low contoured seat, a wide, flat floorboard for easy step-through seating, and plenty of comfortable legroom
  • Strong, dependable liquid-cooled 4-stroke engine with fully computerised fuel injection system provides quick starts, smooth operation, miserly fuel economy and ultra-low emissions
  • Honda’s innovative Combined disc brakes provide confident control for even less experienced riders
  • Carrying space includes a roomy underseat carrying compartment, handy glove box and a sturdy rear carrier, which can mount a large optional top box with no extra hardware required
  • Sporty version features two-tone striped bodywork with black wheels, front fork bottom-cases and rear carrier, and red stitching on its black seat

Colours

  • Pearl Cool White (with Black, Tribal stripe)
  • Interstellar Black Metallic
  • Quasar Silver Metallic
  • Quasar Silver Metallic with Black & Red Stripe (Sports Version)

Accessories

  • Top box (35L) pad
  • Windshield (with knuckle visors)
  • Windshield (without knuckle visors)
  • Top box (35L-KTF)
  • Top box (35L) inner bag
  • Outdoor cycle cover
  • Protective film
  • Scooter blanket
  • Scooter blanket XL

Availability & Model Changes For 2009

  • Available: Now
  • Changes for 2009: No changes

Technical Specification

Engine

  • Type - Liquid-cooled 4-stroke SOHC single
  • Displacement - 125cm3
  • Bore x Stroke - 52.4 x 57.8mm
  • Compression Ratio - 11 : 1
  • Max. Power Output - 10.1kW/9,000min-1 (95/1/EC)
  • Max. Torque - 11.5Nm/7,000min-1 (95/1/EC)
  • Idling Speed - 1,500min-1
  • Oil Capacity - 1 litre

Fuel System

  • Carburetion - PGM-FI electronic fuel injection
  • Throttle Bore - 26mm
  • Aircleaner - Dry; cartridge-type paper filter
  • Fuel Tank Capacity - 8 litres

Electrical System

  • Ignition System - Digital transistorised with electronic advance
  • Ignition Timing - 10° BTDC (idle) ~ 40° BTDC (8,500min-1)
  • Sparkplug Type - CR8EH-9 (NGK); U24FER9 (DENSO)
  • Starter - Electric
  • Battery Capacity - 12V/6AH
  • ACG Output - 300W
  • Headlight - 12V; 55W ? 1 (low) / 60W ? 1 (high)

Drivetrain

  • Clutch Type - Automatic; centrifugal
  • Transmission Type - V-Matic
  • Belt Converter Ratios - 2.640 ~ 0.820
  • Final Reduction - 10.109
  • Final Drive - V-belt

Frame

  • Type - Underbone; steel tube

Chassis

  • Dimensions (LxWxH) - 1,990 x 700 x 1,150mm
  • Wheelbase - 1,340mm
  • Caster Angle - 27° 30'
  • Trail - 83mm
  • Seat Height - 800mm
  • Ground Clearance - 125mm
  • Kerb Weight - 135kg (F: 54kg; R: 81kg)
  • Max. Carrying Capacity - 180kg
  • Loaded Weight - 285kg (F: 114.5kg; R: 170.5kg)

Suspension

  • Type - Front; 33mm telescopic fork, 89mm axle travel
  • Rear; Dual-damper unit swingarm, 83mm axle travel

Wheels

  • Type - Front; U-section 6-spoke cast aluminium
  • Rear; U-section 6-spoke cast aluminium
  • Rim Size - Front; 13M/C x MT2.75
  • Rear; 13M/C x MT3.50
  • Tyres - Front; 110/90–13M/C 56L
  • Rear; 130/70–13M/C 57L
  • Tyre Pressure - Front; 175kPa
  • Rear; 200kPa (with passenger: 225kPa)

Brakes

  • Type - Front; 220 x 4mm hydraulic disc with dual-piston caliper, drilled rotor and sintered metal pads
  • Rear; 130mm leading/trailing drum

All specifications are provisional and subject to change without notice
