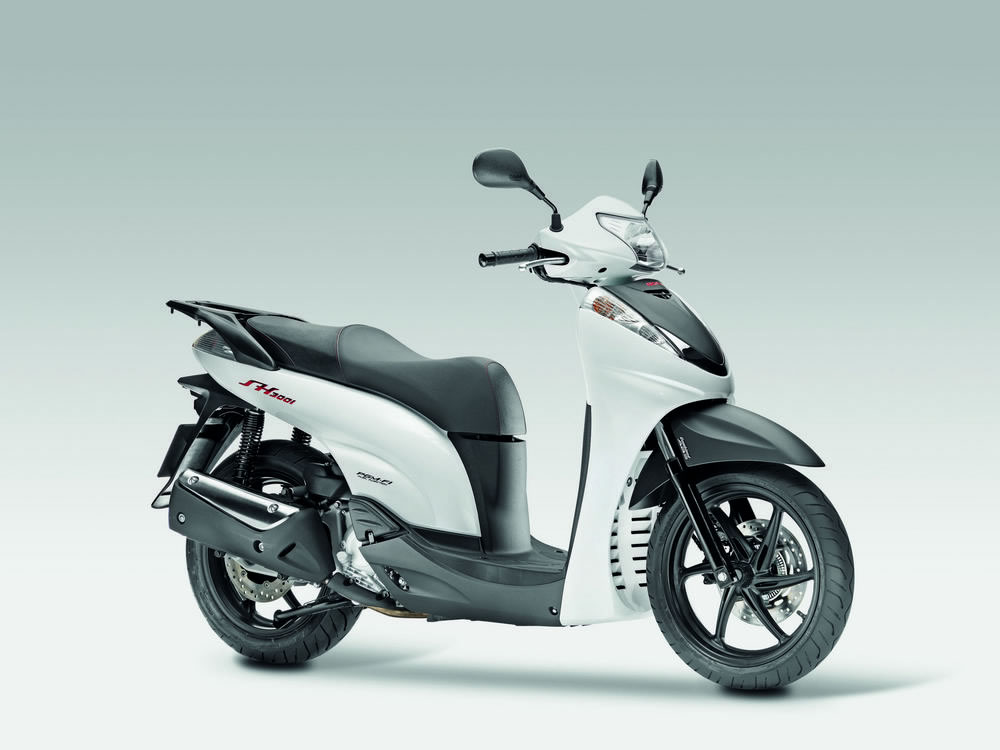

2009 Honda SH300i ABS

2009 Honda SH300i ABS

Introduction

The SH’s slim, curvaceous profile has become such a familiar sight that it’s hard to remember European streets without it! In spite of its compact proportions, the SH300i packs the punch of a sporting motorcycle with thrilling performance from its compact fuel-injected engine and deft, confidence-inspiring control to match. Powerful rushes of acceleration, thrilling performance and carefree ease of handling make it one of the most attractive commuters on two wheels. Its superior ride comfort is down to a beautifully contoured stepped seat that easily carries two, a roomy, flat step-through floorboard offering plenty of legroom, and large 16" aluminium wheels that provide responsive and reassuring control. Add ample carrying capacity and sleek, attractive lines that draw admiring glances wherever you go, and you can see why the SH300i has set the style and performance standards by which all large-format scooters are judged.

Need an elegant and energetic partner to share your enthusiasm for your busy, fun-packed schedule? The SH300i could be the one.

Key Features

  • Large step-through configuration with 16" wheels and roomy, flat floorboard offers confident control and plenty of legroom
  • Compact and powerful fuel-injected 4-stroke single-cylinder engine provides dynamic performance and the strongest acceleration in its class
  • HECS3 oxygen-sensing catalytic converter system minimises harmful emissions, ensuring full EURO-3 compliance
  • Specially designed frame and suspension systems ensure crisp, neutral handling and confident high-speed control on par with many sportsbikes
  • Combined disc brakes provide a smooth balance of performance for easy, controlled braking operation.
  • Advanced Combined-ABS offers the supremely confident control of Honda’s smoothly responsive Antilock Brake System

Colours

  • Quasar Silver Metallic
  • Pearl Nightstar Black
  • Velvet Red Metallic
  • Pearl Montana Blue

Accessories

  • Heated grip kit
  • Top box (35L) pad
  • Windshield (with knuckle visors)
  • Windshield (without knuckle visor)
  • Top box (35L; 35L w/ inner bag)
  • Outdoor cycle cover
  • Scooter blanket; blanket XL
  • Honda lock alarm

Availability & Model Changes For 2009

  • Available: Now
  • Changes for 2009: No changes

Technical Specification

Engine

  • Type - Liquid-cooled 4-stroke 4-valve SOHC single
  • Displacement - 279.1cm3
  • Bore x Stroke - 72 x 68.5mm
  • Compression Ratio - 10.5 : 1
  • Max. Power Output - 20kW/8,250min-1 (95/1/EC)
  • Max. Torque - 26Nm/6,000min-1 (95/1/EC)
  • Idling Speed - 1,500min-1
  • Oil Capacity - 1.7 litre

Fuel System

  • Carburetion - PGM-FI electronic fuel injection
  • Throttle Bore - 34mm
  • Aircleaner - Dry, cartridge-type paper filter
  • Fuel Tank Capacity - 9 litres

Electrical System

  • Ignition System - Digital transistorised with electronic advance
  • Ignition Timing - 10° BTDC (idle) ~ 28° BTDC (8,250min-1)
  • Sparkplug Type - LMAR8A-9 (NGK)
  • Starter - Electric
  • Battery Capacity - 12V/11AH
  • ACG Output - 368W
  • Headlight - 12V 55W ? 1 (low) / 60W ? 1 (high)

Drivetrain

  • Clutch Type - Automatic; centrifugal
  • Transmission Type - V-Matic
  • Belt Converter Ratios - 2.350 ~ 0.800
  • Final Reduction - 8.571
  • Final Drive - V-belt

Frame

  • Type - Underbone; steel tube

Chassis

  • Dimensions (LxWxH) - 2,100 x 730 x 1,220mm
  • Wheelbase - 1,420mm
  • Caster Angle - 27° 30'
  • Trail - 98mm
  • Seat Height - 785mm
  • Ground Clearance - 136mm
  • Kerb Weight - 169.1kg (F: 65.3kg; R: 103.8kg) *172kg (F: 68kg; R: 104kg)
  • Maximum Carrying Capacity - 180kg
  • Loaded Weight - 319kg (F: 101kg; R: 218kg) *322kg (F: 103kg; R: 219kg)

Suspension

  • Type - Front; 35mm telescopic fork, 102mm axle travel
  • Rear; Dual-damper unit swingarm, 95mm axle travel

Wheels

  • Type - Front; U-section 6-spoke cast aluminium
  • Rear; U-section 6-spoke cast aluminium
  • Rim Size - Front; 16 x MT2.75
  • Rear; 16 x MT3.50
  • Tyres - Front; 110/70–16 52P
  • Rear; 130/70–16 61P
  • Tyre Pressure - Front; 200kPa
  • Rear; 225kPa (with passenger:225kPa)

Brakes

  • Type - Front; 256mm x 4.5mm hydraulic disc with triple-piston caliper, drilled rotor (*ABS) and sintered metal pads
  • Rear; 256mm x 5mm hydraulic disc with single-piston caliper, drilled rotor (*ABS) and sintered metal pads

*ABS version

All specifications are provisional and subject to change without notice
