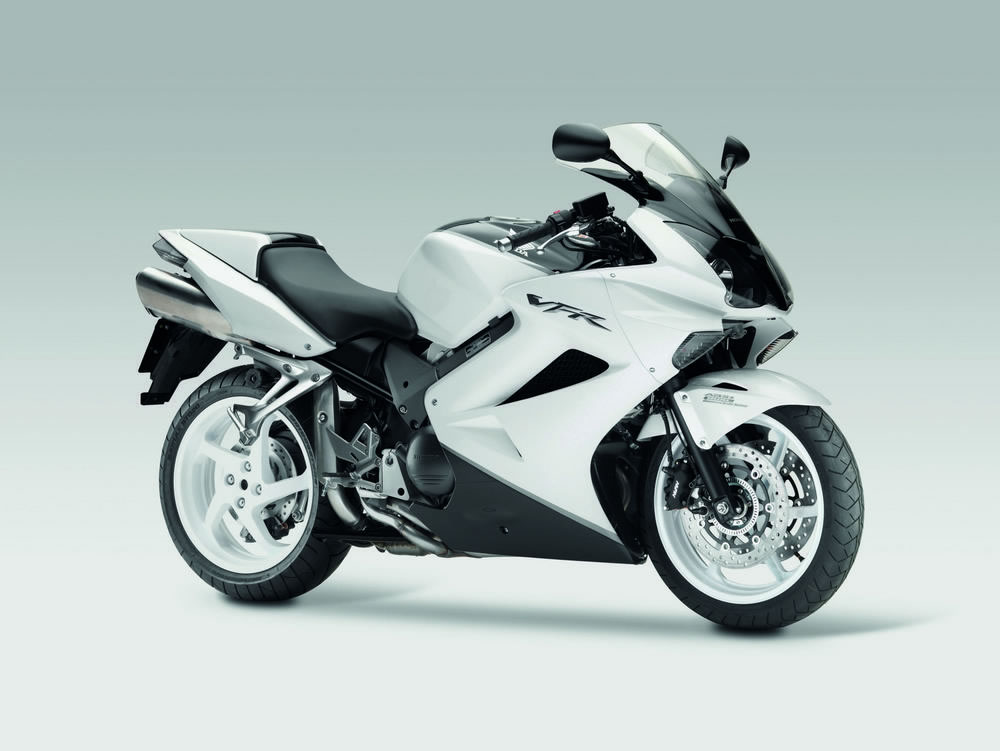

2009 Honda VFR800

Introduction

Highly evolved from a sports bike heritage, the VFR is possibly the most refined balance of explosive sports tourer performance, superb comfort and agile manoeuvrability on European roads today. It’s powered by a screaming fuel-injected engine whose 2-stage valve actuation system rewards every riding style with gratifying rushes of strong, accessible power. This considerable power is harnessed in a light-handling, receptive twin-spar aluminium frame. A 43mm HMAS cartridge-type front fork and sports-oriented Dual Combined Brake System contribute to Super Sports-class high-speed control. A Combined-ABS version is also available for extra confidence on any road. Rear suspension is smoothly compliant, with a single-sided cast aluminium Pro-Arm swingarm mounted directly to the rear of the engine cases and supported by a progressive Pro-Link rear suspension system. The low, contoured seat provides an easy reach to the ground and long-term touring comfort for rider and passenger.

The VFR represents blistering power, presented in a well-rounded and accessible package which has been winning fans for over two decades. This is a motorcycle that will enrich your life and broaden your horizons.

Key Features

• Unique fuel-injected V4-VTEC engine features 2-stage valve actuation system that effectively combines the strong low-end torque of 2-valve engines with the high-revving power of high-performance 4-valve mills
• HECS3 oxygen-sensing catalytic converter system minimises harmful exhaust gas emissions to ensure full EURO-3 compliance
• Lightweight and rigid twin-spar aluminium frame, single-sided Pro-Arm swingarm and HMAS cartridge-type front fork all contribute to the VFR’s sporty and responsive handling
• Sport-oriented Dual Combined Brake System enhances braking ease and control for smooth, unruffled stopping performance
• Deluxe ABS version features the peerless braking performance of Honda’s most advanced Antilock Brake System
• 22-litre tank capacity and powerful multi-reflector headlights promise long, pleasure-filled days whether on city streets or country roads
• Optional luggage system easily fitted for comfortable and capable touring enjoyment
• Three exciting new colour variations: Pearl Sunbeam White/Graphite Black (with Ross White Wheels), Sword Silver Metallic (with Gold Wheels), Candy Glory Red (with Gold Wheels)

Colours

• Pearl Sunbeam White / Graphite Black (with Ross White Wheels)
• Sword Silver Metallic
• Candy Glory Red

Various accessories including:

• Comfort
• Luggage
• Audio and Electronics
• Anti-Theft
• Decoration
• Protection

Availability & Model Changes For 2009

• Available: Now
• Changes for 2009: New colour

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 16-valve DOHC 90° V-4
• Displacement - 782cm3
• Bore x Stroke - 72 x 48mm
• Compression Ratio - 11.6 : 1
• Max. Power Output - 80kW/10,500min-1 (95/1/EC)
• Max. Torque - 80Nm/8,750min-1 (95/1/EC)
• Idling Speed - 1,200min-1
• Oil Capacity - 3.8 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 36mm
• Aircleaner - Oil-permeated, cartridge-type paper filter
• Fuel Tank Capacity - 22 litres

Electrical System

• Ignition System - Computer-controlled digital transistorised with electronic advance
• Ignition Timing - 15° BTDC (idle) ~ 36° BTDC (5,000min-1)
• Sparkplug Type - IMR9B-9H (NGK); VNH27Z (DENSO)
• Starter - Electric
• Battery Capacity - 12V/10AH
• ACG Output - 497W
• Headlights - 12V; 55W ? 2 (low) / 55W ? 2 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Hydraulic
• Transmission Type - 6-speed
• Primary Reduction -1.939 (64/33)
• Gear Ratios - 1; 2.846 (37/13), 2; 2.062 (33/16), 3; 1.578 (30/19), 4; 1.291 (31/24), 5; 1.111 (30/27), 6; 0.965 (28/29)
• Final Reduction - 2.687 (43/16)
• Final Drive - O-ring sealed chain

Frame

• Type - Diamond; triple-box-section aluminium twin-spar

Chassis

• Dimensions (LxWxH) - 2,120 x 735 x 1,195mm
• Wheelbase - 1,460mm
• Caster Angle - 25° 30'
• Trail - 95mm
• Turning Radius - 3.2m
• Seat Height - 805mm
• Ground Clearance - 125mm
• Kerb Weight - 244kg (F: 117kg; R: 127kg) *249kg (F: 119kg; R: 130kg)
• Max. Carrying Capacity - 195kg
• Loaded Weight - 394kg (F: 151kg; R: 243kg)

Suspension

• Type - Front; 41mm HMAS cartridge-type telescopic fork with stepless preload adjustment, 108mm axle travel
• Rear; Pro-Link with gas-charged HMAS damper, 7-step (*stepless remote-controlled hydraulic) preload and stepless rebound damping adjustment, 120mm axle travel

Wheels

• Type - Front; U-section 6-spoke cast aluminium
• Rear; U-section 5-spoke cast aluminium
• Rim Size - Front; 17M/C x MT3.50
• Rear; 17M/C x MT5.50
• Tyre Size - Front; 120/70 ZR17M/C (58W)
• Rear; 180/55 ZR17M/C (73W)
• Tyre Pressure - Front; 250kPa
• Rear; 290kPa

Brakes

• Type - Front; 296 x 4.5mm dual floating hydraulic disc with Combined 3-piston calipers, (*ABS) and sintered metal pads
• Rear; 256 x 6mm hydraulic disc with Combined 3-piston caliper, (*ABS) and sintered metal pads

*ABS version

All specifications are provisional and subject to change without notice.
