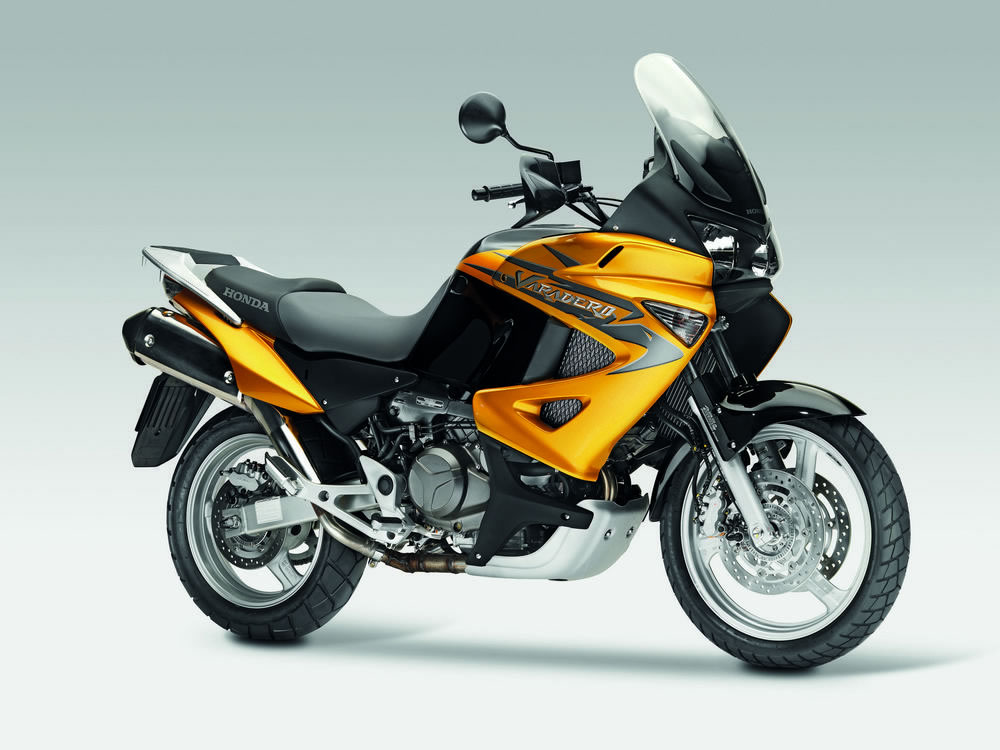

2009 Honda XL1000V VARADERO / ABS

Introduction

Load up your dreams of distant lands and head for the horizon. Honda’s big Adventure Touring flagship, the XL1000V Varadero makes every journey a welcome escape, whether you’re aiming to reach the highest peak by the end of the day or simply beat the traffic for a stress-free commute. Powered by a strong reliable V-twin engine, and boasting a comfortably contoured seat and a wide windscreen, it offers a superbly comfortable ride for you and a passenger.The handling is smooth and nimble and the long-travel suspension accommodating enough to negotiate unpredictable off-road surfaces as well as city streets. An ABS version offers the effortlessly responsive brake control provided by Honda’s advanced Dual Combined Antilock Brake System. Its imposing, angular bodywork, two-tone graphics and focused, gleaming contours exude an air of confidence that matches its long experience, exhilarating performance capabilities and outstanding reputation for reliability.

The ever-eager Varadero is happy to tackle any riding situation, and always ready for a change of scenery. All you need to do is to relax and take in the view.

Key Features

• High-performance fuel-injected DOHC 8-valve V-twin engine delivers an inspiring rush of acceleration
• HECS3 oxygen-sensing catalytic exhaust gas converter system minimises emissions of harmful exhaust gases to ensure full compliance with strict EURO-3 emissions regulations
• Rigid frame and long-travel suspension systems tackle the twisties like a sportsbike
• Smoothly responsive Dual Combined Brakes enhance braking ease and control
• ABS version also available, offering the confident operation of Honda’s most advanced motorcycle Antilock Brake System
• Optional luggage system provides big carrying capacity while making your packing as easy as clip on and go

Additional Features

• Optional ABS

Colours

• Barley Yellow Metallic
• Chevalier Silver Metallic
• Pearl Concourse Black

Accessories

Various accessories including:

• Comfort
• Luggage
• Decoration
• Protection
• Audio and Electronics
• Anti-Theft

Availability & Model Changes For 2009

• Available: Now
• Changes for 2009: New colour

Technical Specification

Engine

• Type - Liquid-cooled 4-stroke 8-valve DOHC 90° V- twin
• Displacement - 996cm3
• Bore x Stroke - 98 x 66mm
• Compression Ratio - 9.8 : 1
• Max. Power Output - 69kW/7,500min-1 (95/1/EC)
• Max. Torque - 98Nm/6,000min-1 (95/1/EC)
• Idling Speed - 1,300min-1
• Oil Capacity - 4.1 litres

Fuel System

• Carburetion - PGM-FI electronic fuel injection
• Throttle Bore - 42mm
• Aircleaner - Viscous, cartridge-type paper filter
• Fuel Tank Capacity - 25 litres (including 4-litre warning light
  reserve)

Electrical System

• Ignition System - Computer-controlled digital transistorised with
  electronic advance
• Ignition Timing - 15° BTDC (idle) ~ 45° BTDC (4,500min-1)
• Sparkplug Type - IJR8B9 (NGK)
• Starter - Electric
• Battery Capacity - 12V/18AH
• ACG Output - 434W
• Headlight - 12V 60W ? 2 (low) / 55W ? 2 (high)

Drivetrain

• Clutch - Wet, multiplate with coil springs
• Clutch Operation - Mechanical; cable-actuated
• Transmission Type - 6-speed
• Primary Reduction - 1.682 (44/74)
• Gear Ratios - 1; 2.571 (14/36), 2; 1.684 (19/32), 3; 1.292 (24/31), 4; 1.100 (30/33), 5; 0.969 (32/31), 6; 0.853 (34/29)
• Final Reduction - 2.938 (16/47)
• Final Drive -O-ring sealed chain

Frame

• Type - Diamond; steel tube

Chassis

• Dimensions (LxWxH) - 2,300 x 930 x 1,465mm
• Wheelbase - 1,560mm
• Caster Angle - 27° 30'
• Trail - 110mm
• Turning Radius - 2.58m
• Seat Height - 838mm
• Ground Clearance - 181mm
• Kerb Weight - 268.7kg (F: 126.3kg; R: 142.4kg) *276.7kg (F: 130kg; R: 146.7kg)
• Max. Carrying Capacity - 201kg
• Loaded Weight - 415kg (F: 152kg; R: 263kg) *422kg (F: 156kg; R: 266kg)

Suspension

• Front - 43mm telescopic fork, 155mm axle travel
• Rear - Pro-Link damper with 40-step spring preload (*and stepless rebound damping) adjustment, 145mm axle travel

Wheels

• Type - Front; Hollow-section triple-spoke cast aluminium
• Rear; Hollow-section triple-spoke cast aluminium
• Rim Size - Front; 19M/C ? MT2.50
• Rear; 17M/C ? MT4.00
• Tyre Size - Front; 110/80 R19M/C (59H)
• Rear; 150/70 R17M/C (69H)
• Tyre Pressure - Front; 250kPa
• Rear; 250kPa (with passenger: 280kPa)

Brakes

• Front - 296 x 4.5mm dual hydraulic disc with Combined 3-piston callipers (*ABS) and sintered metal pads
• Rear - 256 x 5mm hydraulic disc with Combined 3-piston calliper (*ABS) and sintered metal pads

* Combined-ABS version

All specifications are provisional and subject to change without notice.
