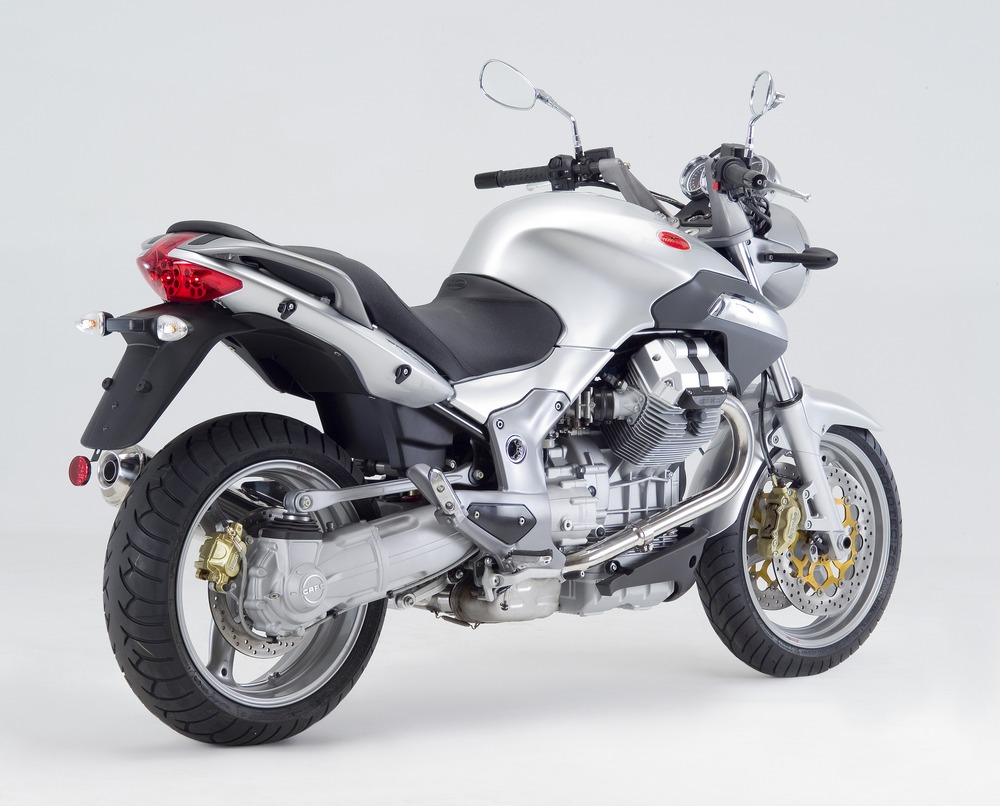

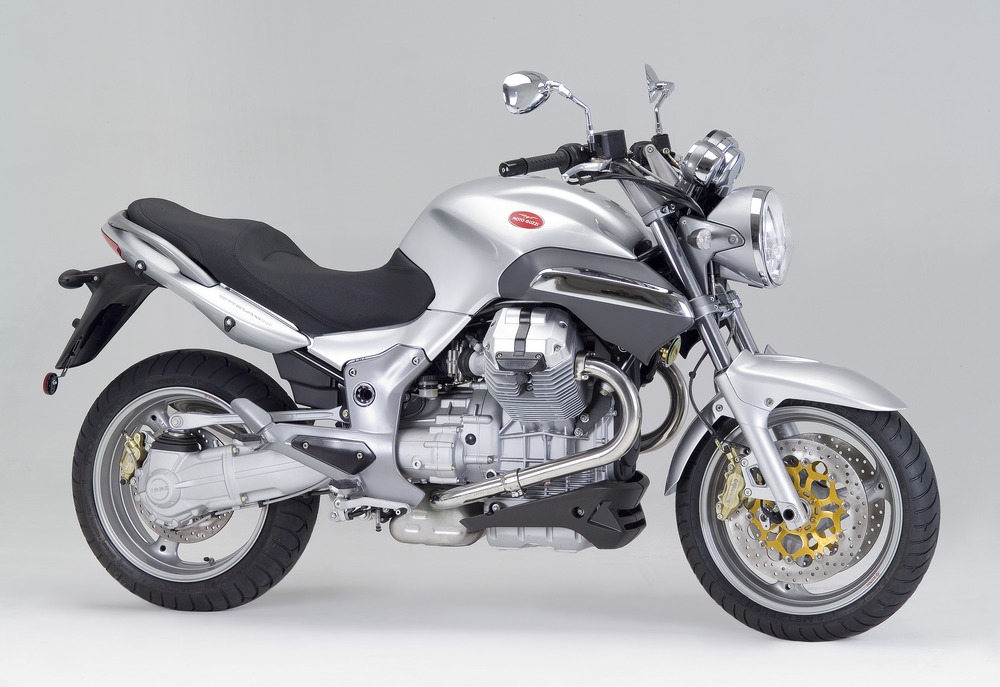

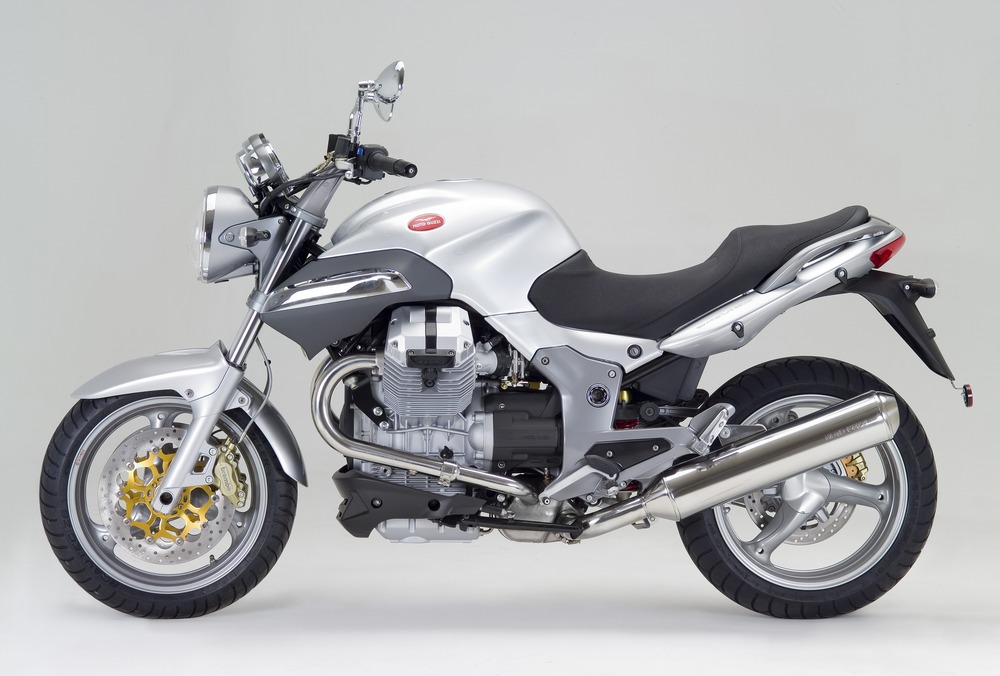

2009 Moto Guzzi Breva 850

Moto Guzzi Breva 850Moto Guzzi BrevaMoto Guzzi 850 Breva2009 Breva 850

Technical Specifications

Engine

  • Type : 90° V-Twin, 4 stroke
  • Cooling system : air cooled
  • Displacement : 877 cc
  • Bore and stroke : 92 x 66 mm
  • Compression ratio : 9.8 : 1
  • Valve timing : intake open 24° B.T.D.C. intake close 52° A.B.D.C. exhaust open 54° B.B.D.C. exhaust close 22° A.T.D.C.
  • Maximum Power : 53 kW at 7600 rpm
  • Maximum torque : 66 Nm at 7000 rpm
  • Fuel system : Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 throttle bodies of 45 mm, Lambda sensor, stepper motor idle control
  • Starting : electric Ignition : inductive discharge, digitally controlled, electronic twin spark ignition
  • Exhaust system : stainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor. Homologation : Euro 3

Transmission

  • Gearbox : 6 speed
  • Internal ratios : 1^ 17/38 = 1 : 2.235 : 2^ 20/34 = 1 : 1.700 : 3^ 23/31 = 1 : 1.347 : 4^ 26/29 = 1 : 1.115 : 5^ 31/30 = 1 : 0.967 : 6^ 29/25 = 1 : 0.862
  • Lubrication : splash
  • Primary drive : helical gears, ratio 23/36=1 :1.565
  • Final drive : CA.R.C. Compact Reactive Shaft Drive; double universal joint with floating bevel gear, ratio 12/44 = 1:3.666
  • Clutch : dual disc dry

Chassis

  • Frame : double cradle, in high tensile strengh tubular steel
  • Wheelbase : 1,495 mm
  • Trail : 120 mm
  • Steering head angle : 25,30°
  • Steering angle : 32°
  • Front suspension : telescopic hydraulic fork with Ø 45 mm, preload adjustable
  • Front wheel travel : 120 mm
  • Rear suspension : single arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load (hydraulic)
  • Rear wheel travel : 140 mm
  • Front brake : twin Ø 320 mm stainless steel floating discs, four piston calipers
  • Rear brake : single Ø 282 mm steel disc, 2 piston caliper
  • Wheels : three spokes light alloy wheels, gravity casting
  • Front wheel : 3.50” x 17”
  • Rear wheel : 5.50” x 17”
  • Front tyre : 120/70 ZR17”
  • Rear tyre : 180/55 ZR17”

Electrical Equipment

  • Voltage : 12 V
  • Battery : 12 V – 18 Ah
  • Alternator : 12 V – 540 W

Dimensions

  • Length : 2,195 mm
  • Width : 870 mm
  • Height : 1,125 mm
  • Seat height : 800 mm
  • Ground clearance : 185 mm
  • Dry weight : 231 kg
  • Fuel tank capacity : 23 litre
  • Reserve : 4 litre
