2009 Moto Guzzi Griso 8V Special Edition

Moto Guzzi Griso 8V Special Edition

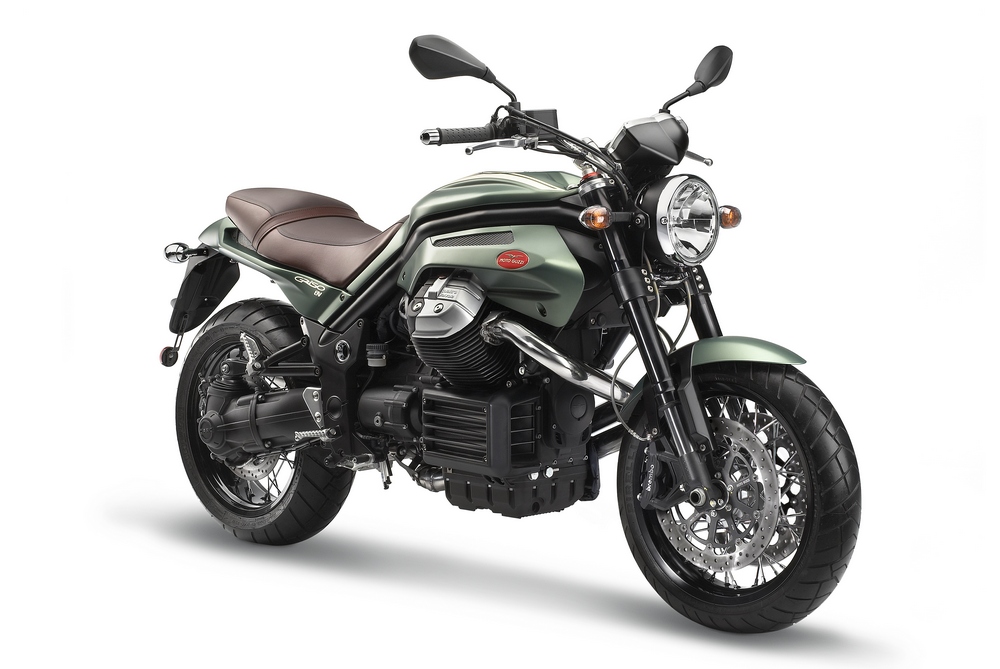

The Griso 8V SE is a Special Edition machine for collectors from Moto Guzzi who designed this version especially for the most demanding enthusiasts. This bike can be recognised immediately from its “Tenni” colour scheme, a beautiful shade of satinised green that enhances the sweeping lines of the frame and the unmistakeable architecture of the engine. The level of finish on the Griso 8V SE will more than satisfy the most demanding enthusiast with features that include a superb stitched leather saddle, beautiful BER spoked wheels shod with Pirelli Scorpion intermediate tyres not to mention the refined decorative colour-coordinated logos of the bike’s initials. The modern transverse V 90 twin-cylinder “Quattrovalvole” engine puts out about 110CV at only 7500 rpm and power delivery from the Griso 8V SE is silky smooth.

On the open road the rider really can come to appreciate a frame that keeps all that horsepower under control. The secret lies in the high-tensile steel frame with twin upper supports whose design owes little to aesthetics and much to sophisticated engineering concepts that provide exceptional rigidity under moments of extreme torsional stress. The frame geometry had been carefully calculated to provide stability with the steering angle set at 26° and rake at 108 mm.

The wheelbase measures 1544 mm and the Griso 8V SE is surprisingly manoeuvrable, even lightning fast in changes of direction. These handling characteristics are due to the low centre of gravity and a rock solid off-set steering head that provides an immediate response to pressure on the handlebars. Taking the perfect line through a corner becomes second nature. The front end is glued to the road thanks to upside-down forks from racing stock. The 43 mm forks are adjustable for rebound and compression. Other details include the fabulous new Brembo brake system made up of P4/34 radial calipers that act on floating 320mm discs. A Boge progressive suspension unit is fitted to the rear and this too had three classic settings.

Technical Data

Engine

  • Type :Four-stroke V 90 twin
  • Cooling :Air and oil cooled with independent cooling pump
  • Capacity :1,151cc
  • Bore and stroke :95 x 81.2 mm
  • Compression ratio :11 : 1
  • Timing diagram :Intake valve opening 36° before upper TDC. (play 1 mm) Intake valve closing 62° after lower TDC.
  • Exhaust valve opening 58° before lower TDC.
  • Exhaust valve closing 30° after upper TDC. measured with rocker arm/valve play of 1.5 mm
  • Maximum power output :Over 80.8 kW (110 CV) at 7,500 rpm
  • Max Torque :Over 108 Nm at 6,400 rpm
  • Fuel supply/ignition :Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe.
  • Starter :Electric Spark plugs :NGK PMR8B (Long Life)
  • Exhaust system :Stainless steel two-into-one 3-way catalysed with Lambda probe. Homologation :Euro 3

Transmission

  • Gearbox :6 speed
  • Gear ratios :1st 17/38 = 1 : 2.235 :2nd 20/34 = 1 : 1.700 :3rd 23/31 = 1 : 1.348 :4th 26/29 = 1 : 1.115 :5th 31/30 = 1 : 0.968 :6th 29/25 = 1 : 0.862
  • Lubrication :Oil bath
  • Primary drive :Helicoidal gears, ratio 26/35 = 1 : 1.346
  • Final drive :CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666
  • Clutch :Single plate with integrated flexible couplings

Frame

  • Frame :High tensile steel tubular twin cradle
  • Wheelbase :1,554 mm
  • Rake :108 mm
  • Steering rake :26.30°
  • Steering angle. :34°
  • Front suspension :Upside down Ø 43 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
  • Front wheel travel :120 mm
  • Rear suspension :Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
  • Rear wheel travel :110 mm
  • Front brakes :Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons.
  • Rear brakes :Single 282 mm fixed stainless steel disc, floating caliper with 2 parallel pistons.
  • Wheels :Tubeless with spokes
  • Front wheel :3.50” x 17”
  • Rear wheel :5.50” x 17”
  • Front tyre :120/70 ZR17”
  • Rear tyre :180/55 ZR17”

Electrics

  • Voltage :12 V Battery :12 V – 18 Ah
  • Alternator :12 V – 550 W

Dimensions

  • Length :2,260 mm
  • Width :830 mm
  • Height :1,070 mm
  • Saddle height :800 mm
  • Minimum ground clearance :185 mm
  • Dry weight :222 kg
  • Fuel tank capacity :16.7 litres
  • Reserve :3.3 litres

Technical data specified above for the Moto Guzzi Griso 8V S.E. may be changed without prior notice.
