2009 Moto Guzzi Stelvio

Moto Guzzi StelvioStelvio2009 Stelvio

The new Moto Guzzi Stelvio completes the range renovation programme that, in little over 24 months, has seen this legendary marque regain all its past splendour. What was missing and what the public were impatiently waiting for now is now available in the form of a complete motorcycle.

This is the Italian answer to the demand for a multi-purpose maxi-enduro machine that can adapt to all conditions and restore the pleasure of riding. A machine with these characteristics could not have been a descendant of previous models but was created as part of a totally new project. It is the direct result of a long and painstaking research and development programme that involved countless riders of all types and widely differing conditions of use. Moto Guzzi undertook this challenge with one particular key element already decided upon: the new “Quattrovalvole” engine.

Docile and powerful at low and medium revs, this twin-cylinder, single raised cam transverse unit is housed in a slender tubular frame that appears so fundamental as to make even specialists in off-roading look again. Riders will appreciate the absorption characteristics of the 50 mm upside-down forks and the traction offered by the combined action of the rear single swingarm and the progressive rear suspension system, not to mention the superb CA.R.C (reactive shaft drive) final drive. If the fact that the Stelvio is very much at its ease on deceptive surfaces with little adhesion is down to the superb frame design, its decreased weight and smooth power delivery; its vocation as a tourer is highlighted in the many little details that were specifically included to make daily use sheer pleasure.

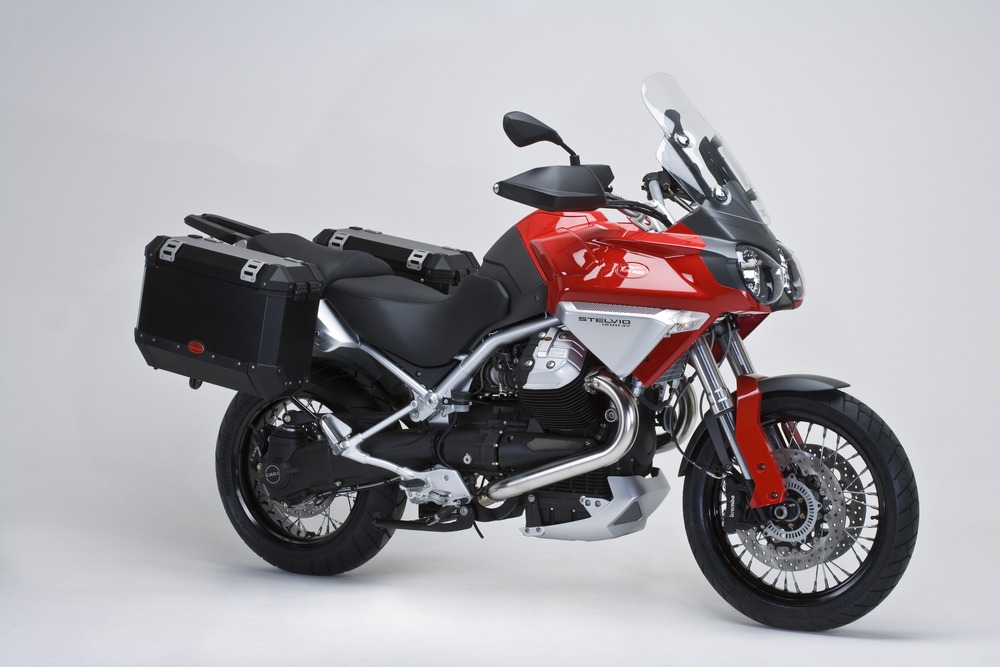

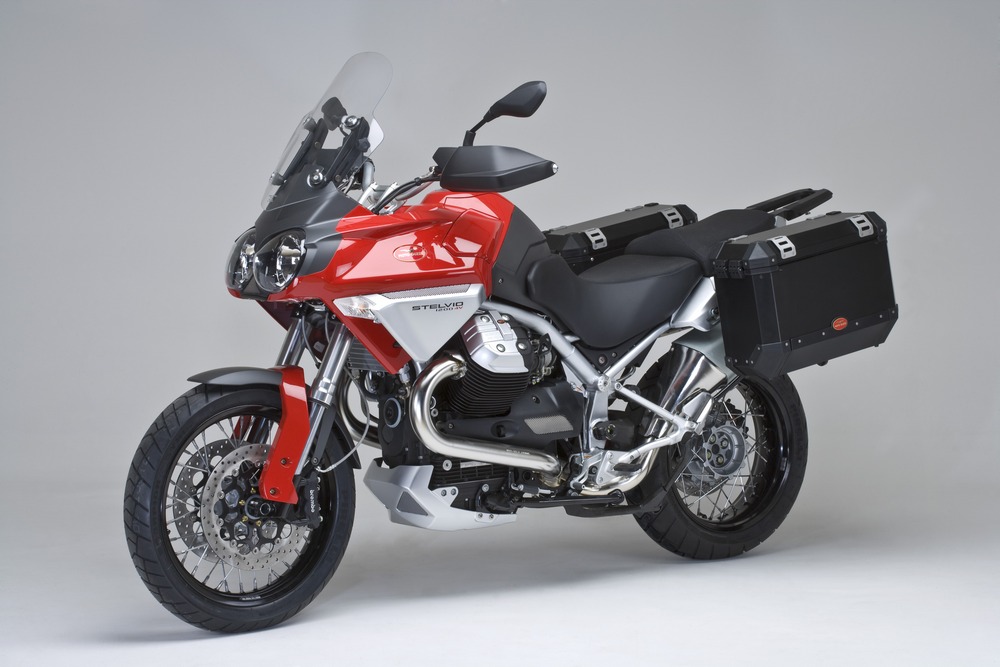

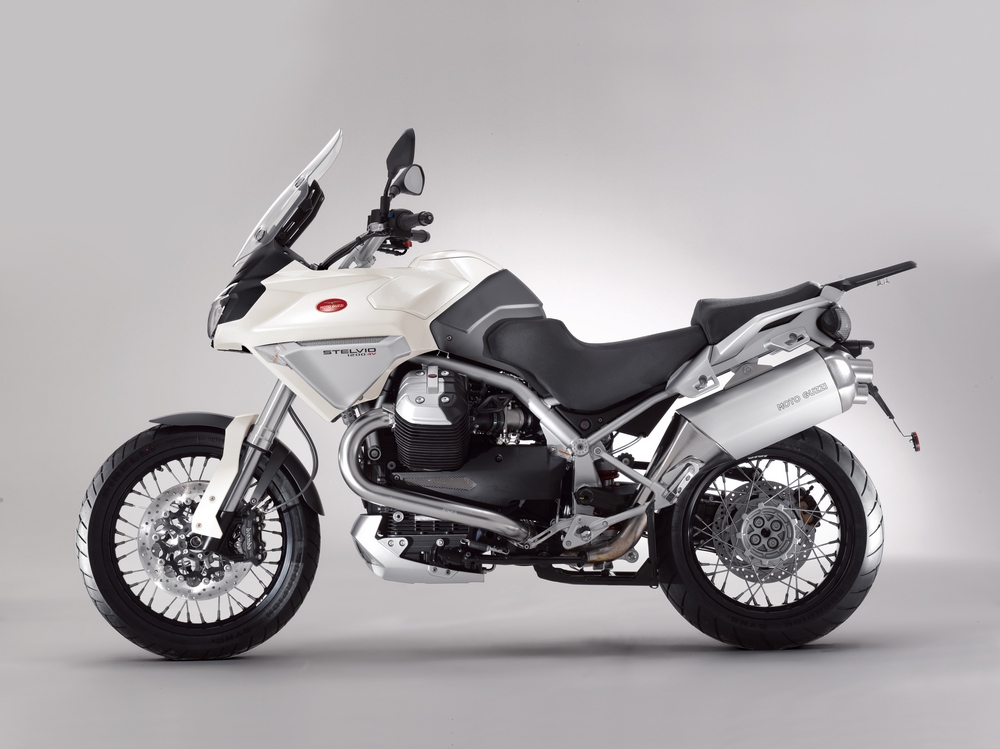

The windscreen and saddle can be adjusted, side bags come as standard and the pillion passenger’s part of the saddle is more than comfortable in both size and shape. A small storage compartment that can be unlocked from the handlebars has been positioned between the screen and tank. It is the little details that make all the difference and make riding this machine such a pleasure. With over 100 CV on tap, the machine offers superb performance while the sound it makes says it all. It goes without saying that safety is at the forefront with powerful radial brake calipers housing twin parallel pistons. Besides this Moto Guzzi Maxi-Enduro’s performance and technology, there is another element that sets it apart from the competition: its beauty. The Moto Guzzi Stelvio captivates with its front end looks and slender profile. The aggressive Guzzi red or sophisticated white colour schemes catch the eye and are set off by the anodised tubeless spoked wheels.

Engine

  • Type : 90° V-twin engine, 4-stroke
  • Cooling : through air and oil and an independent cooling pump
  • Engine capacity : 1,151 cc
  • Bore and stroke : 95 x 81.2 mm
  • Compression ratio : 11: 1
  • Timing system diagram : intake valve opening 36° BTDC (1-mm checking clearance) intake valve closing 62° ABDC exhaust valve opening 58° BBDC exhaust valve closing 30° ATDC measured with a 1.5 mm rocker arms/valve control clearance
  • Maximum power : 77 kW (105CV) at 7,500 rpm
  • Maximum torque : above 108 Nm at 6,400 rpm
  • Fuel supply / Ignition : Multipoint sequential electronic ignition, Magneti Marelli IAW5A phased, alfa-n system; two Ø 50mm throttle bodies, Weber IWP 189 injectors, lambda probe.
  • Start-up : Electric
  • Spark plugs : NGK PMR8B (Long Life)
  • Exhaust system : stainless steel, 2-in-1 type, three-way catalytic converter with lambda probe Type approval : Euro 3

Transmission

  • Gearbox : 6 gears
  • Gear ratio values : 1st 17/38 = 1 : 2.235 : 2nd 20/34 = 1 : 1.700 : 3rd 23/31 = 1 : 1.348 : 4th 26/29 = 1 : 1.115 : 5th 31/30 = 1 : 0.968 : 6th 29/25 = 1 : 0.862
  • Primary transmission : with helical teeth, ratio 26/35 = 1: 1.346
  • Final drive : Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666
  • Clutch : single-disc with integrated anti-vibration buffer

Chassis

  • Chassis : tubular in high-strength steel with integrated engine
  • Wheelbase : 1,535 mm
  • Trail : 125 mm
  • Headstock angle : 27°
  • Steering angle : 34°
  • Front suspension : fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping) with radially-mounted brake calliper
  • Front wheel travel : 170 mm
  • Rear suspension : single arm with rising-rate leverage, single shock absorber with hydraulic rebound damping adjustment and knob spring preloading set screw.
  • Rear wheel travel : 155 mm
  • Front brake : double stainless steel floating disc, Ø 320 mm, radial calipers with 4 opposed pistons
  • Rear brake : fixed stainless steel disc, Ø 282 mm, floating caliper with 2 parallel pistons
  • Wheels : Tubeless with spokes
  • Front rim : 2.50” x 19”
  • Rear rim : 5.50” x 17”
  • Front tyre : 110/80 R19”
  • Rear tyre : 180/55 R17”

Electrical System

  • System voltage : 12 V
  • Battery : 12 V – 18 Ah
  • Alternator : 12 V – 550 W

Dimensions

  • Length : 2250 mm
  • Width : 1025 mm
  • Height : 1475 mm (windshield high position)
  • Saddle height : 840 mm
  • Minimum height from ground : 210 mm
  • Dry weight : 214 kg
  • Kerb weight. : 251 kg
  • Fuel tank capacity : 18 litres
  • Reserve : 4.5 litres
