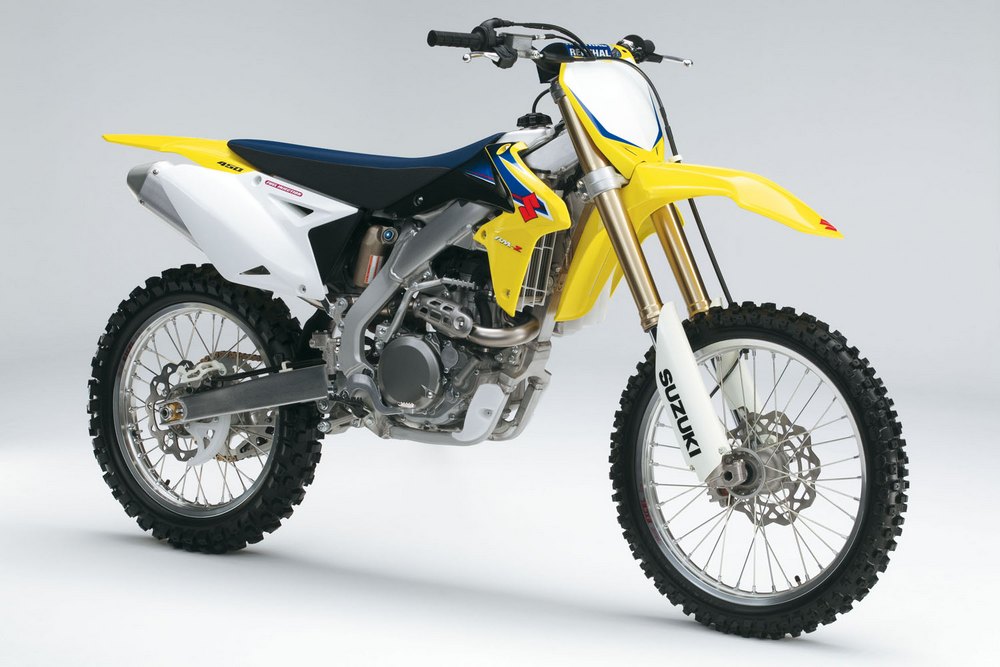

2009 Suzuki RM-Z450 K9
Dimensions and Dry Mass
Overall length..................................................
2,185 mm (86.0 in.)
Overall width..................................................
830 mm (32.7 in.)
Overall height..................................................1,260
mm (50.0 in.)
Wheelbase................................................……1,480
mm (58.3 in.)
Ground clearance..............................................350
mm (13.8 in.)
Seat height................................................…….955
mm (37.6 in.)
Curb mass................................................……..112
kg (247 lbs.)
Engine
Engine type................................................……..4-stroke,
liquid-cooled, DOHC
Bore................................................……………..96.0
mm
Stroke................................................……………62.1
mm
Displacement ................................................….449
cm3 (cc)
Compression ratio...............................................12.8:1
Fuel system................................................……..KEIHIN
FI 43mm
Lubrication system...............................................Suzuki
Advanced Sump System
Drivetrain
Clutch. ...........................................................….Wet
multi-plate type
Transmission ......................................................5-speed
constant mesh
Primary reduction ratio.......................................2.625
(63/24)
Gear ratios low...................................................1.800
(27/15)
2nd..................................................………..........1.471
(25/17)
3rd..................................................………..........1.235
(21/17)
4th....................................................………........1.050
(21/20)
5th....................................................……….........0.909
(20/22)
Final reduction ratio............................................3.846
(50/13)
Chassis
Front suspension…………
SHOWA 47mm telescopic forks, pneumatic/coil spring,
oil damped
Rear suspension…………
Swingarm, link type, SHOWA piggyback-reservoir shock
Caster.............................…...............................25°30'
Trail..............................................……..............111
mm (4.4 in.)
Front brake........................................................Disc
Rear brake.........................................................Disc
Front tyre size....................................................80/100-21
Rear tyre size....................................................110/90-19
Capacities
Fuel tank capacity 6.2 L (1.6 US gal.)
Pricing and Benefits
Suggested retail price: £4,799
Colours: Champion Yellow No.2 / 019 (GY8)
Warranty: 6 month warranty
|
