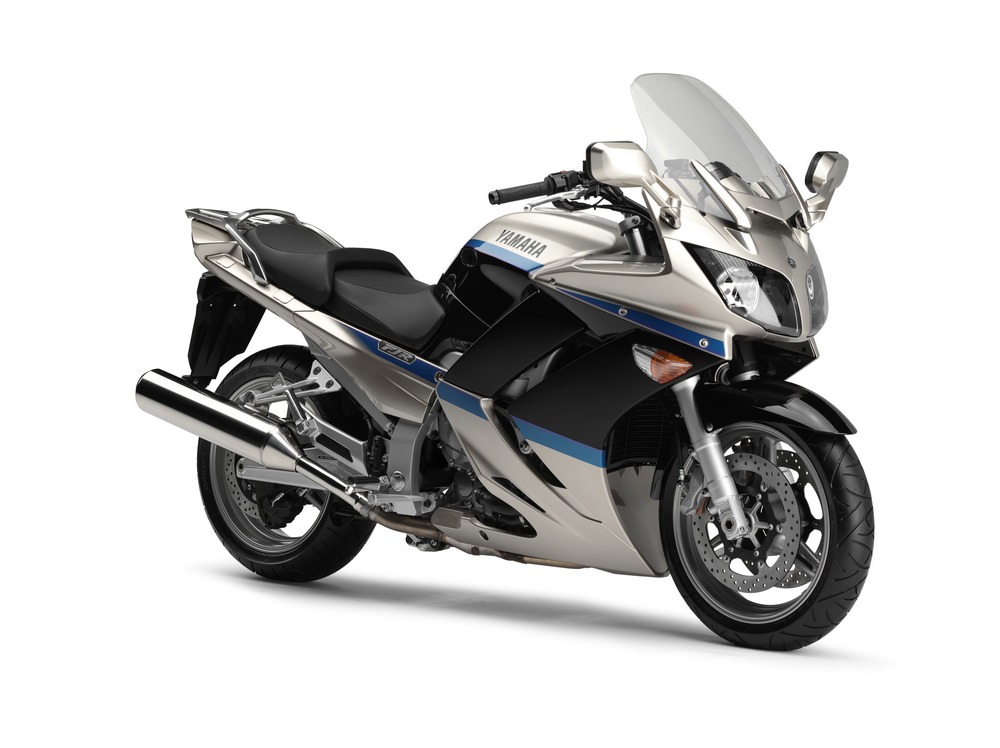

2009 Yamaha FJR1300 AS

2009 Yamaha FJR1300 ASYamaha FJR1300 AS2009 FJR1300 ASFJR1300 AS

Technical Specification

Engine

  • Engine Type - Liquid-cooled, 4-stroke, forward-inclined parallel 4-cylinder, DOHC
  • Displacement - 1,298 cc
  • Bore x stroke - 79.0 x 66.2 mm
  • Compression Ratio - 10.8:1
  • Max. Power - 105.5 kW (143.4 PS) @ 8,000 rpm
  • Max. Torque - 134.4 Nm (13.7 kg-m) @ 7,000 rpm
  • Lubrication system - Wet sump
  • Fuel supply system - Electronic Fuel Injection
  • Clutch type - Wet, multiple-disc
  • Ignition system - TCI
  • Starter system - Electric
  • Transmission system - Constant mesh, 5-speed
  • Final transmission system - Shaft
  • Primary reduction ratio - 75/48 (1.563)
  • Secondary reduction ratio - 35/37 x 21/27 x 33/9 (2.698)
  • Gear ratio, 1st gear - 43/17 (2.529)
  • Gear ratio, 2nd gear - 39/22 (1.773)
  • Gear ratio, 3rd gear - 31/23 (1.348)
  • Gear ratio, 4th gear - 28/26 (1.077)
  • Gear ratio, 5th gear - 26/28 (0.929)

Chassis

  • Frame - Aluminium, diamond shaped
  • Front suspension - Telescopic forks, Ø 48 mm
  • Front wheel travel - 135 mm
  • Rear suspension - Swingarm (link suspension)
  • Rear wheel travel - 125 mm
  • Caster angle - 26º
  • Trail - 109 mm
  • Front brake - Dual discs, Ø 320 mm
  • Rear brake - Single disc, Ø 282 mm
  • Front tyre - 120/70 ZR17M/C (58W)
  • Rear tyre - 180/55 ZR17M/C (73W)

Dimensions

  • Overall length - 2,230 mm
  • Overall width - 750 mm
  • Overall height (screen on lowest position) - 1,315 mm
  • Overall height (screen on highest position) - 1,450 mm
  • Seat height - 805 mm
  • Wheelbase - 1,545 mm
  • Min. ground clearance - 130 mm
  • Wet weight (including full oil and fuel tank) - 295 kg
  • Fuel capacity - 25 litres
  • Oil capacity - 4.9 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
