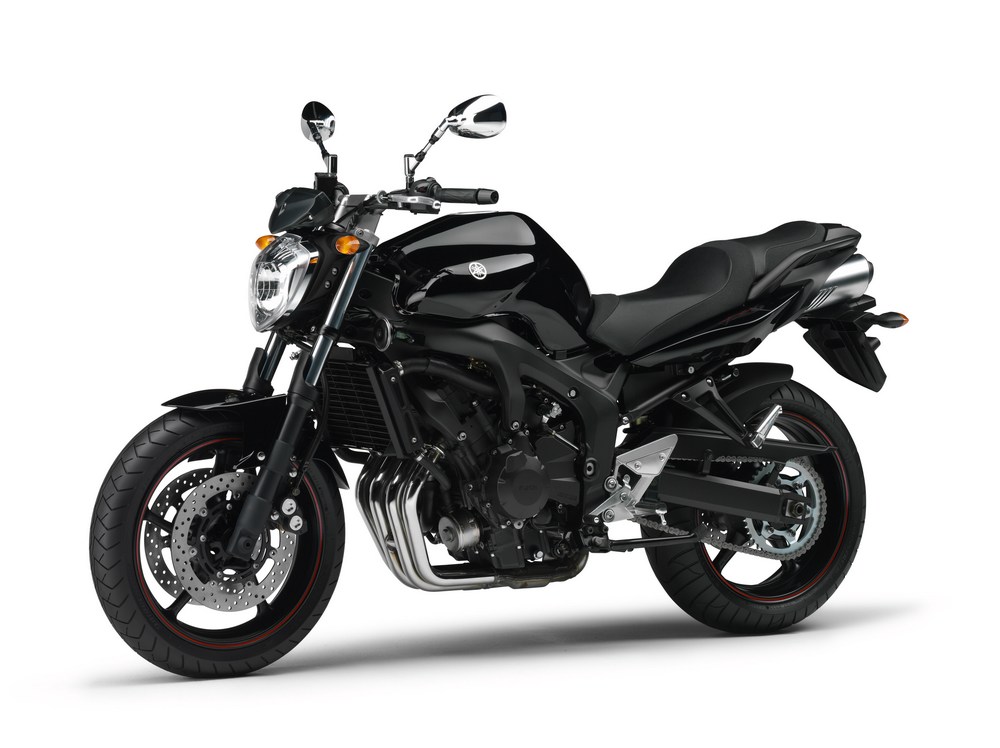

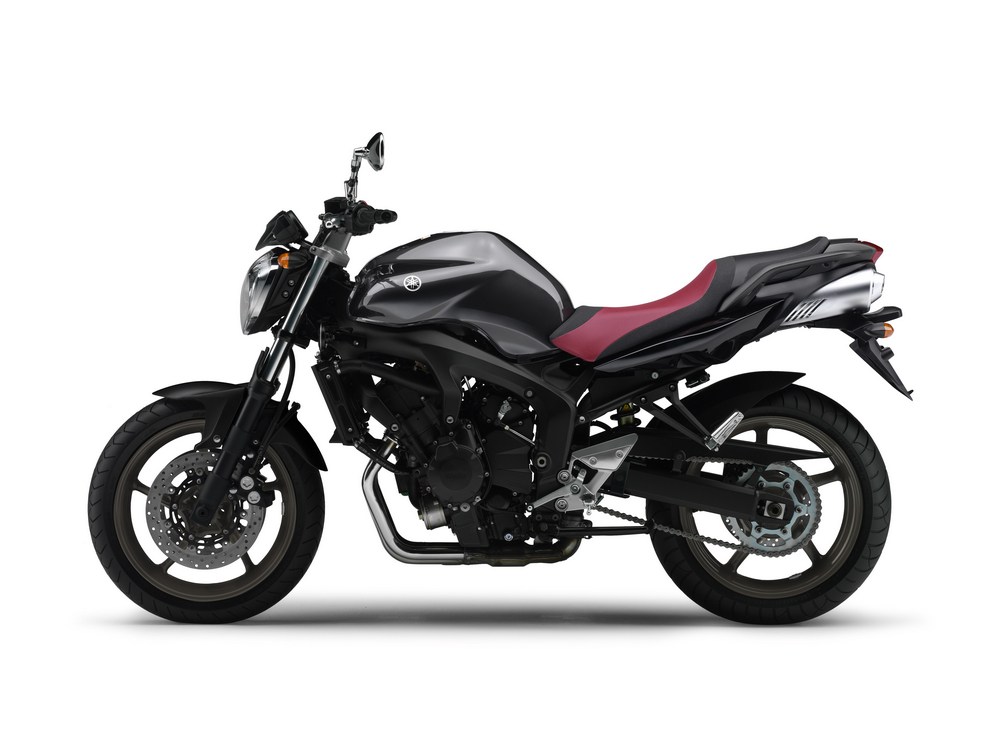

2009 Yamaha FZ6 S2

2009 Yamaha FZ6 S2Yamaha FZ6 S2FZ6 S2

Technical Specification

Engine

  • Type - Liquid-cooled, 4-stroke, forward-inclined parallel 4-cylinder, DOHC
  • Displacement - 600 cc
  • Bore x stroke - 65.5 x 44.5 mm
  • Compression ratio - 12.2:1
  • Max. Power - 72.0 kW (98 PS) @12,000 rpm
  • Max. Torque - 63.1 Nm (6.4 kg-m) @ 10,000 rpm
  • Lubrication system - Wet sump
  • Fuel supply system - Fuel Injection
  • Clutch type - Wet, multiple-disc
  • Ignition system - TCI (digital)
  • Starter system - Electric
  • Transmission system - Constant mesh, 6-speed
  • Final transmission system - Chain drive
  • Primary reduction ratio - 86/44 (1.955)
  • Secondary reduction ratio - 46/16 (2.875)
  • Gear ratio, 1st gear - 37/13 (2.846)
  • Gear ratio, 2nd gear - 37/19 (1.947)
  • Gear ratio, 3rd gear - 28/18 (1.556)
  • Gear ratio, 4th gear - 32/24 (1.333)
  • Gear ratio, 5th gear - 25/21 (1.190)
  • Gear ratio, 6th gear - 26/24 (1.083)

Chassis

  • Frame - Aluminium, diamond shaped
  • Front suspension - Telescopic forks
  • Front wheel travel - 130 mm
  • Rear suspension - Swingarm (monocross)
  • Rear wheel travel - 130 mm
  • Caster angle - 25º
  • Trail - 97.5 mm
  • Front brake - Dual discs, Ø 298 mm
  • Rear brake - Single disc, Ø 245 mm
  • Front tyre - 120/70 ZR17M/C (58W)
  • Rear tyre - 180/55 ZR17M/C (73W)

Dimensions

  • Overall length - 2,095 mm
  • Overall width - 775 mm
  • Overall height - 1,085 mm
  • Seat height - 795 mm
  • Wheelbase - 1,440 mm
  • Min. ground clearance - 145 mm
  • Wet weight (including full oil and fuel tank) - 201 kg
  • Fuel capacity - 19.4 litres
  • Oil capacity - 3.4 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
