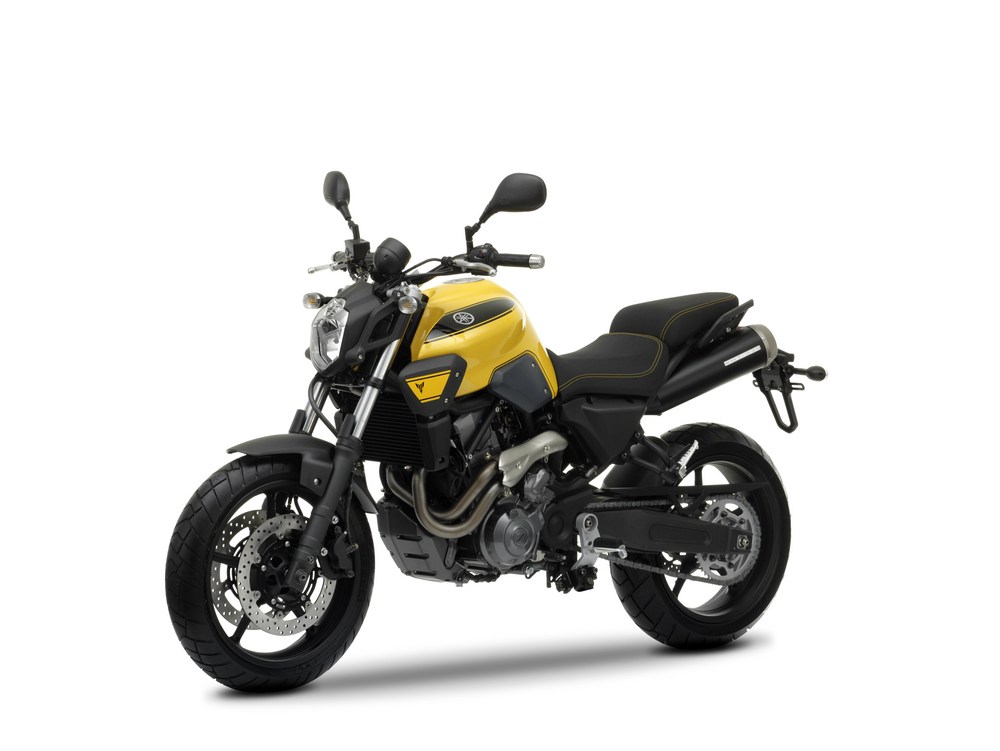

2009 Yamaha MT-03

2009 Yamaha MT-03Yamaha MT-03

Technical Specifications

Engine

  • Type - Liquid-cooled, 4-stroke, single cylinder, 4-valves, SOHC
  • Displacement - 660 cc
  • Bore x stroke - 100.0 x 84.0 mm
  • Compression ratio - 10.0:1
  • Max. Power - 35.3 kW (48 PS) @ 6,250 rpm
  • Max. Torque - 56.2 Nm (5.73 kg-m) @ 5,500 rpm
  • Lubrication system - Dry sump
  • Fuel supply system - Fuel Injection
  • Clutch type - Wet, multiple-disc
  • Ignition system - TCI
  • Starter system - Electric
  • Transmission system - Constant mesh, 5 speed
  • Final transmission system - Chain
  • Primary reduction ratio - 2.080
  • Secondary reduction ratio - 3.130
  • Gear ratio, 1st gear - 2.500
  • Gear ratio, 2nd gear - 1.625
  • Gear ratio, 3rd gear - 1.150
  • Gear ratio, 4th gear - 0.909
  • Gear ratio, 5th gear - 0.769

Chassis

  • Frame - Steel tube truss diamond
  • Front suspension - Telescopic fork
  • Front wheel travel - 130 mm
  • Rear suspension - Swingarm
  • Rear wheel travel - 120 mm
  • Caster angle - 26°
  • Trail - 97 mm
  • Front brake - Dual discs, Ø 298 mm
  • Rear brake - Single disc, Ø 245 mm
  • Front tyre - 120/70-17
  • Rear tyre - 160/60-17

Dimensions

  • Overall length - 2,070 mm
  • Overall width - 860 mm
  • Overall height - 1,115 mm
  • Seat height - 805 mm
  • Wheelbase - 1,420 mm
  • Min. ground clearance - 200 mm
  • Wet weight (including full oil and fuel tank) - 192.4 kg
  • Fuel capacity - 15 litres
  • Oil capacity - 3.4 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
