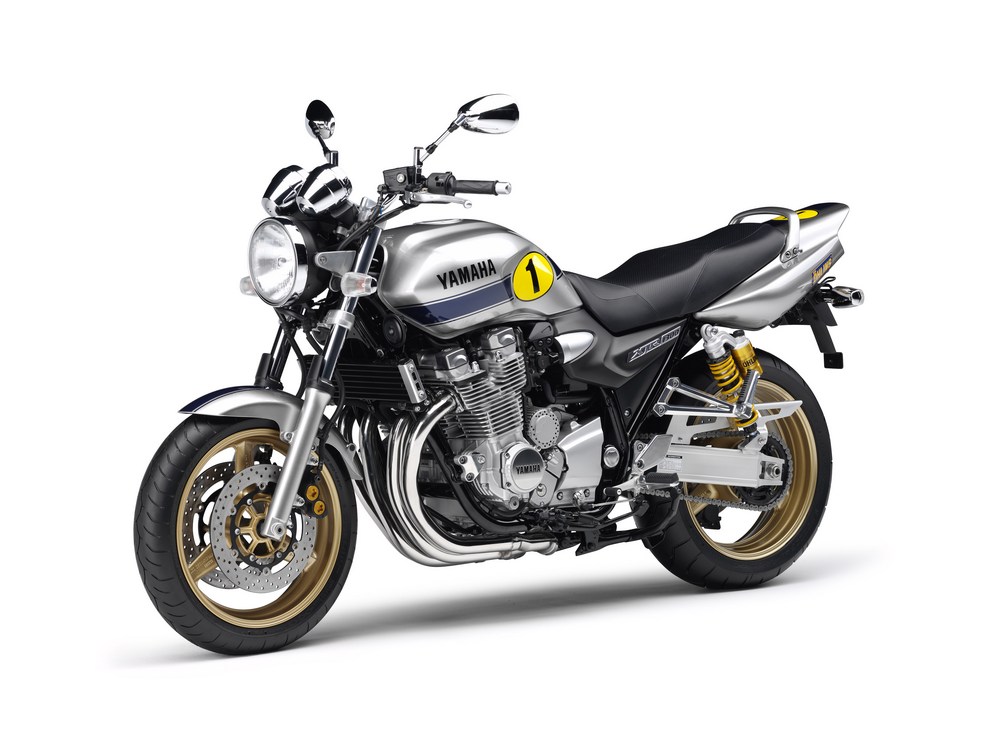

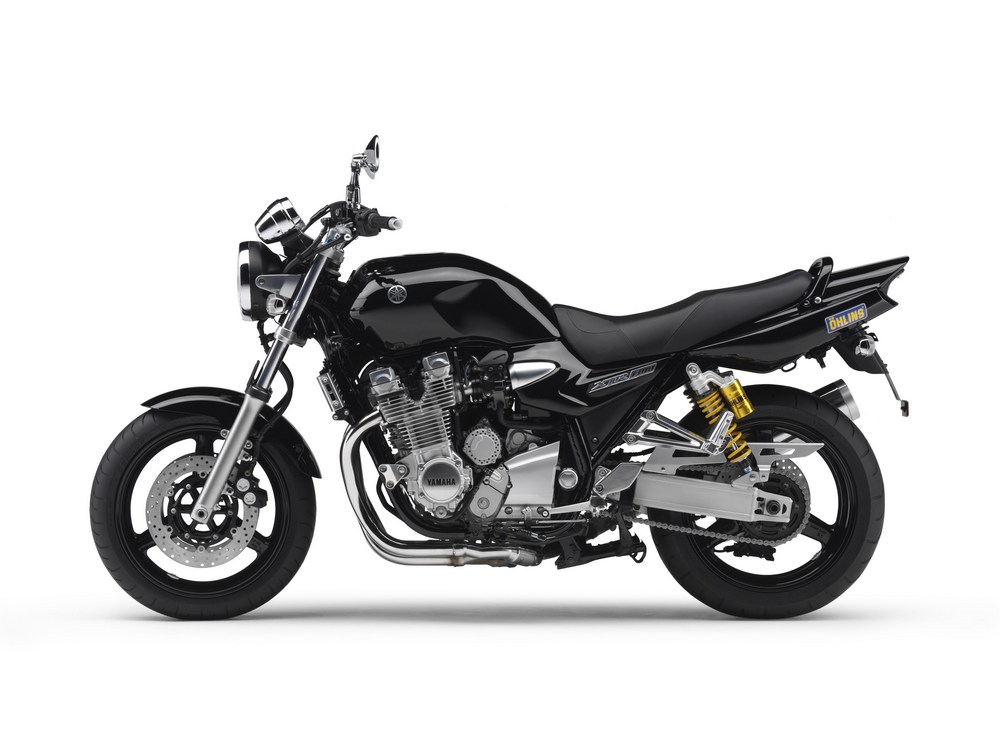

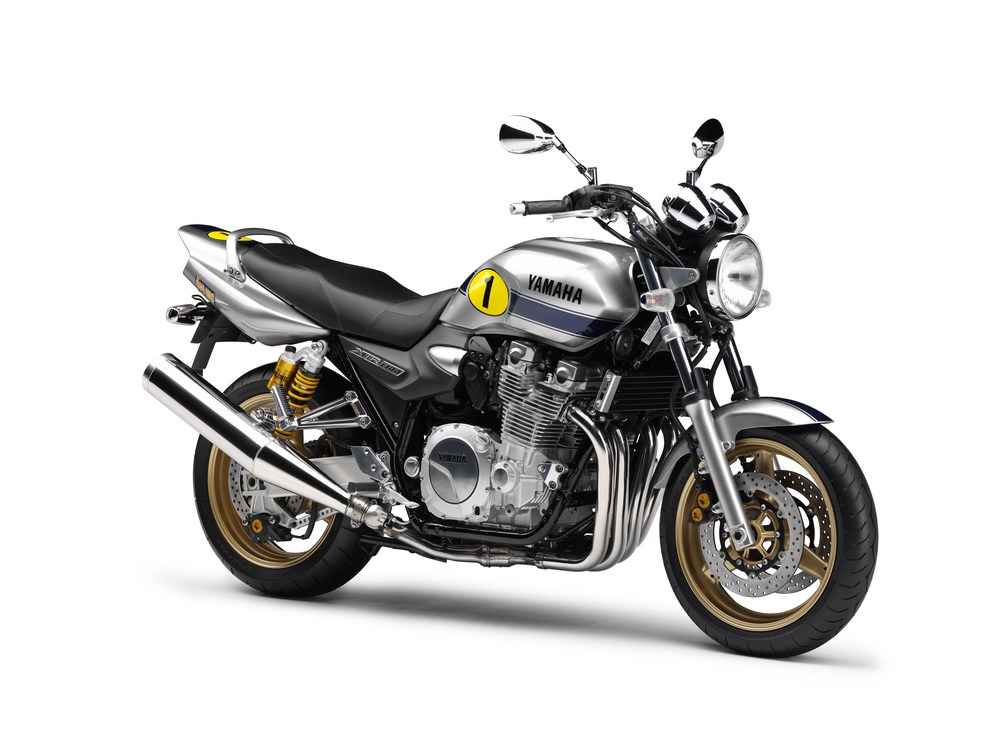

2009 Yamaha XJR1300

2009 Yamaha XJR1300 Yamaha XJR1300 2009 XJR1300

Technical Specifications

Engine

  • Type - Air-cooled, 4-stroke, forward-inclined parallel 4-cylinder, 4-valves, DOHC
  • Displacement - 1,251 cc
  • Bore x stroke - 79.0 x 63.8 mm
  • Compression ratio - 9.7:1
  • Max. Power - 71.9 kW (98 PS) @ 8,000 rpm
  • Max. Torque - 108.4 Nm (11.1 kg-m) @ 6,000 rpm
  • Lubrication system - Wet sump
  • Fuel supply system - Fuel Injection
  • Clutch type - Wet, multiple-disc coil spring
  • Ignition system - TCI
  • Starter system - Electric
  • Transmission system - Constant mesh, 5-speed
  • Final transmission system - Chain
  • Primary reduction ratio - 98/56 (1.750)
  • Secondary reduction ratio - 38/17 (2.235)
  • Gear ratio, 1st gear - 40/14 (2.857)
  • Gear ratio, 2nd gear - 36/18 (2.000)
  • Gear ratio, 3rd gear - 33/21 (1.571)
  • Gear ratio, 4th gear - 31/24 (1.292)
  • Gear ratio,, 5th gear - 29/26 (1.115)

Chassis

  • Frame - Steel double cradle
  • Front suspension - Telescopic forks
  • Front wheel travel - 130 mm
  • Rear suspension - Swingarm
  • Rear wheel travel - 120 mm
  • Caster angle - 25º 30"
  • Trail - 100 mm
  • Front brake - Dual discs, Ø 298 mm
  • Rear brake - Single disc, Ø 267 mm
  • Front tyre - 120/70 ZR17M/C (58W)
  • Rear tyre - 180/55 ZR17M/C (73W)

Dimensions

  • Overall length - 2,175 mm
  • Overall width - 765 mm
  • Overall height - 1,115 mm
  • Seat height - 795 mm
  • Wheelbase - 1,500 mm
  • Min. ground clearance - 125 mm
  • Wet weight (including full oil and fuel tank) - 245 kg
  • Fuel capacity - 21 litres
  • Oil capacity - 4.2 litres

Specification are subject to change without notice, in accordance with national regulation and legislations
